TL2.0 Woodburning Stove
Dry Seasoned Wood Only! Save These Instructions 3-90-08560

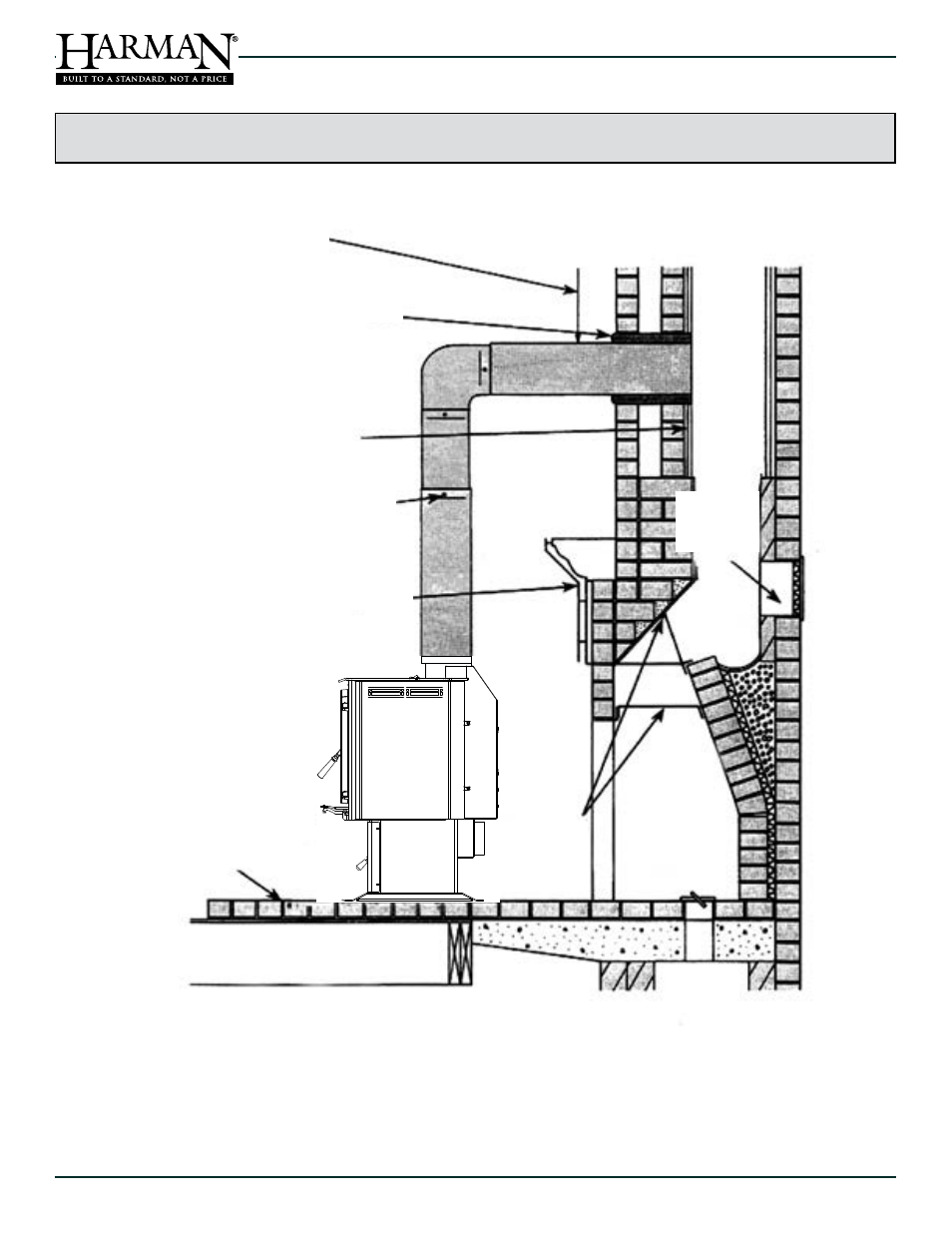

Minimum Clearance
to unprotected Ceil-
ing 16"
Chimney Connector
sealed at thimble
flue Liner with Re-
quired air space
Three sheet Metal
screws per joint of
Chimney Connector
Mantel and Trim Pro-
tection
* floor Protection in accordance
with solid fuel appliance Listing
airtight
insulated
Clean-out
Chimney breach fireplace Conversion with non-Combustible wall
damper
Closed and
sealed with
non-Combus-
tible material.
Combustible floor
floor Protection*
The Chimney Connector shall Not Pass Through an attic or Roof space, Closet
or similar Concealed space, a floor or Ceiling.
