16. Replace the bracket cover on the back of the computer.

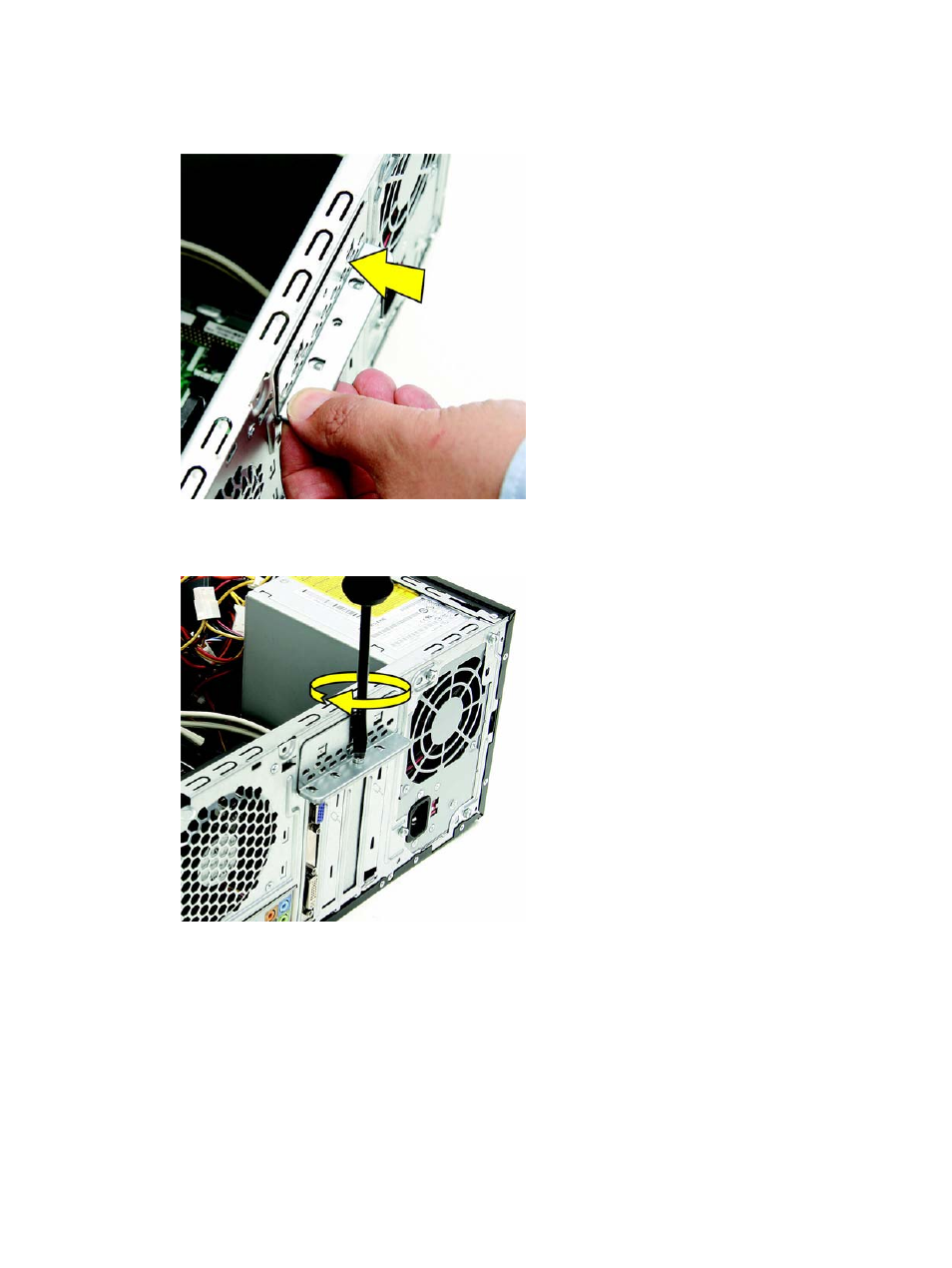

Figure 2-23 Replacing the bracket cover
17. Replace the screw to secure the bracket to the back of the computer.
Figure 2-24 Replacing the bracket screw
18. Connect external cables to the installed card, if needed. Connect internal cables to the system
board, if needed.
19. Reconfigure the computer, if necessary. Refer to the Computer Setup (F10) Utility Guide for
instructions on using Computer Setup.
20 Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
