DIVA T/A ISDN Modem User’s Guide 10
ISDN Jack
Phone
Fax
Desktop computer
А
Б В Г Д
Termination Switch available
on S/T models for Australia only
A/C adapter
ISDN
Phone 1 Phone 2 Serial
Reset On
Off
100
Å

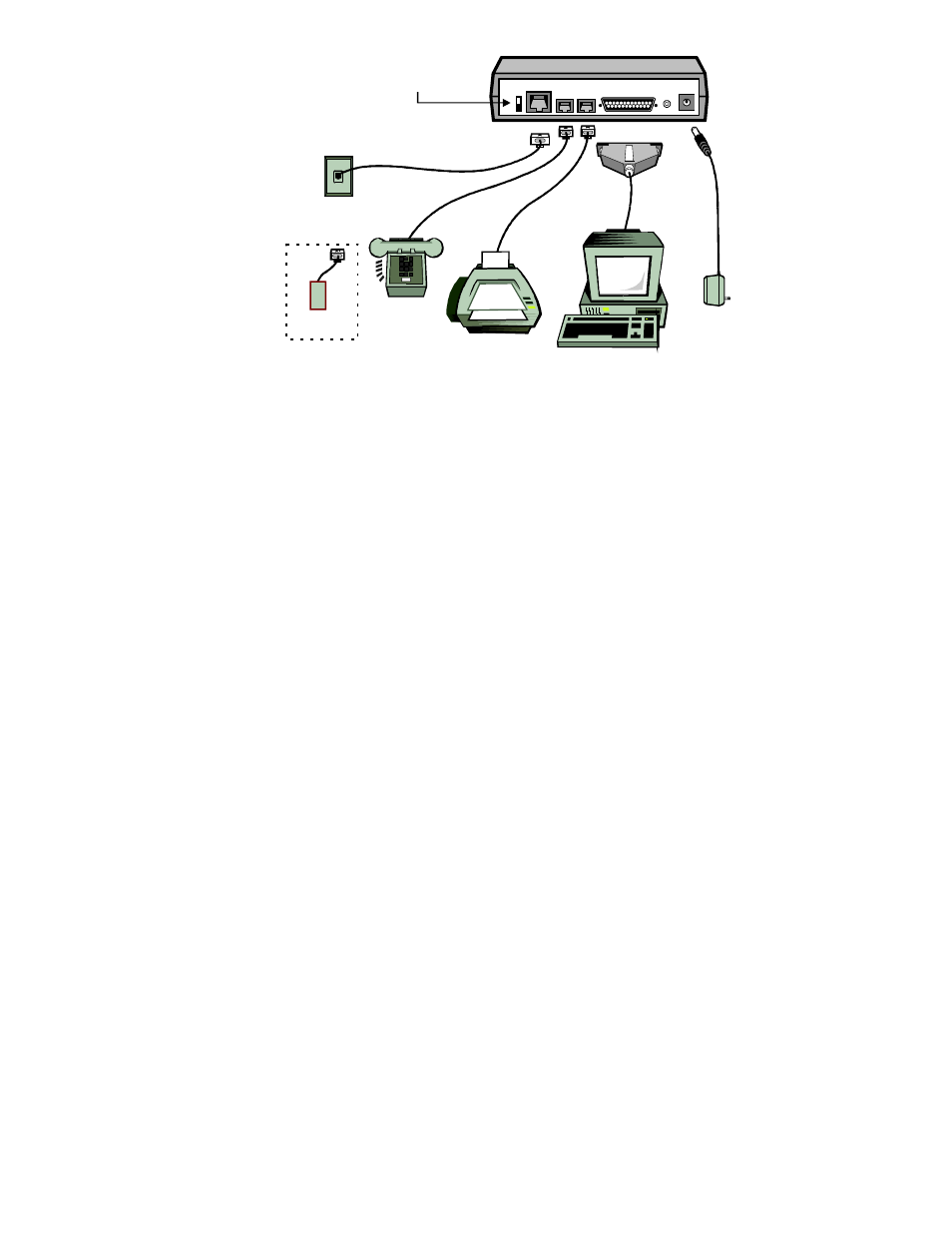

Figure 1: Connecting the Cables
➀
ISDN cable
➃
Serial cable
➁
Analog device #1
➄
A/C adapter
➂
Analog device #2
⑥
Phone Adapter
Note: Phone ports and adapters are only available on certain
models.
After Connecting the Cables
After connecting the power and the ISDN cable to the DIVA T/A,
wait at least 10 seconds for the DIVA T/A to initialize and then check
the “D” and “LINK” LEDs. If they are both glowing steadily, then
your DIVA T/A is operational (either from a previous configuration
or because your line supports AutoSPID). Go to the section “What’s
Next?” on page 12 and continue.
Note: Where AutoSPID is supported, the DIVA T/A installation
is totally Plug and Play.
If the “LINK” LED is not glowing steadily, this indicates a problem
with the ISDN line. Recheck all your cable connections.
