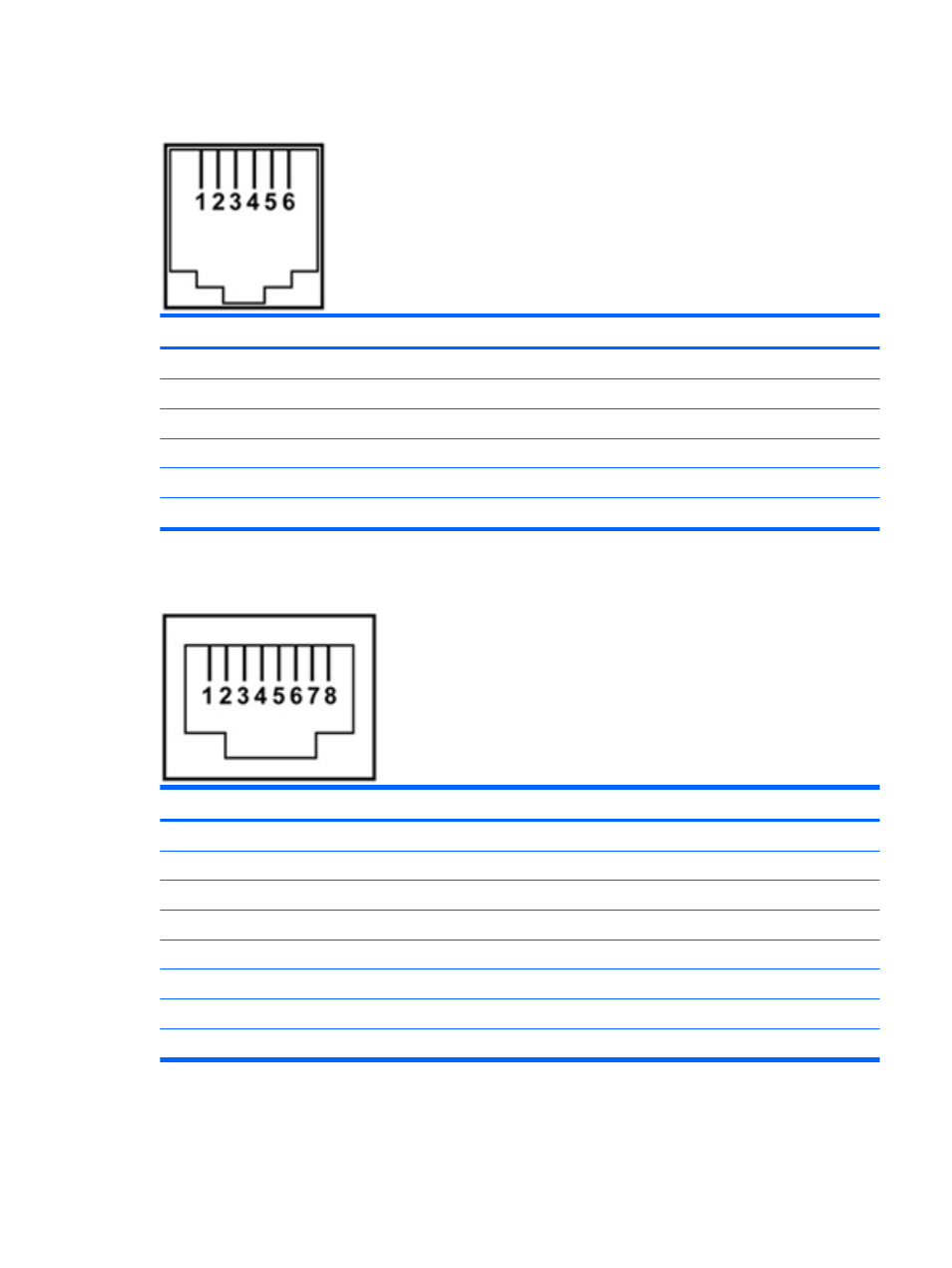

RJ-11 (modem)

Pin

Signal

1

Unused

2

Tip

3

Ring

4

Unused

5

Unused

6

Unused

RJ-45 (network)

Pin

Signal

1

Transmit +

2

Transmit -

3

Receive +

4

Unused

5

Unused

6

Receive -

7

Unused

8

Unused

ENWW

RJ-11 (modem) 101
