8

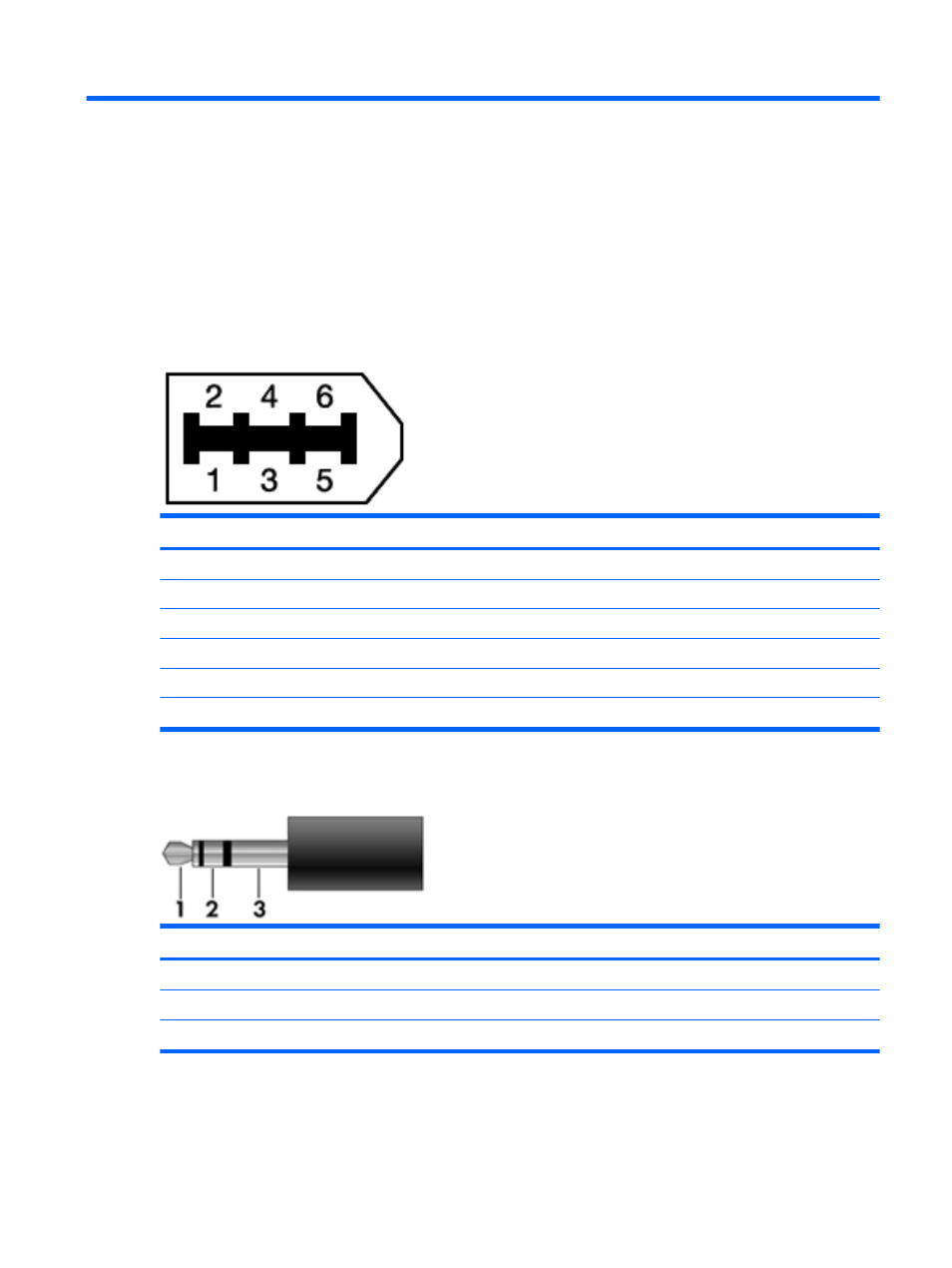

Connector pin assignments

1394

Pin

Signal

1

Power

2

Ground

3

TPB-

4

TPB+

5

TPA-

6

TPA+

Audio-out (headphone)

Pin

Signal

1

Audio out, left channel

2

Audio out, right channel

3

Ground

ENWW

1394

99
