12 - 2 4800p 2D Imager User’s Guide
Connector Pinouts
Agency Compliance
General:
CB Scheme: IEC60950-1 I.T.E.
LED Safety: Class 1 IEC 60825-1
USA:
FCC Part 15, Subpart B: Class B
UL: 60950-1 I.T.E.
Canada:
cUL: CSA C22.2 No. 60950-1 I.T.E.
CAN/CSA-CEI/IEC CISPR 22-02: Class B
European Community:
2004/108/EC EMC Directive, Class B
2006/95/EC Low Voltage Directive
Germany:
Gebprüfte Sicherheit (GS) marked and certified

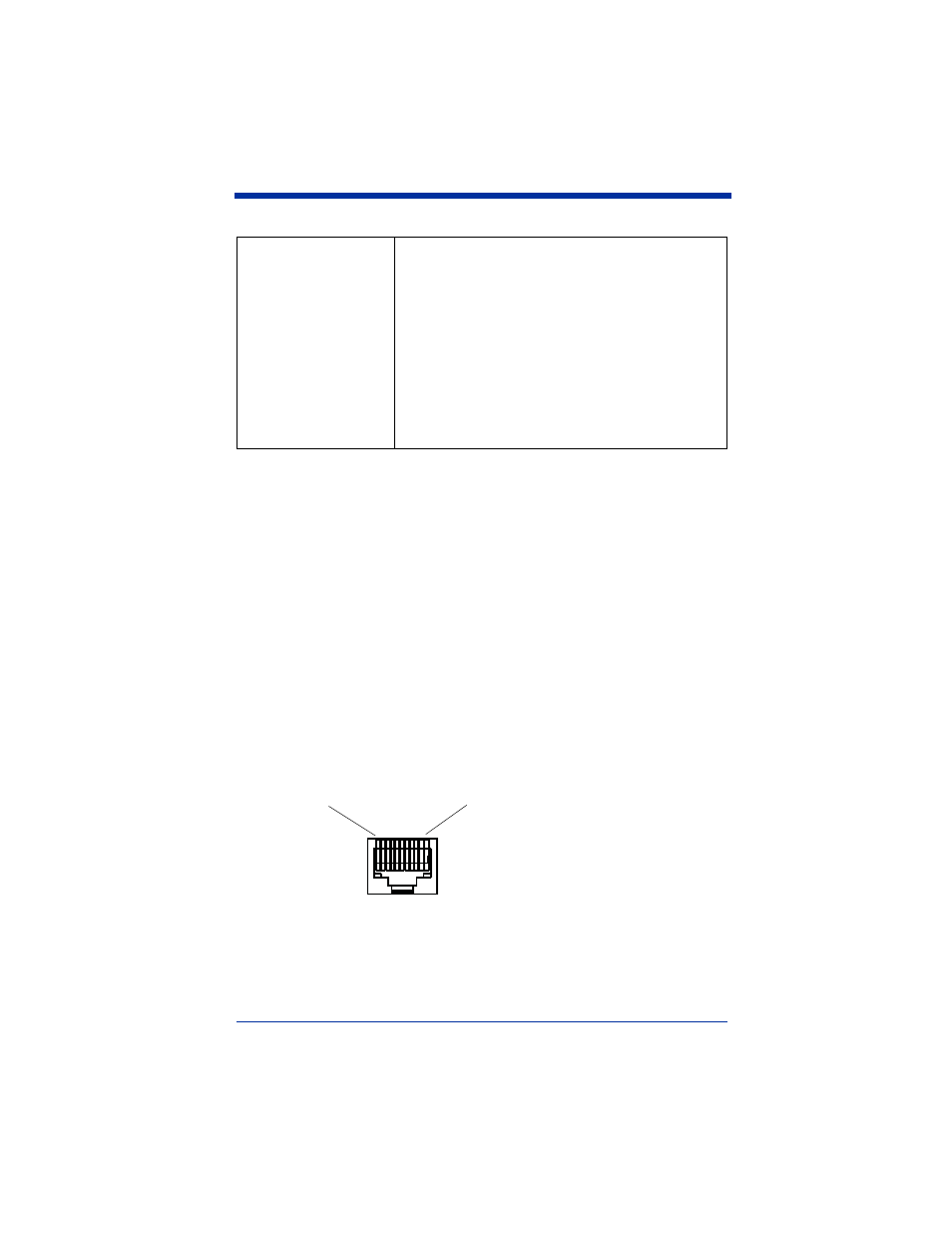

10 Pin Modular
1 2
D
ata +
3 4
S
upply ground
5 6 7
5
volt power connection
8 9 10
Data -
RJ45 Jac
k
Note: Pins 1, 3, 5, 6, 8, and 9
should not be connected e
x
ternall
y
.
