PARTS LIST – SPRAYER WITH UPRIGHT CART
Model 231–002, Series C, Basic Sprayer
Includes items 1 to 135 as listed below
REF
NO. PART NO. DESCRIPTION QTY
REF
NO. PART NO. DESCRIPTION QTY
1 065–099 CONDUIT, electrical 4 in.
3 100–188 NUT, hex, 5/16–18 7
4 100–214 LOCKWASHER, spring, 3/8” 9
7 101–344 CAPSCREW, hex hd, 5/16–18 x 7/8” 7
10 162–453 NIPPLE, 1/4 npsm x 1/4 npt 2
14 181–073 STRAINER 1
18 104–008 LOCKWASHER, spring, 5/16” 2
19 107–156 SCREW, mach, pan hd, 6–32 x 5/8” 6
20 105–509 CAPSCREW, soc hd, 5/16–18 x 7/8” 2
23 223–805 MOTOR, electric, 0.75 HP
includes replaceable items 23a–23g
1
23a 102–799 .TERMINAL, wire, ring 1
23b 185–955
}
.LABEL, DANGER, English 1
23c 596–421 .TERMINAL, wire, female, snap–on 4
23d 106–077* .CAPACITOR, motor, includes resistor 1
23e 186–449
}
.LABEL 1
23f 223–597 .CIRCUIT BOARD
See page 24 for application information 1
23g 185–952
}
.LABEL, Warning 1
25 106–078 SCREW, mach, flat hd, 10–24 x 3/8” 4
27 105–680 PIN, spring, straight, .167” dia x .94” 1
29 178–597 TUBE, suction 1
33 176–817 SPRING, retaining 2
34 176–818 PIN, str, hdls, .3125” dia x 1.023” 2
35 181–062 COVER, gear box 1
36 176–824 COUPLING, pump 1
37 176–825 GEAR, pinion 1
38 178–460 ADAPTER, 3/8 npt(m) x 1/2 npt(f) 1
40 185–524 BRACKET, mounting 1
41 183–997 COVER 1
46 222–198 PRESSURE DRAIN VALVE 1
47 214–570 FLUID FILTER
Includes 1 of item 10, and 47a
see 307–273 for additional parts
1
47a 100–040 .PLUG, pipe, 1/4 1
50 215–860 PRESSURE CONTROL ASSEMBLY
see parts on page 23
1
52 223–766 HOSE, nylon, 1/4” ID, cpld 1/4 npsm(fbe),
29” (737 mm), spring guards both ends 1
53 215–903 BEARING ASSEMBLY 1
54 215–904 CONNECTING ROD ASSEMBLY 1
55 218–922 DRIVE ASSEMBLY
includes replacement items 55a – 55h
1
55a 104–008 .LOCKWASHER, spring, 5/16” 2
55b 106–115 .LOCKWASHER, spring, 3/8” 4
55c 100–659 .CAPSCREW, soc hd, 3/8–16 x 1” 4
55d 100–657 .CAPSCREW, soc hd, 5/16–18 x 2” 2
55e 105–510 .LOCKWASHER, 1/4” 4
55f 100–644 .CAPSCREW, soc hd, 1/4–20 x 3/4” 4
55g 106–227 .BEARING, thrust 1
55h 110–293 .LUBRICANT (not shown) 1
58 218–215 DISPLACEMENT PUMP
see page 25 for parts
1
84 155–665 UNION, straight adapter, 3/8 npt(m) x
3/8 npsm(f) swivel
1
92 177–762
}
LABEL, warning 1
94 206–994 THROAT SEAL LIQUID 1
95 178–034 TAG, caution 1
97 101–242 RING, retaining 2
99 106–062 WHEEL, semi–pneumatic 2
106 185–955
}
LABEL, DANGER, French 1
112 176–762 NUT, hex, 1 1/2–18 1
113 181–048 BRACKET, pail 1
119 100–509 PLUG, 1/4–18 nptf 1
120 179–945 ADAPTER, elbow, 7/16” stud,1/4 npt(f) 1
122 150–513 NUT, jam, 1 7/16–20 1
123 100–322 WASHER, 1/4” 1
129 218–906 CART ASSEMBLY
Includes item 129a
1
129a 105–521 .PLUG, tubing 2
130 102–932 CONNECTOR, conduit, 90
_
1
132 104–811 HUBCAP 2
133 110–037 SCREW, 10–24 unc x .5” 4
135 101–754 PLUG, 3/8 nptf see page 23 1
*Recommended spare parts. Keep on hand to reduce down
time.
]
Extra Danger and Warning labels are available at no charge.
Model 231–490, Complete Sprayer
Includes items 1 to 135, 200 to 202
REF
NO. PART NO. DESCRIPTION QTY
200 220–956 GUN, Flex, airless spray,
see 307–633 for parts
1
201 223–541* HOSE, spray, cpld 1/4 npsm(fbe) swivel,
1/4” ID, nylon, 50 ft (15 m), spring guard
both ends
1
202 214–701* HOSE, whip end, cpld 1/4 npt(m) x
1/4 npsm(f) swivel, 29” (740 mm) long,
spring guard one end
1
*Recommended spare parts. Keep on hand to reduce down
time.

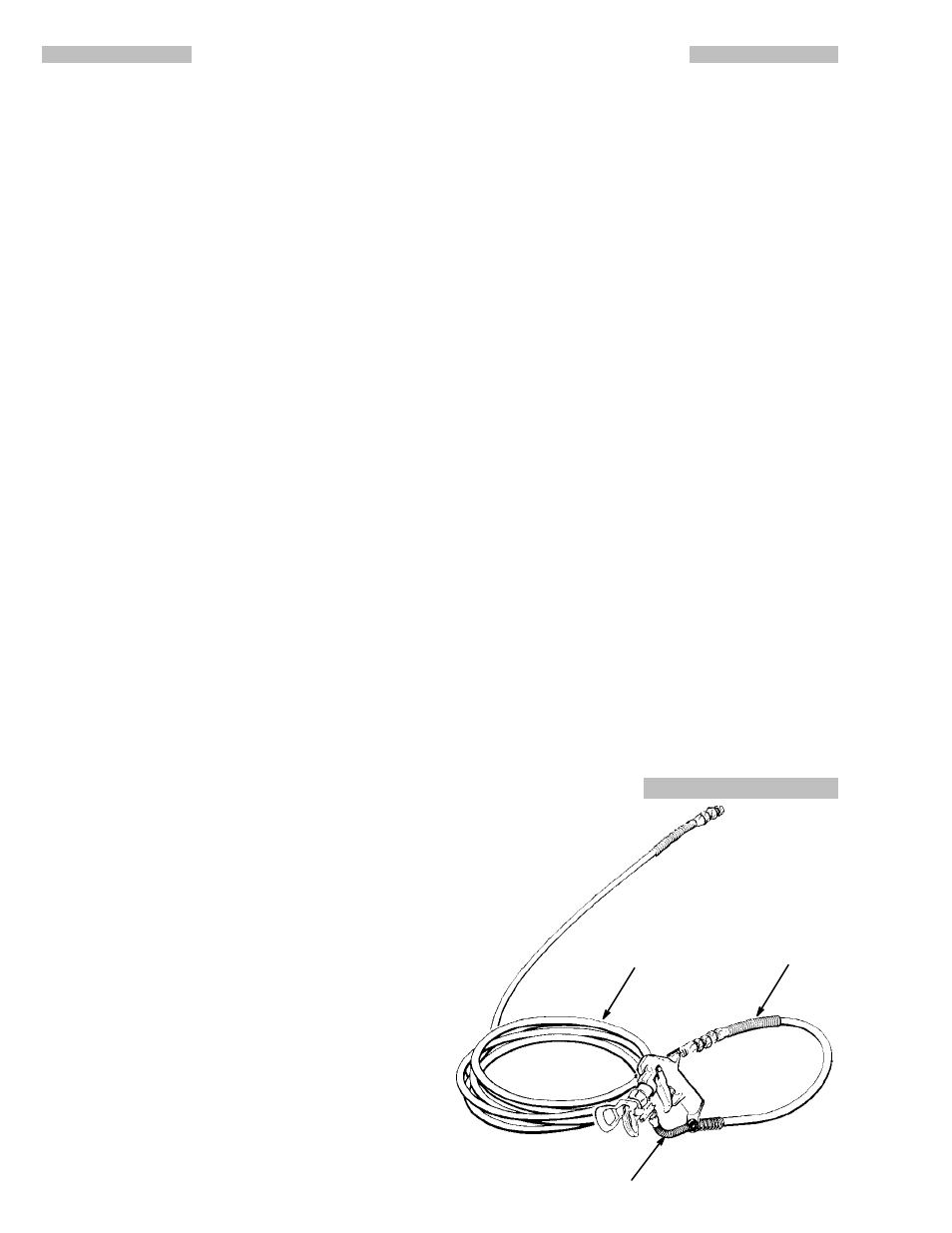

PARTS DRAWING
