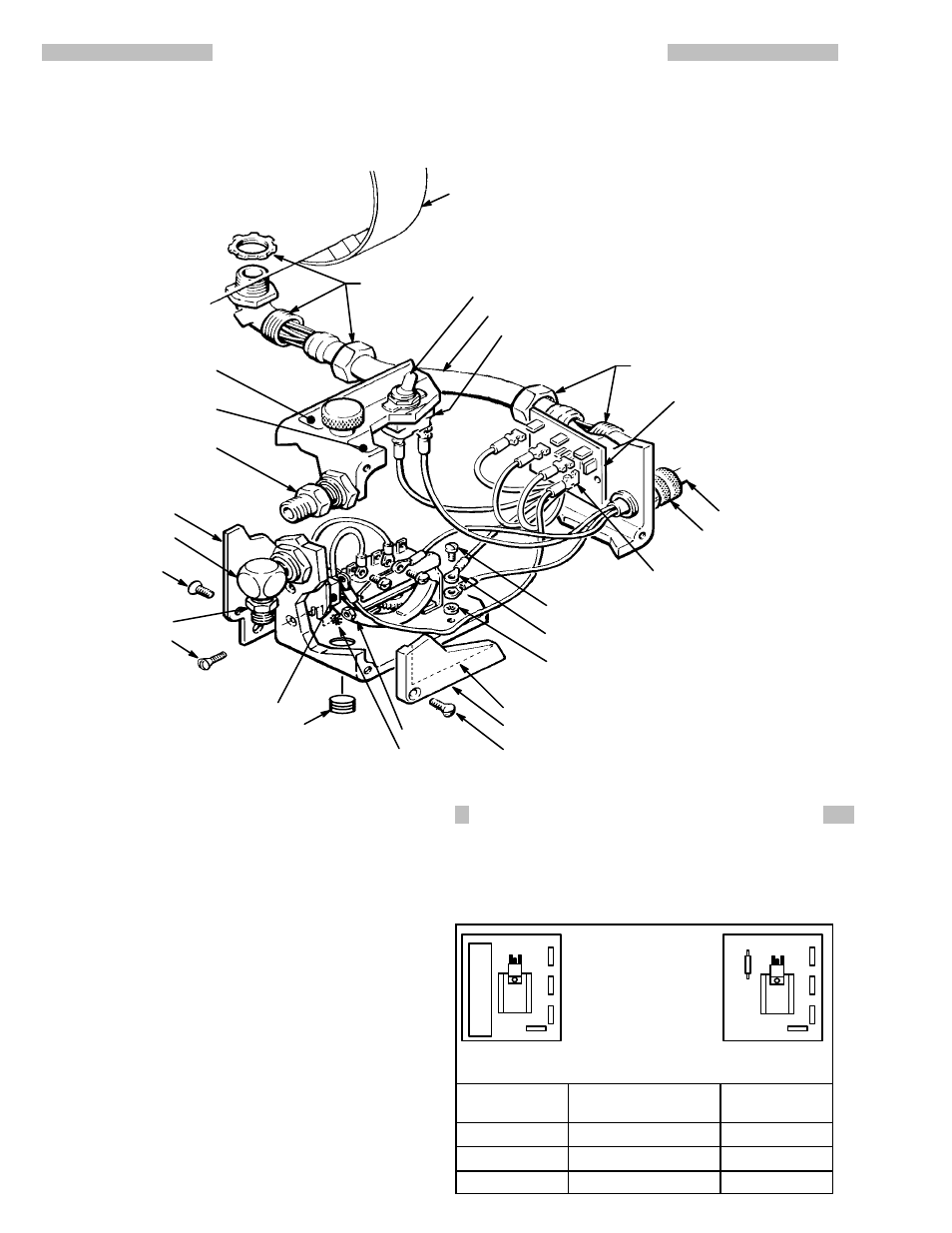

PARTS DRAWING – PRESSURE CONTROL
Ref 25
Part No. 215–860
Ref No. 50
Pressure Control Assembly
Includes replaceable items 301 to 316,
as listed below
NOTE: Numbers with “Ref”
preceeding them correspond
with the parts lists on pages 24
and 26.
Ref 23
Ref 130
315
316
Ref 1
303
Ref 23f
306
305
Ref 23c
301
Ref 23a
304
Ref 92
Ref 41
Ref 133
311
307
313
Ref 40
312
310
302
308
309
Ref 135
314
SEE INFORMATION
BELOW FOR WHICH
CIRCUIT BOARD TO USE
REF
NO.
PART NO. DESCRIPTION QTY
301 100–035 SCREW, mach; pan hd; 8–32 x 5/16” 1
302 162–453* NIPPLE, 1/4 npsm x 1/4 npt 1
303 102–932 CONNECTOR, conduit, 90 _ 2
304 157–021 LOCKWASHER, int. shkprf, No. 8 1
305 217–492 CORD, power supply 1
306 108–295 RELIEF, strain 1
307 178–035
}
LABEL, caution 1
308 100–072 NUT, hex, mscr; 6–32 2
309 103–181 LOCKWASHER, No. 6 2
310 107–070 SCREW, mach; flat hd; 6–32 x 5/8” 2
311 178–797
}
LABEL, warning 1
312 100–840* ELBOW, street; 1/4 npt(f x m) 1
313 157–350* ADAPTER, 3/8 npt x 1/4 npt 1
314 218–916 TRIAC 1
315 105–659 BOOT, switch 1
316 105–679 TOGGLE, switch 1
}
Extra warning labels available at no cost.
* NOTE: A new pressure control (50) does not include items 302,
312, 313 or any items preceeded by “Ref” .
CIRCUIT BOARD APPLICATIONS
Identify the correct circuit board for your sprayer by
matching the information below. The circuit boards may
be purchased separately, but all replacement motors for
this sprayer include a new circuit board.
З
З
З
З
З
З
ЗЗ
ЗЗ
ЗЗ
ЗЗ
ЗЗ
ЗЗ
106–076 223–597 Circuit Board P/N
and style used in used in
220–679, A & B
231–002, A & B Sprayer, Series 220–679, C
231–002, C
218–923 Graco Motor P/N 223–805
3/4 HP Motor ID Label 3/4 HP+
112175402 Franklin Motor P/N 1111006400
