13

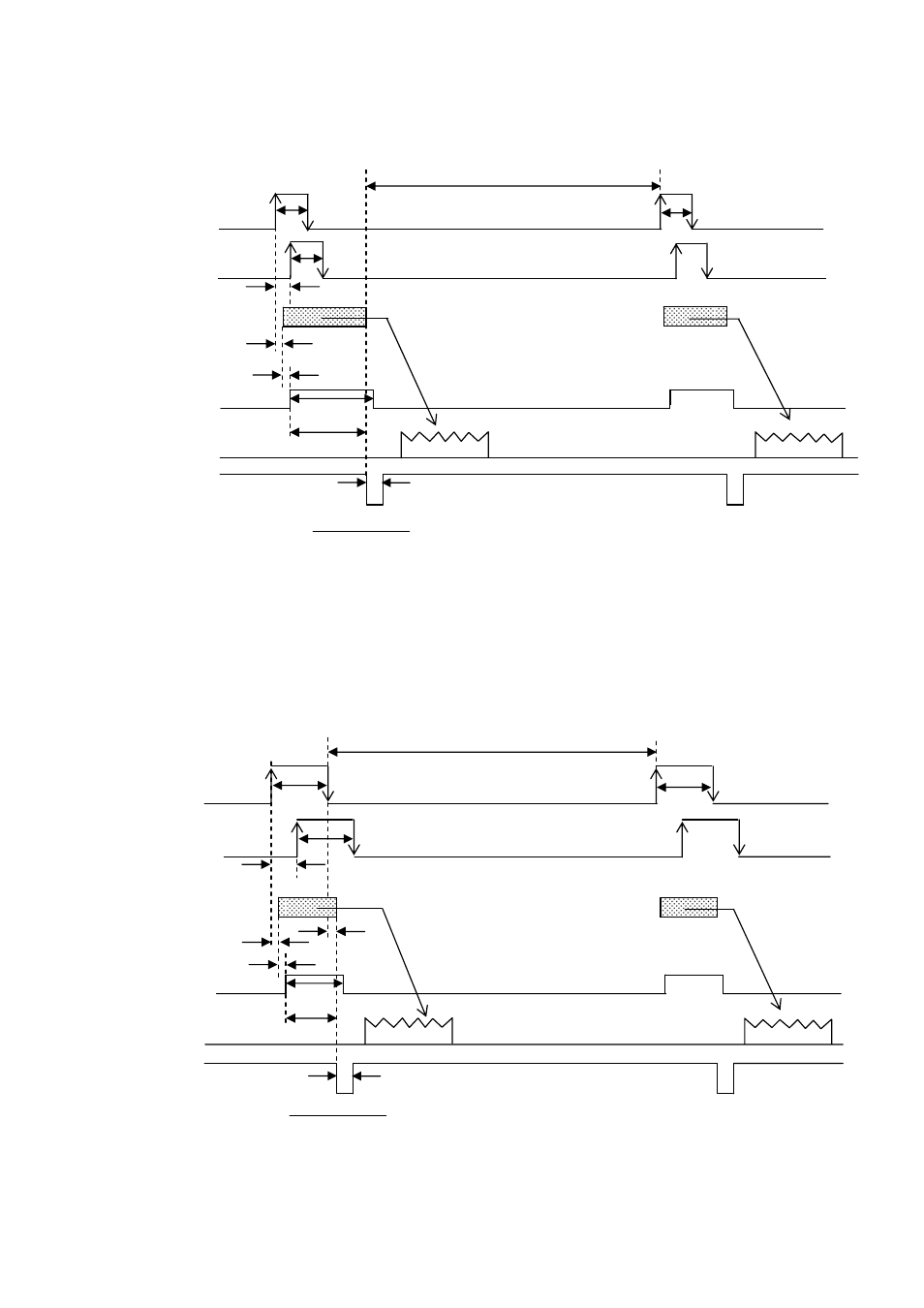

2. Fixed shutter mode (External trigger operating mode: Mode 0)
When external trigger signal is high active, after the trigger signal rise edge, the strobe signal start/end
can be set to determine the strobe time.
At the strobe signal falling edge, the internal VD signal is reset and the video data are transmitted.
3. One trigger mode (External trigger operating mode: Mode 1)
When external trigger signal is high active, after the trigger signal rise edge, the strobe signal start/end can be
set to determine the strobe time.
At the flash signal falling edge, the internal VD signal is reset and the video data are transmitted.
[sec]
rate frame Self
1
T1 (*1) =
Shutter time
(Integration time)
More than 10μs
Trigger input
(High active)
High
Low
Shutter time
Shutter time
(Integration time)
Data output
More than 10μs
More than T1 (*1)
T2 (*7)
Strobe output
(High active)
Trigger delay
(*3)
Strobe delay (*4)
Strobe duration1 (*5)
Strobe duration2 (*6)
VD output
(Low active)
Output delay
(*2)
Port1/Port2
output
(High active)
Port1/Port2 (Trigger) input signal width
(*2) 0.18～3930.42μs 0.96μs/step
(*3) 0.22～3930.46μs 0.96μs/step
(*4) 0.27～3930.51μs 0.96μs/step
(*5) 0.96～3931.2μs 0.96μs/step
(*6) Shutter Time – Strobe delay
（when duration time is set to 000h）
9H
(*7) T2 = 27μs (KP-FD140F/F140F)
(*7) 19μs (KP-FD32F/F32F)
(*7) 29μs (KP-F83F)
[sec]
rate frame Self
1
T1 (*1) = (*2) 0.18～3930.42μs 0.96μs/step
(*3) 0.22～3930.46μs 0.96μs/step
(*4) 0.27～3930.51μs 0.96μs/step
(*5) 0.96～3931.2μs 0.96μs/step
(*6) Shutter Time – Strobe delay
（when duration time is set to 000h）
Trigger input
(High active) High
Low
Shutter time Shutter time
(Camera setting value)
Data output
Shutter time
(Camera setting
value)
More than 10μs
More than 10μs
More than T1 (*1)
Strobe output
(High active)
Trigger delay
(*3)
Strobe delay (*4)
Strobe duration1 (*5)
Strobe duration2 (*6)
Output delay
(*2)
Port1/Port2
output
(High active)
VD output
(Low active)
Port1/Port2(Trigger) input signal width
9H
