(14) CURRENT MEMORY
(CSR: F0F0 0624 h)
Loading memory channel designating data
-LOADBACK UP execute-
Setting value x0000000 h x: 0- FACTORY SETUP, 1- ch1, 2- ch2, 3- ch3, 4- ch4
2. Advance CSR
2-1. Image color reproduction and color balance related CSR
(1) MASKING (CSR: F200-0020 h)
RGB and Ye Cy Mg color saturation and hue can be separately varied (6 vector independent masking). Color
reproduction detail and fidelity are effectively enhanced.
When engaged, R saturation (CSR: F200 0024) - M hue ((CSR: F200 0050) can be set, with color phase and
saturation adjusted for each color phase.
* This function is only for KP-FD140F and KP-FD32F.
-OFF-
Setting value 80000000 h
-ON-
Setting value 82000000 h
a) (MASKING) R SATURATION (CSR: F200 0024 h)
-Manual adjustment-
Setting value 820000xx h xx: 00h to FFh (standard 80h)
b) (MASKING) Y SATURATION (CSR: F200 0028 h)
-Manual adjustment-
Setting value 820000xx h xx: 00h to FFh (standard 80h)
c) (MASKING) G SATURATON (CSR: F200 002C h)
-Manual adjustment-
Setting value 820000xx h xx: 00h to FFh (standard 80h)
d) (MASKING) C SATURATION (CSR: F200 0030 h)
-Manual adjustment-
Setting value 820000xx h xx: 00hto FFh (standard 80h)
e) (MASKING) B SATURATION (CSR: F200 0034 h)
-Manual adjustment-
Setting value 820000xx h xx: 00h to FFh (standard 80h)
f) (MASKING) M SATURATION (CSR: F200 0038 h
-Manual adjustment-
Setting value 820000xx h xx: 00h to FFh (standard 80h)
g) (MASKING) R HUE (CSR: F200 003C h)
-Manual adjustment-
Setting value 820000xx h xx: 00hto FFh (standard 80h)
h) (MASKING) Y HUE (CSR: F200 0040 h)
-Manual adjustment-
Setting value 820000xx h xx: 00h to FFh (standard 80h)

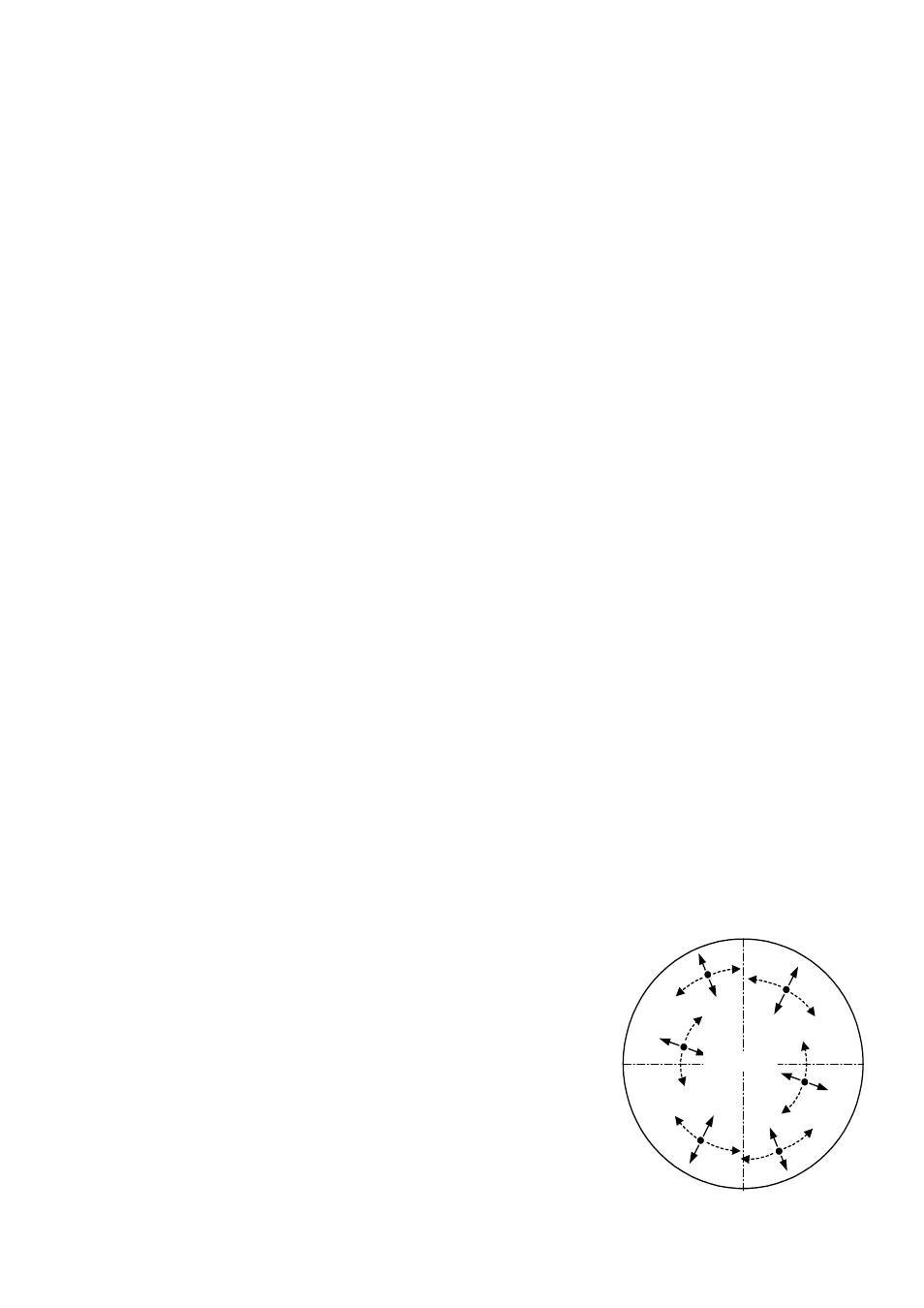

Y
R
M
B
C
G
(00h)
(FFh)
(FFh)
(00h)
Saturation
adjustment
Color phase
