12

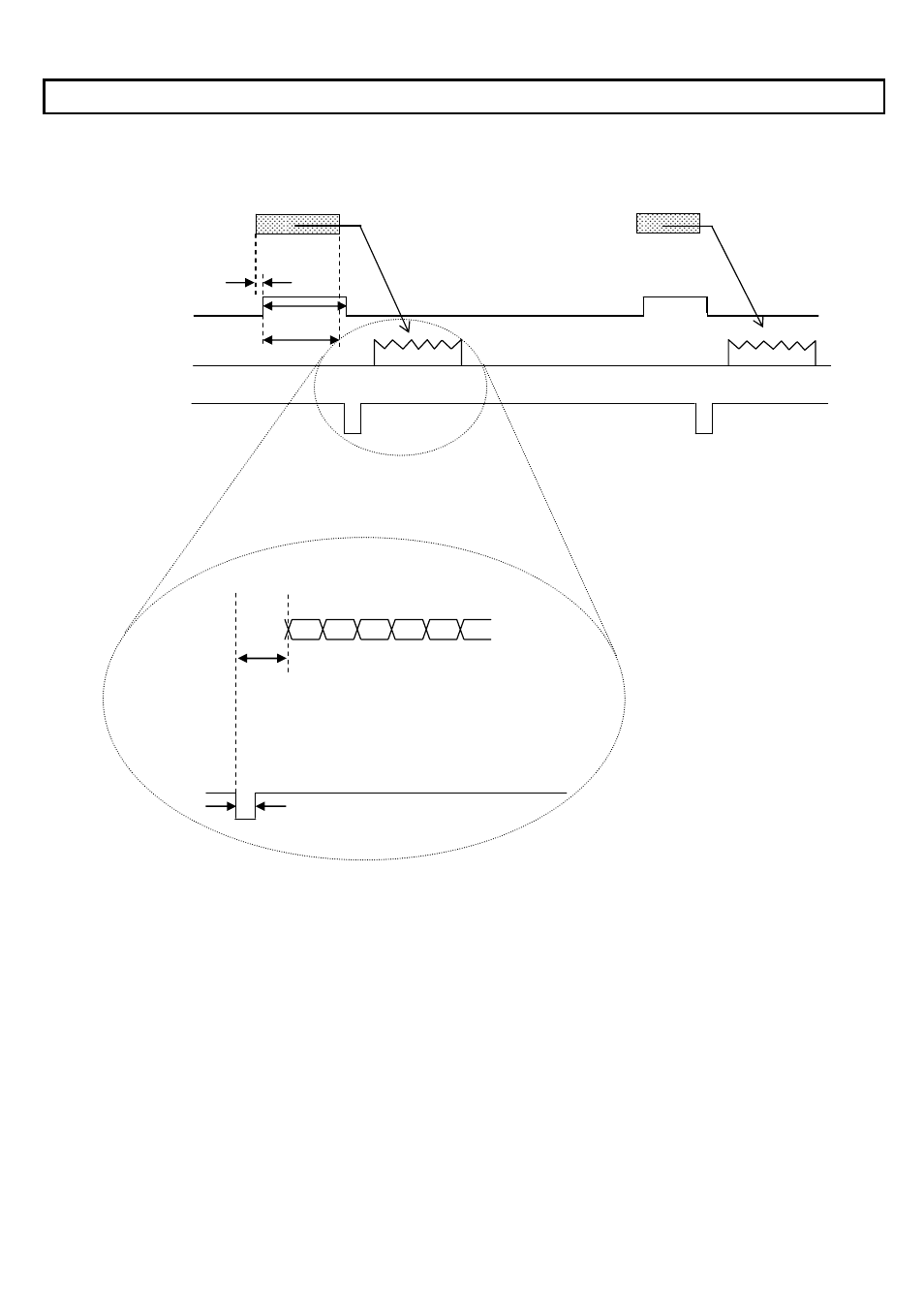

Trigger operation and timing chart


. Normal mode












































3.2 ms : KP-FD140F (1280 x 960, RGB24, 15fps)
0.9 ms : KP-FD32F (640 x 480, RGB24, 60fps)
3.2 ms : KP-F140F (1280 x 960, Mono8, 15fps)
0.9 ms : KP-F32F (640 x 480, Mono8, 60fps)
0.9 ms : KP-F83F, (1024 x 768, Mono8, 30fps)

(*1) 0.27~3930.51μs

0.96μs/step

(*2) 0.96~3931.2μs

0.96μs/step

(*3) Shutter Time – Strobe delay

(when duration time is set to 000h)

Shutter time

Shutter time
(Camera setting value)

Data output

Shutter time
(Camera setting
value)

Strobe output

(High output)

Strobe delay

(*1)

Strobe duration1

(*2)

Strobe duration2

(*3)

VD output

(Low active)

9H

DATA

VD
