Text mode
Original mode

5. Open both tractor lids, adjust the form holes so they match the tractor pins, and

then close the tractor lids.

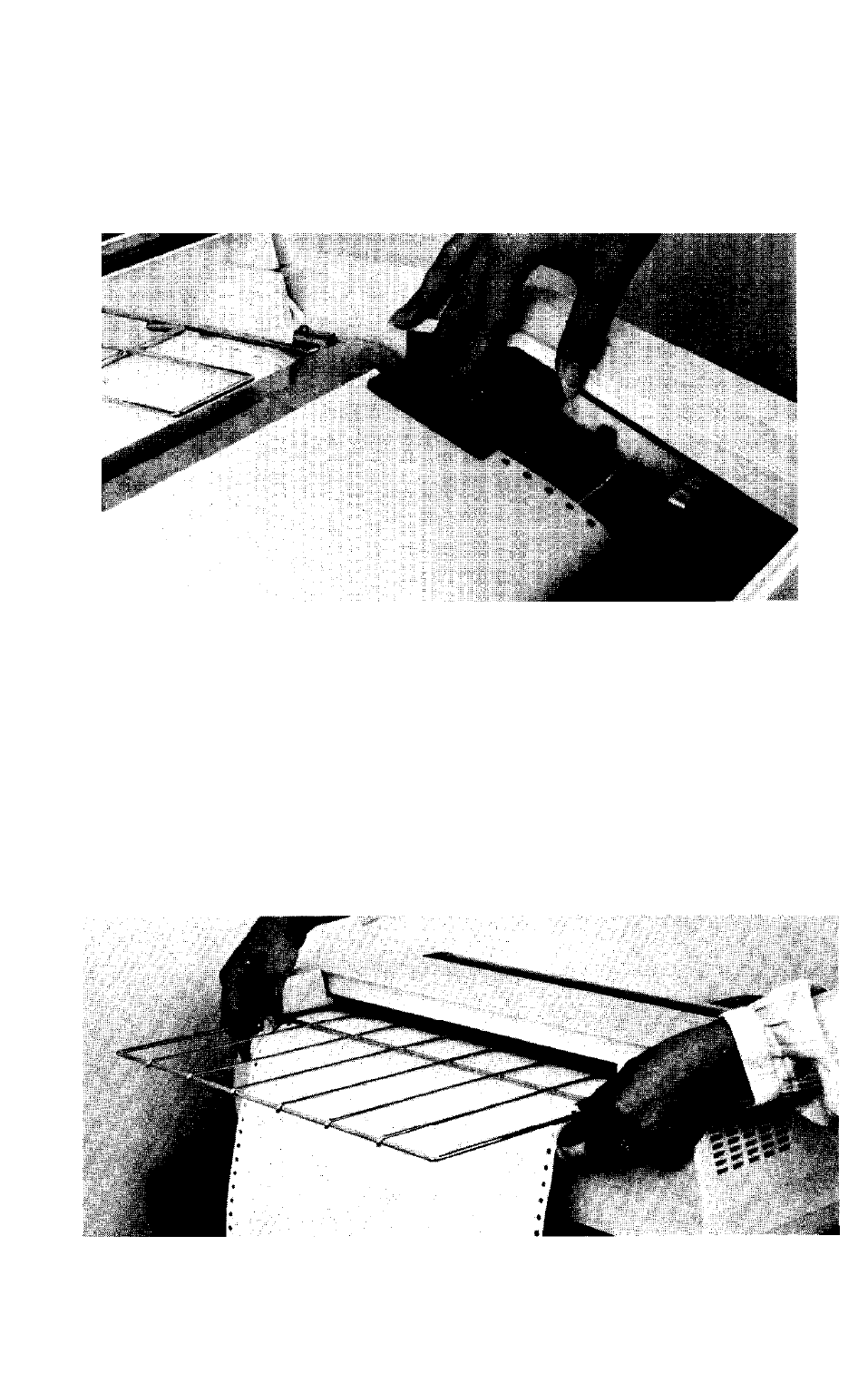

6. Determine the proper horizontal positions of the tractors, and then pull the tractor

lock lever forward to lock it into this position.

Fig. 12

7. Push the paper pressure bar towards the platen

8. For one part fan fold paper, the head adjustment lever is usually set at position
2. However, when printing an original plus 4 copies, it should be moved 3 or 4 clicks
forward.

9. As shown in Fig. 13, the side stoppers located at each side of the paper rack’s
form feed roller should be adjusted to match the width of the form being used.

Fig. 13
