Page 16

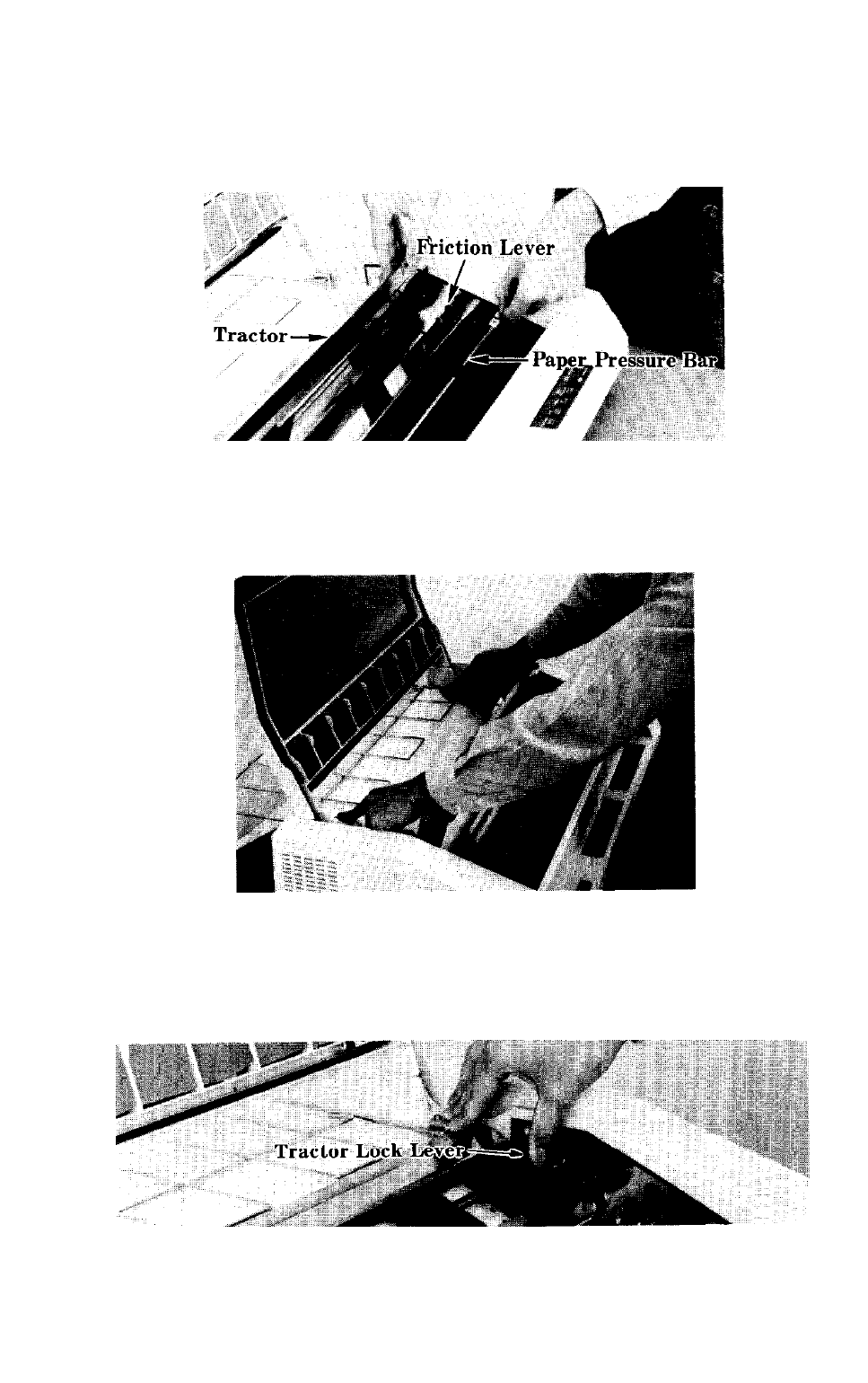

2. Pull the paper pressure bar forward. Pull the tractor forward until it clicks. At this

time make sure that the friction lever is in the forward position marked as “PIN FEED.”

(The form is free to move.)

Fig. 9

3. Insert the paper into the back of the printer following the paper feed path 1
as shown in Fig. 7.

Fig. 10

4. Push the tractor into its original position (until it clicks). If the tractor lock levers, located

at either side of the tractor shaft, are pushed up as shown in Fig. 11, the tractor can

be moved horizontally to adjust it to match the width of the form being used.

Fig. 11
