Removing the Transportation Screw
Before connecting the scanner to a power source, you must
remove the transportation screw.
1. Place the scanner on a flat, stable surface with its rear panel
facing you.

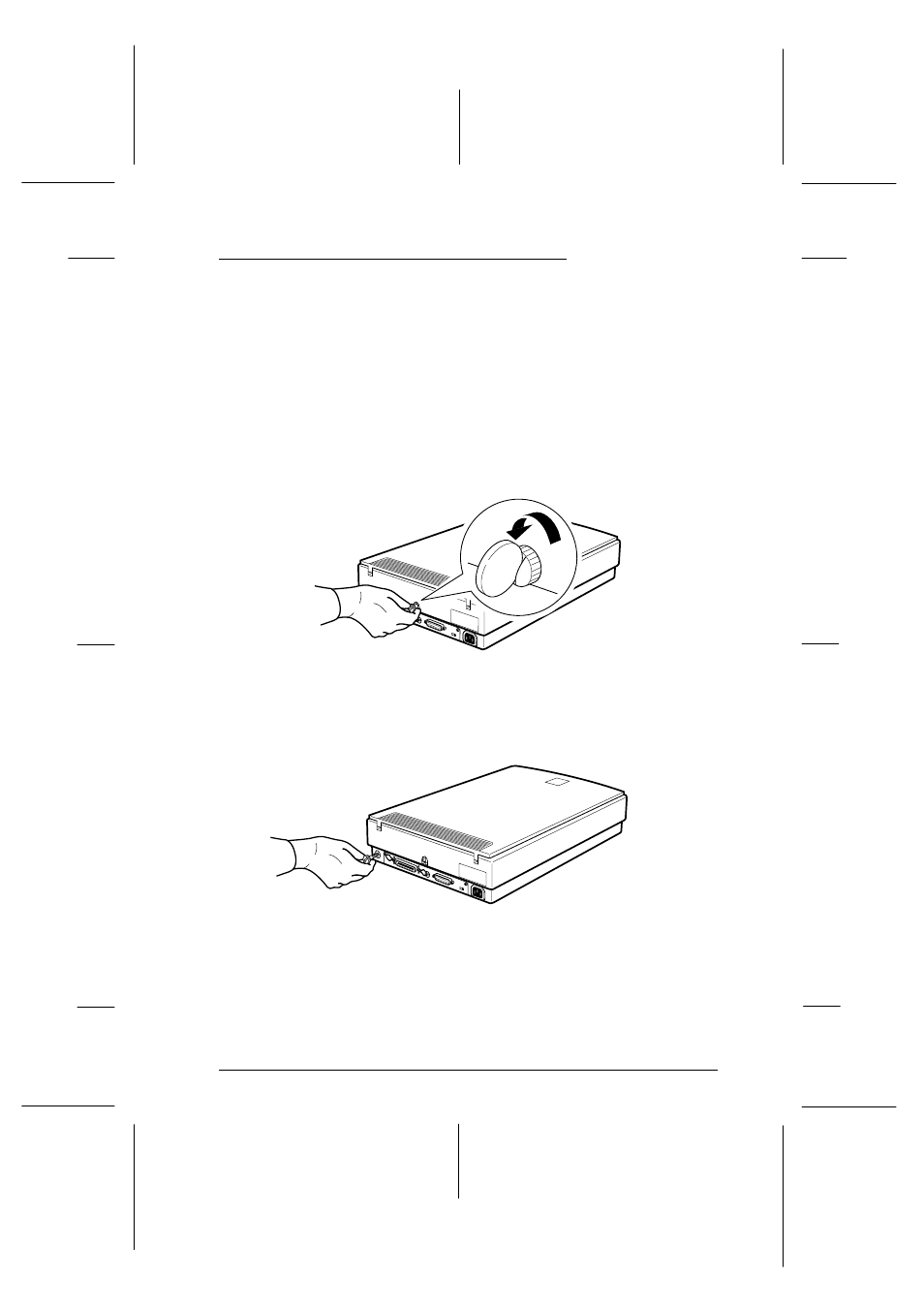

2. Remove the screw located in the middle of the rear panel by
turning it counter-clockwise, as shown below. If necessary,
turn the screw with a coin or screwdriver to loosen it.
3. Push the screw into the storage hole marked STOCK. It does
not screw in. Make sure you push it all the way into the
hole.
Note:
Do not discard the transportation screw. It must be replaced when
storing or transporting the scanner.
0 1 2 3 4 5 6 7
*
ON
SW
SCSI
SCSI
02
0 1 2 3 4 5 6 7
*
ON
SW
SCSI
SCSI
03
R GT-5500 Rev.C
A5 size Chapter 1
July-18-97 Pass 0, DR
Setting Up the Scanner 1-3
