CENTER SUPPORT BAR

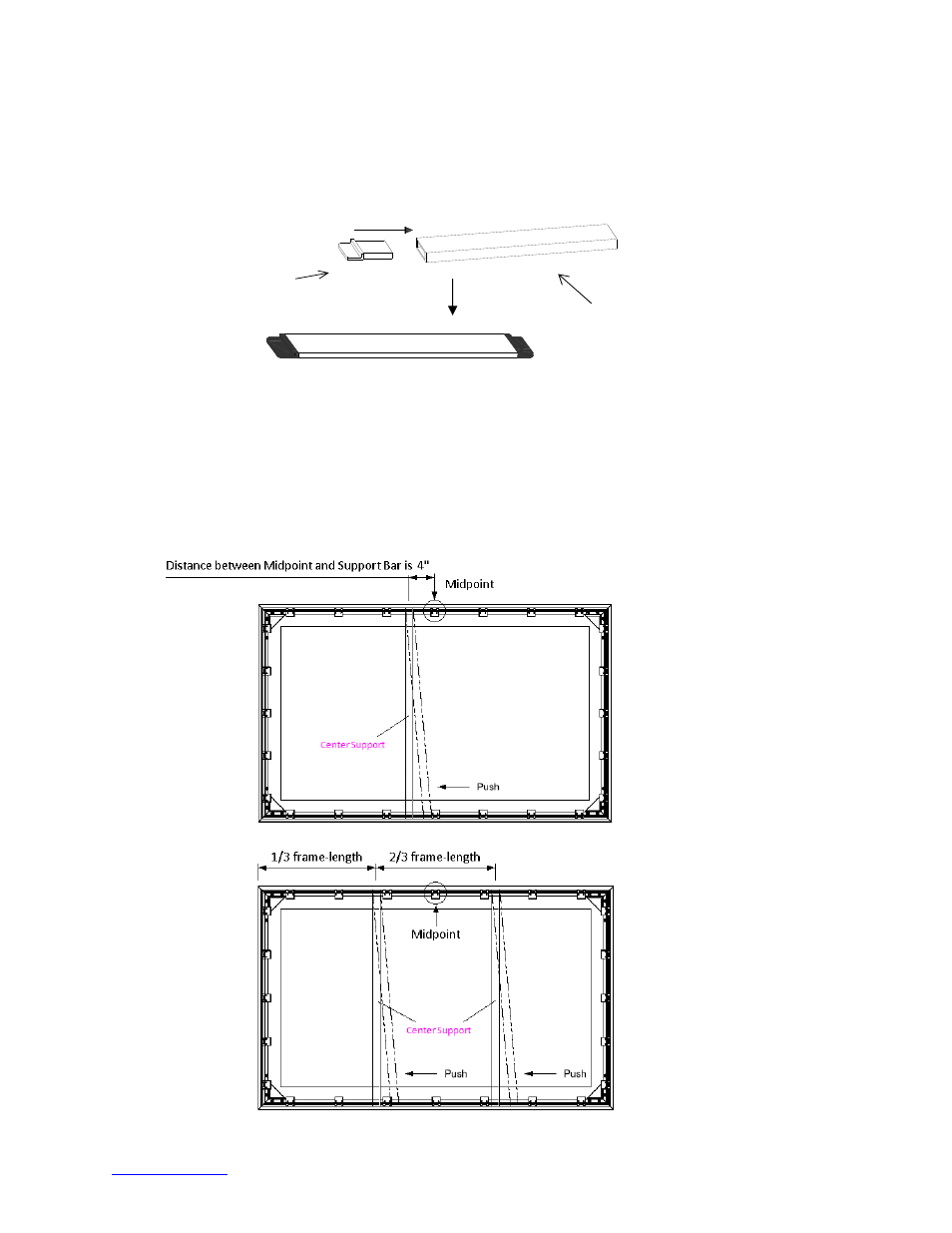

1. Insert the Support Joiner (I) into each side of the Center Support Bar (H) to complete assembly.
Support joiner
Center support bar
2. Insert the Center Support Bar (H) into the upper top groove on the back of the frame (not the one
where the fix plate inserts) with the bottom end near the approximate center point of the frame and
place it in at an angle so that both ends of the bar are in alignment with the groove.
3. Slide the top end of the end bar into the top center point location as shown below to complete the
center support bar installation. This will provide added stability to your frame and add tension to the
material.
