Assembly

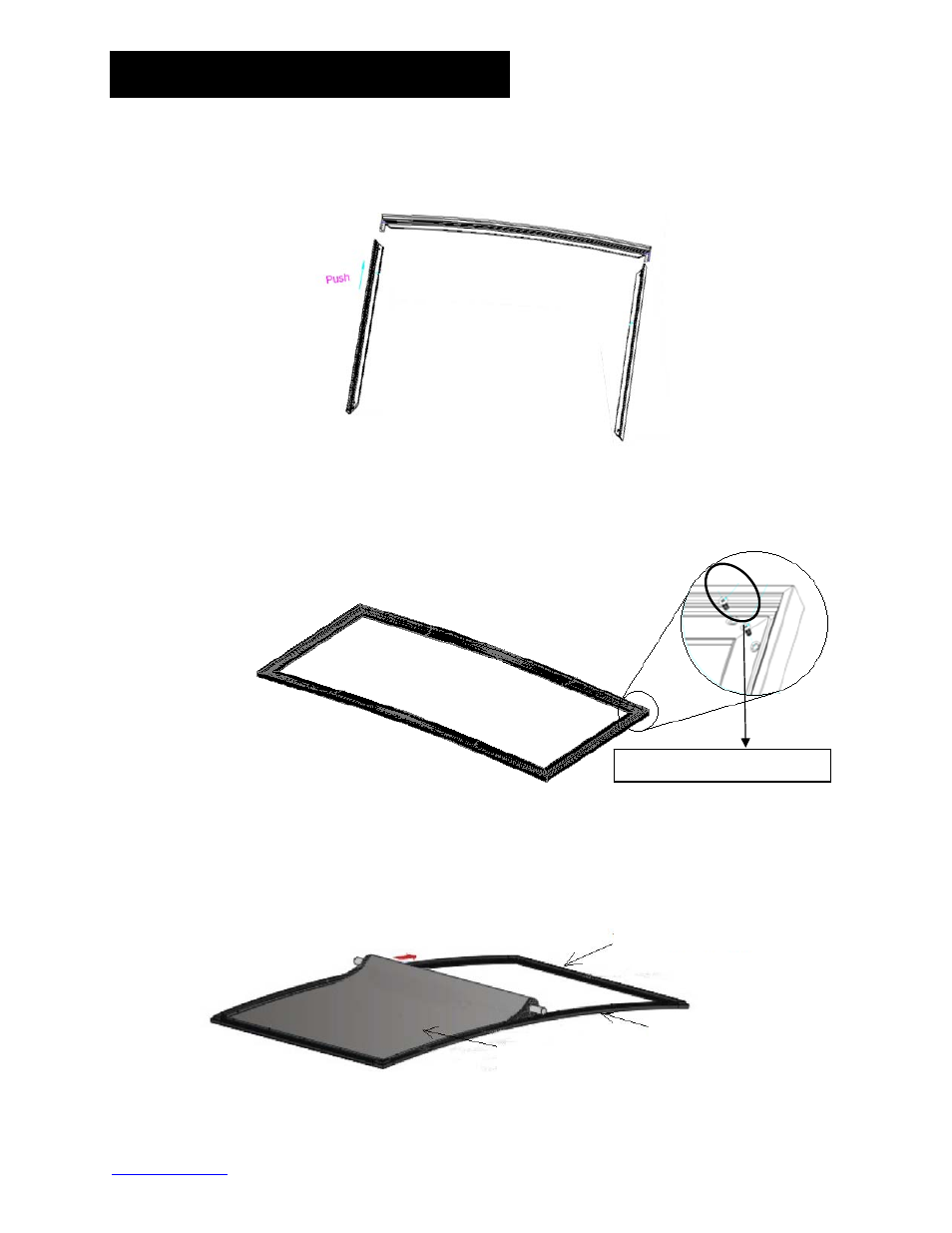

1. Insert both Elbow Joints (J) into each Horizontal Curved Frame (N) and join all four frame parts
together as shown below.
2. After making sure that all four corners join at right angles to form a perfect rectangle and fasten
together with the M5 screws (E).
3. Lay out the Screen Material (O) and Tension Rods (L) on a clean and dry surface and gently roll out
the screen material on the back of the frame.
Installation Instructions
Minimal gap is normal here
Vertical Upright Frame
Horizontal Curved Frame
Black Backing of the screen material
