Enviro C-11089 - Manual (Page 23)

23
Initial Installation
QUALIFIED INSTALLERS ONLY
R
EMOTE
H
ANDSET
W
ALL
B
RACKET
I
NSTALLATION
:
Kit Contents:
Quantity Description
1 Wall Bracket (Top & Bottom)
1 Spacer
1 Countersink Head Screw
2 Pan Head Screw
2 Spacer
Installation Options:
1. Mounted to wall with bottom of bracket only; refer to Figure 42.
42: Wall Bracket
Installation Option 1.
Figure 43: Wall Bracket Installation
Option 2.
Figure 44: Wall Bracket
Installation Option 3.
Note: The spacer maybe found between the top and
bottom halves of the wall bracket.
IMPORTANT:
The remote handset wall
bracket must be installed
in the same room as the
Sonnet.
2. Mounted to wall with top and bottom
of bracket; refer to Figure 43 (most
common).
3. Mounted to wall and bottom of light
switch cover
with top and
bottom of
mount; refer
to Figure 44.
The height for the vent must be between 10ft (3.05m) and 35ft (10.67m).
Install sealed Vertical Vent Cap to prevent leakage of room air up through
chimney.
The intake is 2" (51mm) and the exhaust is 3" (76mm).
Measure the height of the chimney beforehand and purchase the
appropriate kit. Never attempt to over-stretch a flexible liner to
accommodate the height of the chimney. Any chimney over 15' (4.6m),
install the Sonnet 15’ 2” & 3” Flex Vent (part #50-1512) and the Sonnet
2” & 3” Flex Couplers (part #50-1513). Every joint in the venting must be
secured with three (3) #8 x 3/8” HWH sheet metal screws and an
appropriate sealant (either silicone or milpac).
The flue damper can be fully blocked open or removed for installation of
the Sonnet; the smoke shelves, shields and baffles may be removed if
attached by mechanical fasteners.
The chimney must be clean, in good working order and constructed of
non-combustible materials.
Make sure that all chimney cleanouts are tight fitting and will not permit
air to leak into the chimney.
Refractory, glass doors, screen rails, screen mesh and log grates can be
removed from the fireplace before installing the Sonnet.

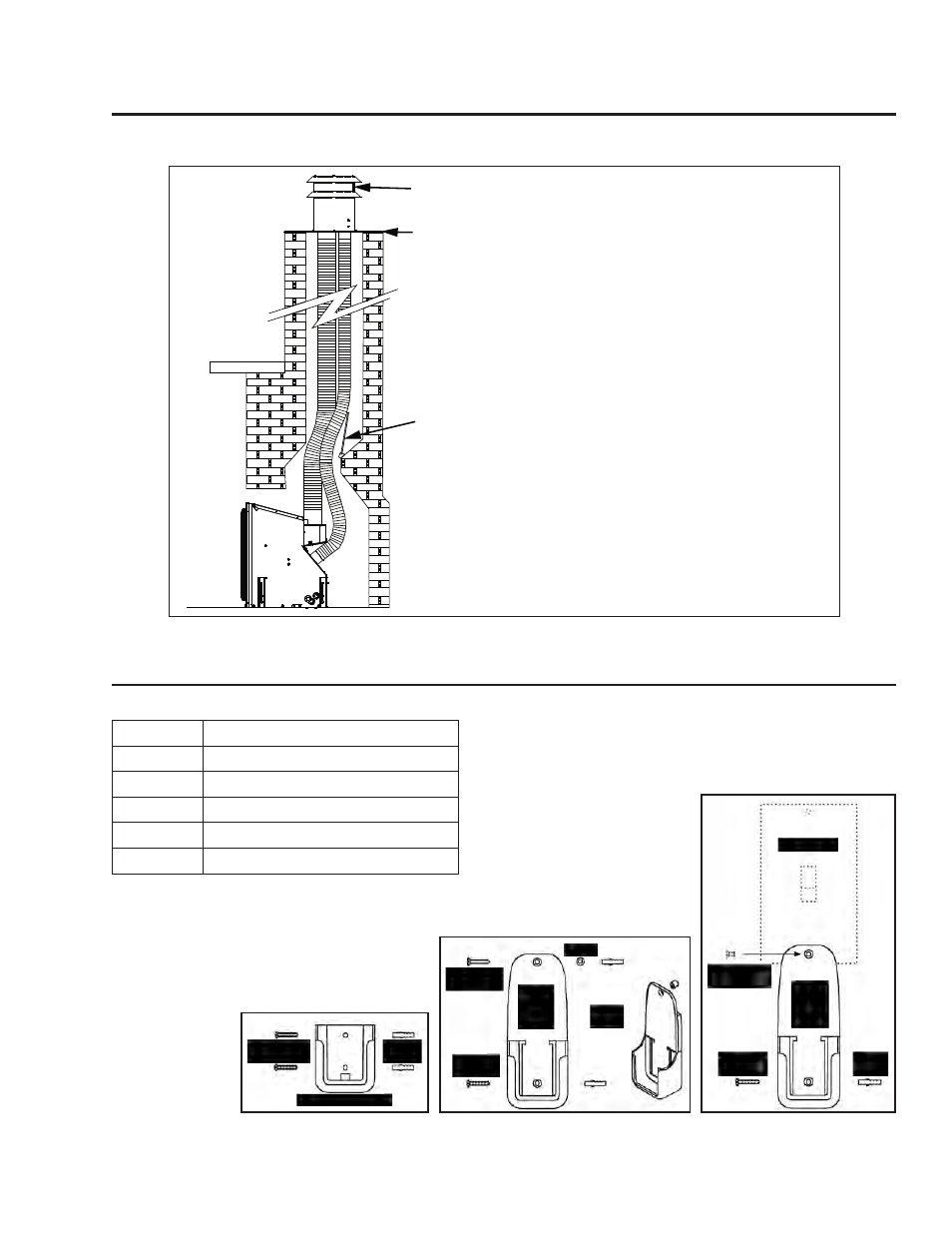

Figure 41: Installation of Sonnet DV .
