EPSON ActionNote 650

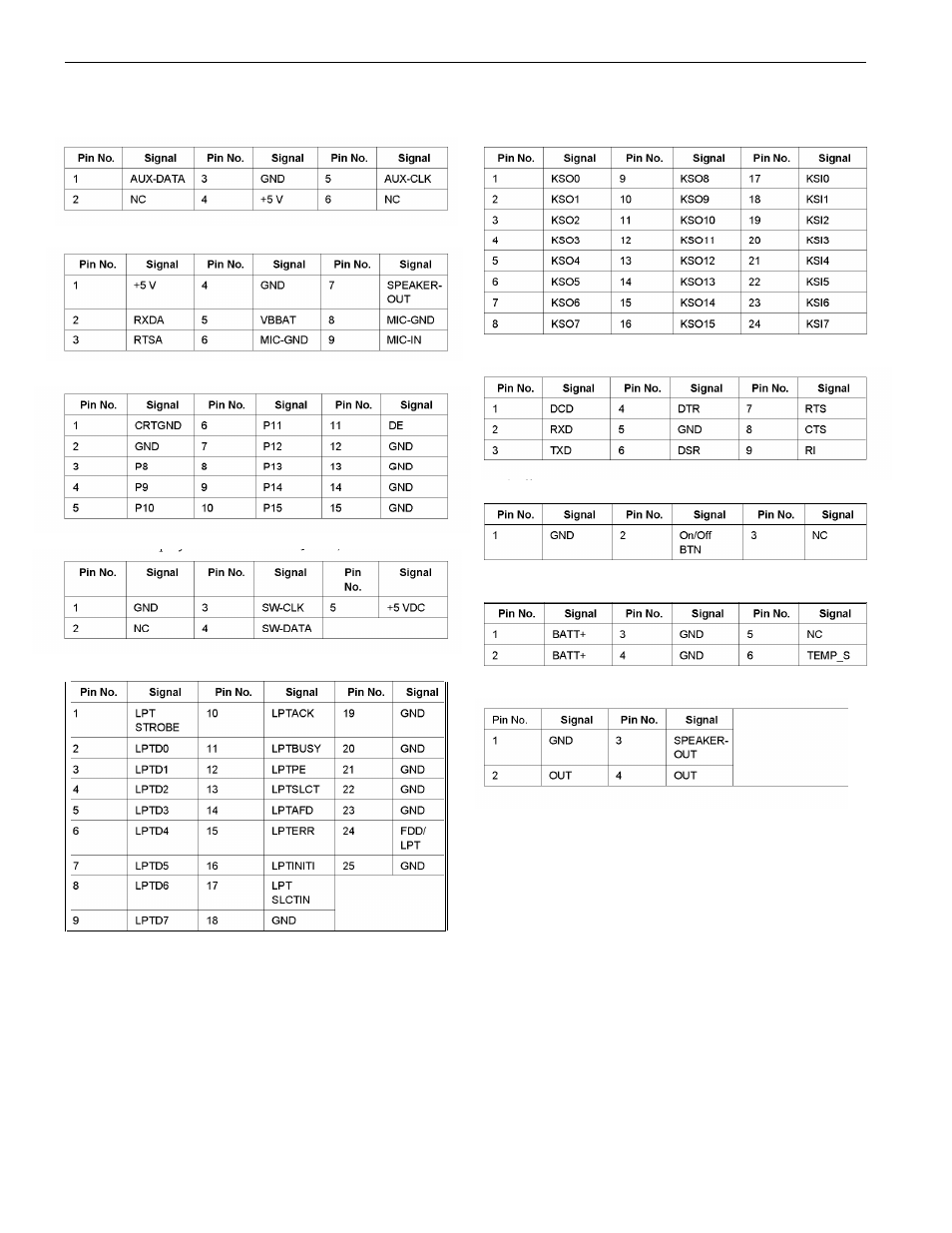

External Keyboard/Mouse Connector (JP204)
Trackball/ Speaker Connector (JP205)
VGA Connector for an External Monitor (JP206)
Status LCD Display Board Connector (JP207)
Parallel Port Connector (JP208)
Internal Keyboard Connector (JP209)
Serial Port Connector (JP211)
On/ Off Button Connector (JP213)
Battery Connector (JP215)
Phone Jack (JP218)
AN650-4
