Electro-Voice EVF/EVH User Manual
1.0 Introduction (cont’)

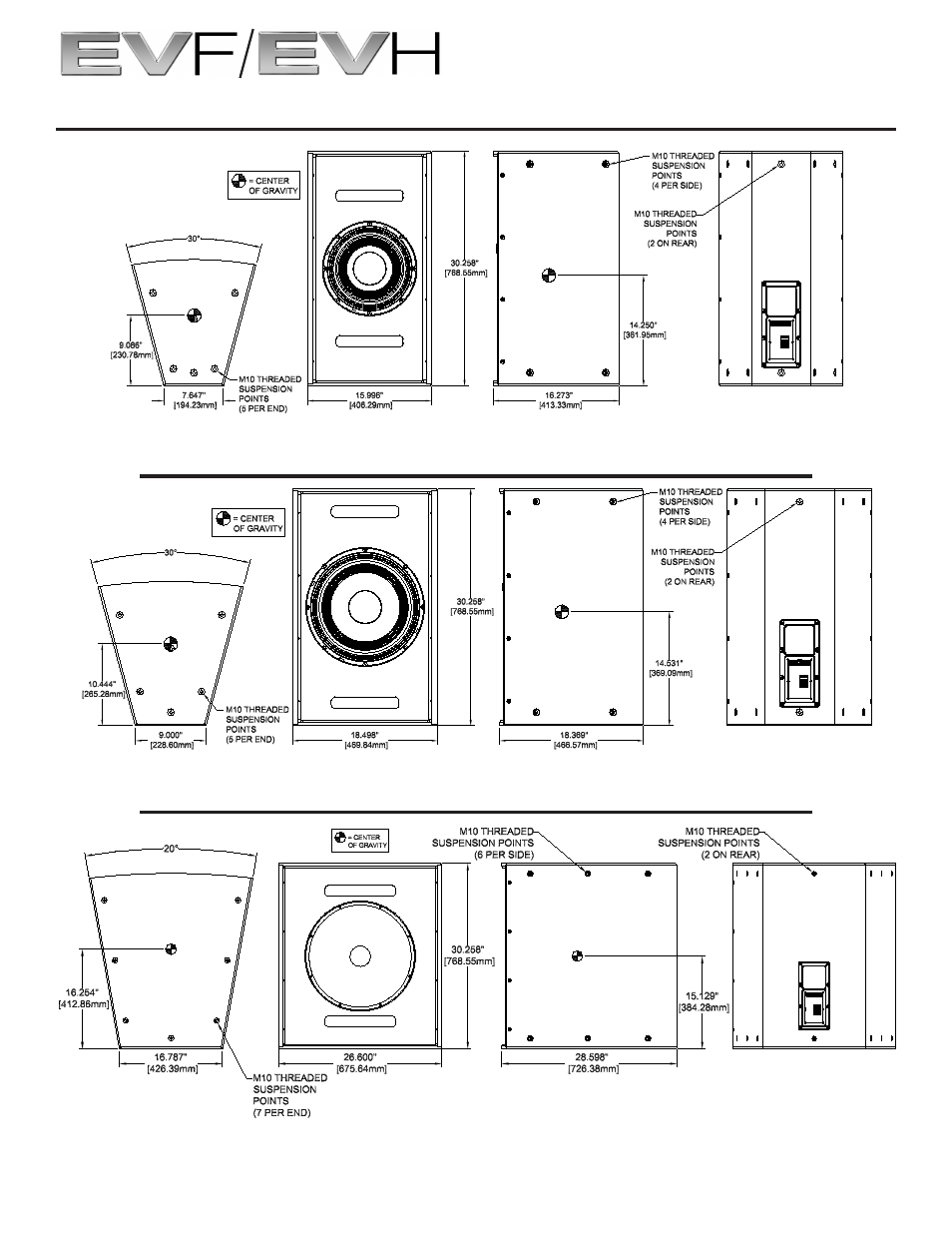

Figure 1c:
Key dimensions, suspension points, weight, and center-of-gravity for EVF-1121S
Front View End View Side View Rear View
System Weight -
57.7 lb (26.2 kg)
Figure 1d:
Key dimensions, suspension points, weight, and center-of-gravity for EVF-1151S
Figure 1e:
Key dimensions, suspension points, weight, and center-of-gravity for EVF-1181S
System Weight -
62.6 lb (28.4 kg)
Front View End View Side View Rear View
System Weight -
101.2 lb (46.0 kg)
Front View End View Side View Rear View
6
