Electro-Voice EVF/EVH User Manual 5
Typical EVF and EVH systems are shown in Figure 1, with key dimensions, suspension points, weights
and centers-of-gravity. Engineering data sheets for each model, containing full specifications and dimen-
sional drawings, are shipped with each loudspeaker and are downloadable from the Electro-Voice Web
site (www.electrovoice.com).
Table 1b:
Model number scheme, showing the meaning of each individual model number
Model Name
(As Shown)
EVF-1122S/96 (example)
Model Name
(Separated)
EVF - 1 12 2 S / 96
Description
Loudspeaker
Family/Series
(EVF Series)
Number of
Woofers
(1 Woofer)
Woofer
Diameter
(12-inch)
Number of
Band Passes
(Two-Way)
Woofer
Series Used
(SMX Series)
Coverage
Pattern
(90° x 60°)
1.0 Introduction (cont’)

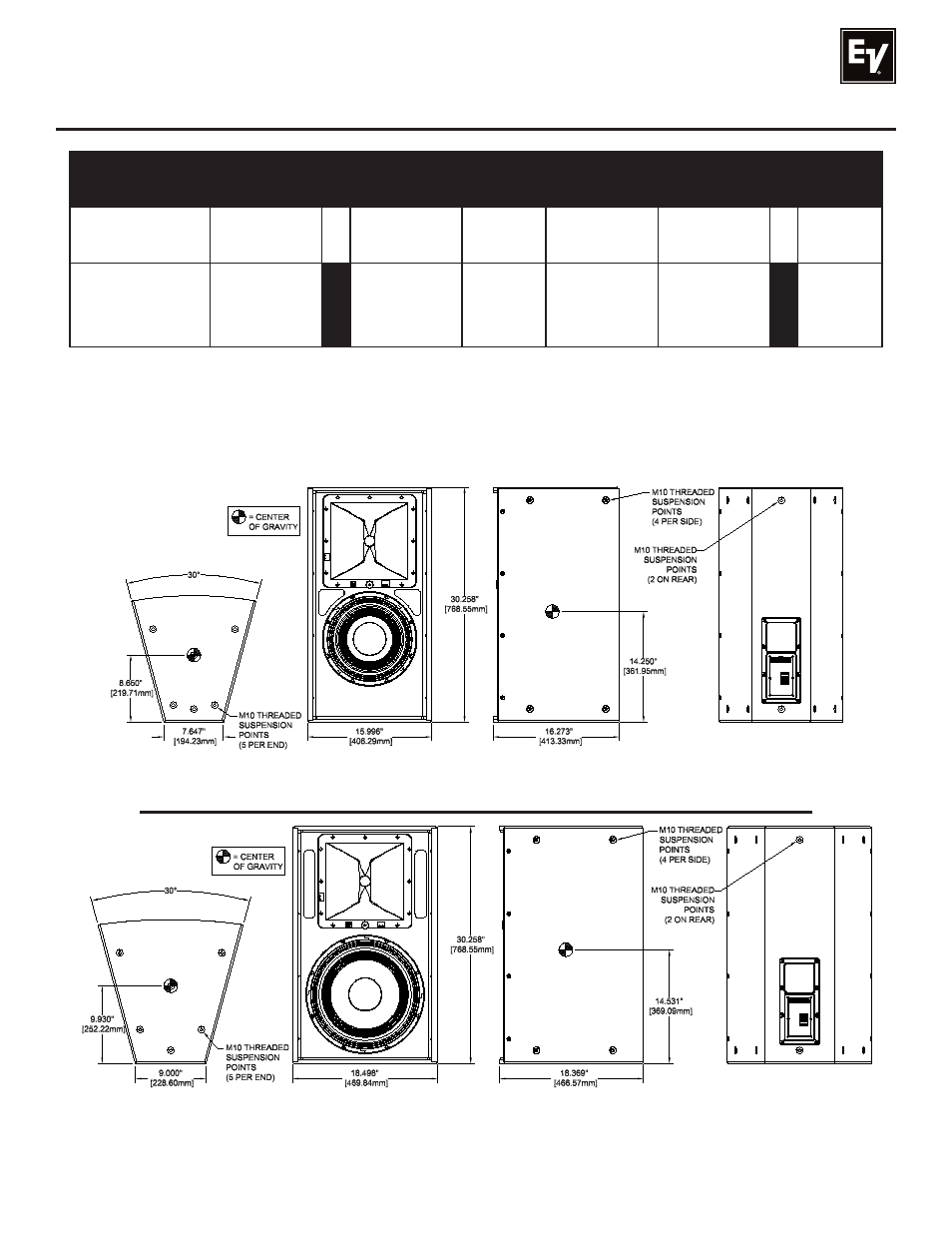

Figure 1a:
Key dimensions, suspension points, weight, and center-of-gravity for EVF-1122 (all coverage patterns)
Figure 1b:
Key dimensions, suspension points, weight, and center-of-gravity for EVF-1152 (all coverage patterns)
Front View End View Side View Rear View
“S” System Weight -
60.0 lb (27.2 kg)
Front View End View Side View Rear View
“S” System Weight -
70.1 lb (31.8 kg)
“D” System Weight -
65.5 lb (29.7 kg)
“D” System Weight -
75.7 lb (34.4 kg)
