Installation, Connecting the projector – Eiki EIP-S200 User Manual
Page 17
EN-16
Desktop type
Laptop type
2
3
7
5
1
4
6
When connecting cable, power cords of both a projector and external
equipment should be disconnected from AC outlet.

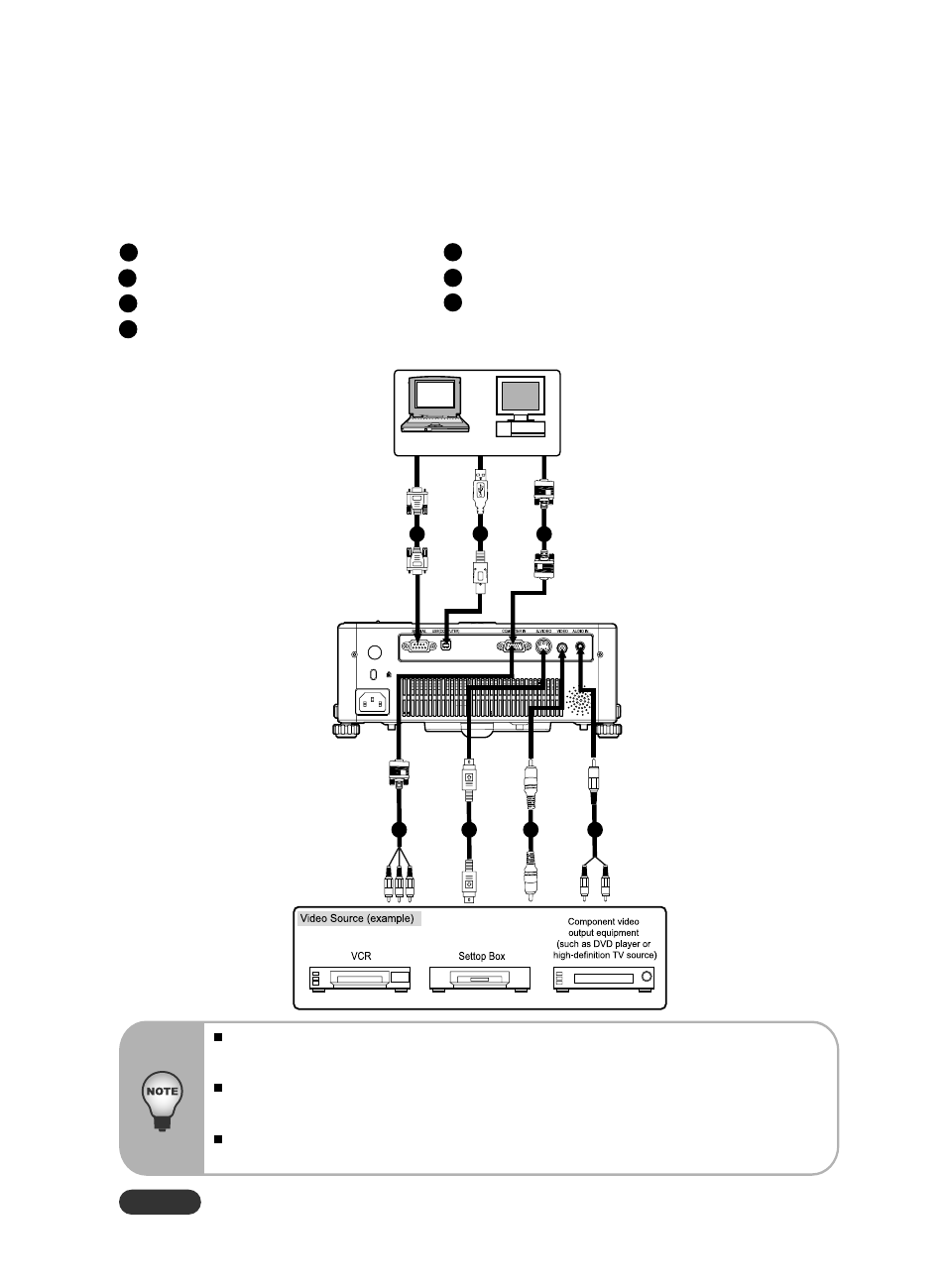

The figure above is a sample connection. This does not mean that all of
these devices can or must be connected simultaneously.
The cables that come with the projector may differ from the above
illustration. The included cables are based on actual shipment delivery.
Installation
Connecting the Projector
1
RS232 Cable
5
Composite Video Cable
2
USB Cable
6
S-Video Cable
3
VGA Cable (D-Sub to D-Sub)
7
VGA (D-Sub) to HDTV (RCA) Cable
4
Audio Cable
