+ Denotes item is part of an assembly + Denota artículo forma parte de una asamblea
++ Denotes item is part of a sub-assembly ++ Denota artículo forma parte de un submontaje
- 6 -
CS-271T
Chain Saw / Motosierra
REVISED 05/20/11
12
1
10
11
5
6
7
8
9
Canada 4
2
3

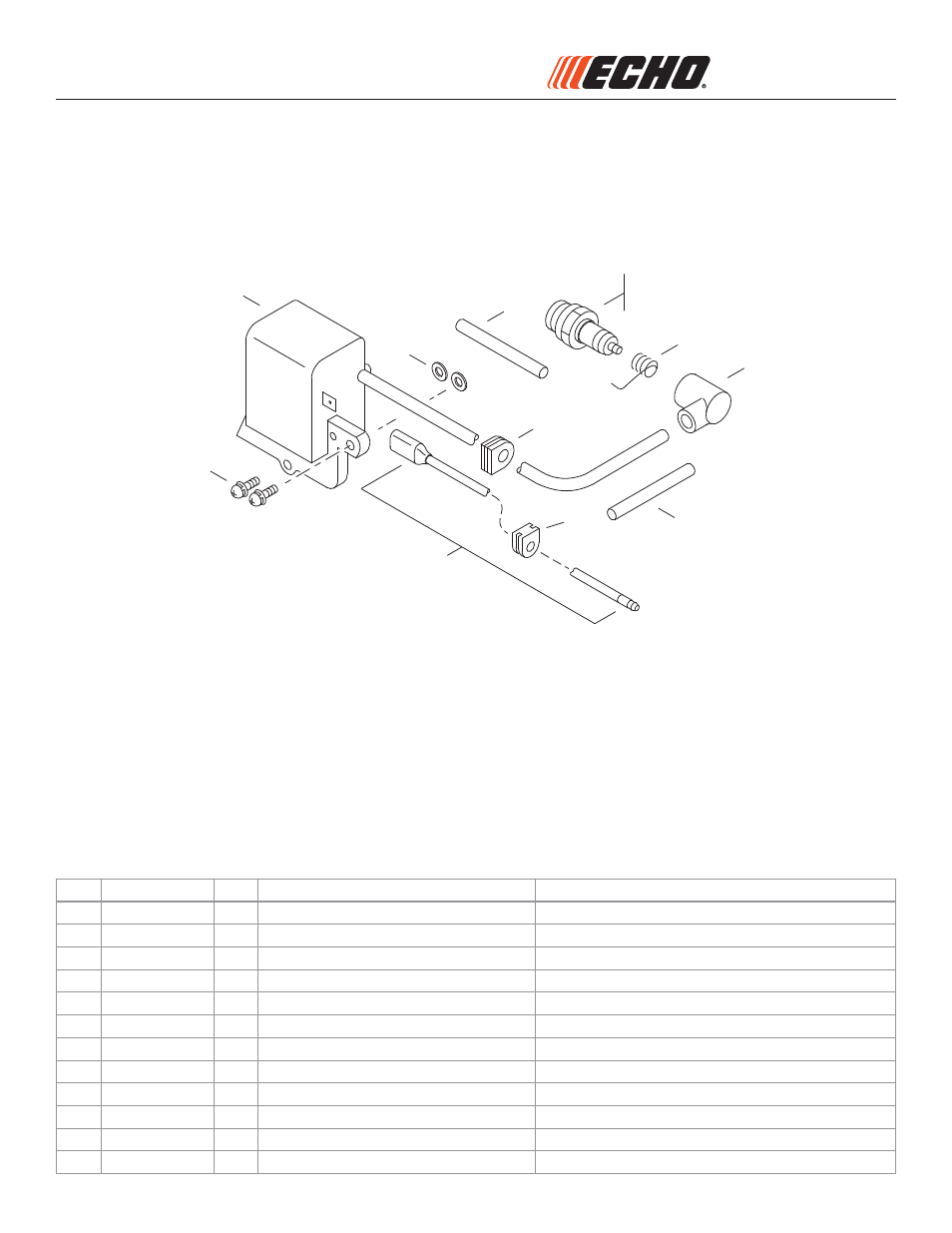

Ignition
Encendido
NO. PART NUMBER QTY. DESCRIPTION DESCRIPCIÓN
1 A411001310 1 COIL, IGNITION BOBINA DE ENCENDIDO
2 90023805018 2 SCREW 5×18 TORNILLOS 5×18
3 15011716430 2 WASHER 5.2Ч12Ч3 ARANDELA 5.2Ч12Ч3
4 V475001900 1 SLEEVE, INSULATOR 7Ч8.6Ч30 MANGUITO AISLANTE 7Ч8.6Ч30
5 V475003550 1 SLEEVE, INSULATOR 7Ч8.6Ч50 MANGUITO AISLANTE 7Ч8.6Ч50
6 A427000013 1 CAP, SPARK PLUG TAPA DE BUJÍA
7 A426000010 1 TERMINAL, SPARK PLUG TERMINAL DE BUJÍA
8 15901019830 1 PLUG, SPARK BPM-8Y BUJÍA BPM-8Y
9 A425000000 1 PLUG, SPARK BPMR-8Y BUJÍA BPMR-8Y
10 15611004920 1 GROMMET, HT CORD OJAL DE CABLE
11 15611407320 1 GROMMET OJAL
12 V485000140 1 WIRE, LEAD CABLE CONDUCTOR
