2-8 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e
STEP 2-Connecting the Video Cable
• Tilt the screen up and back to access the connection ports.
• Connect the 15-pin video cable (the ferrite bead end) to the video port on
your PC.
• Connect the other end of the video cable to the video connector on your
touchmonitor by routing the cable through the hole in the stand.
• Secure the cable to your touchmonitor and PC by turning the screws on the
connector clockwise.
• Place the cable in the cable management clip.

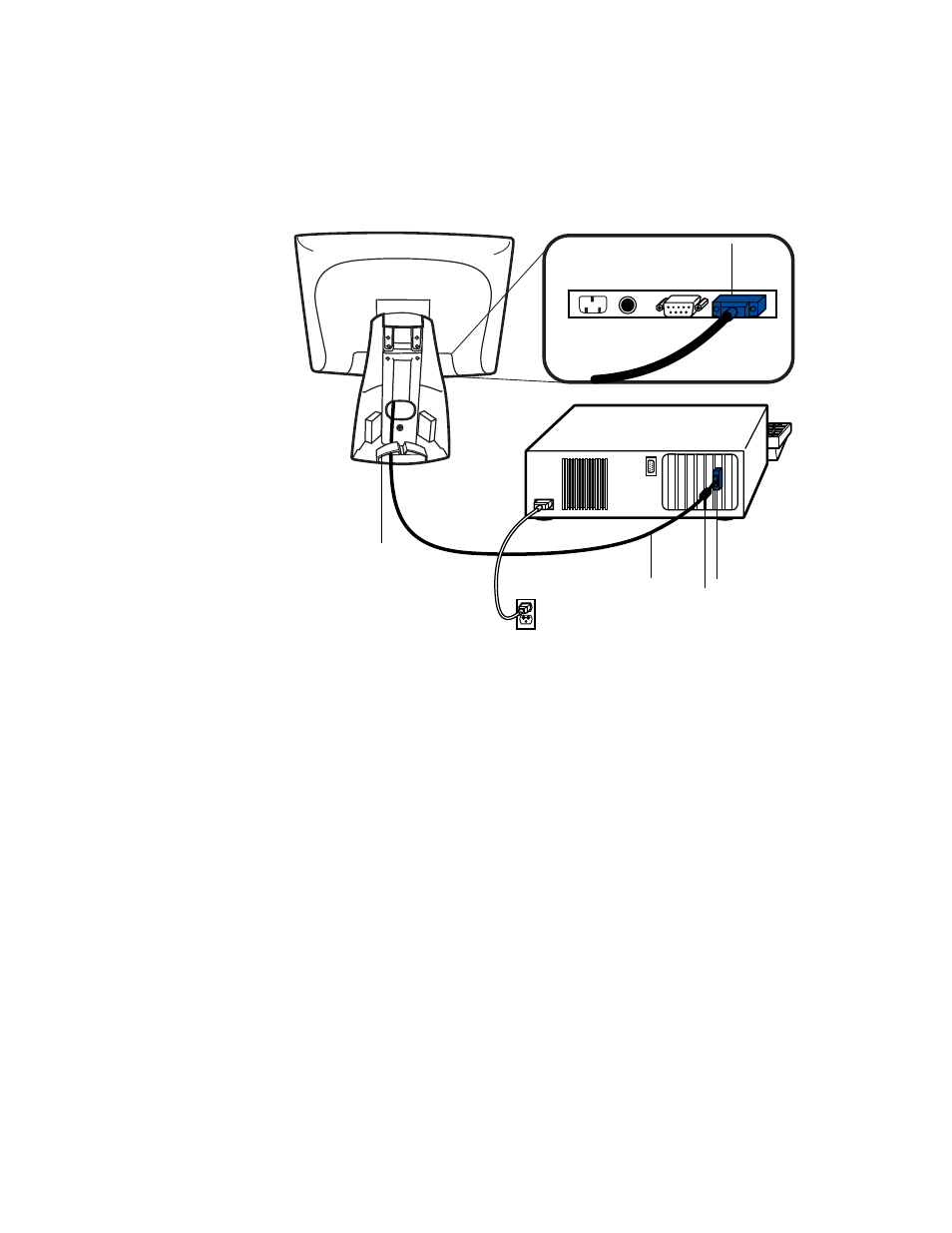

Video
cable Video
port
Female
video
connector
Connections on underside
Ferrite bead
Cable management clip
