- 13 -

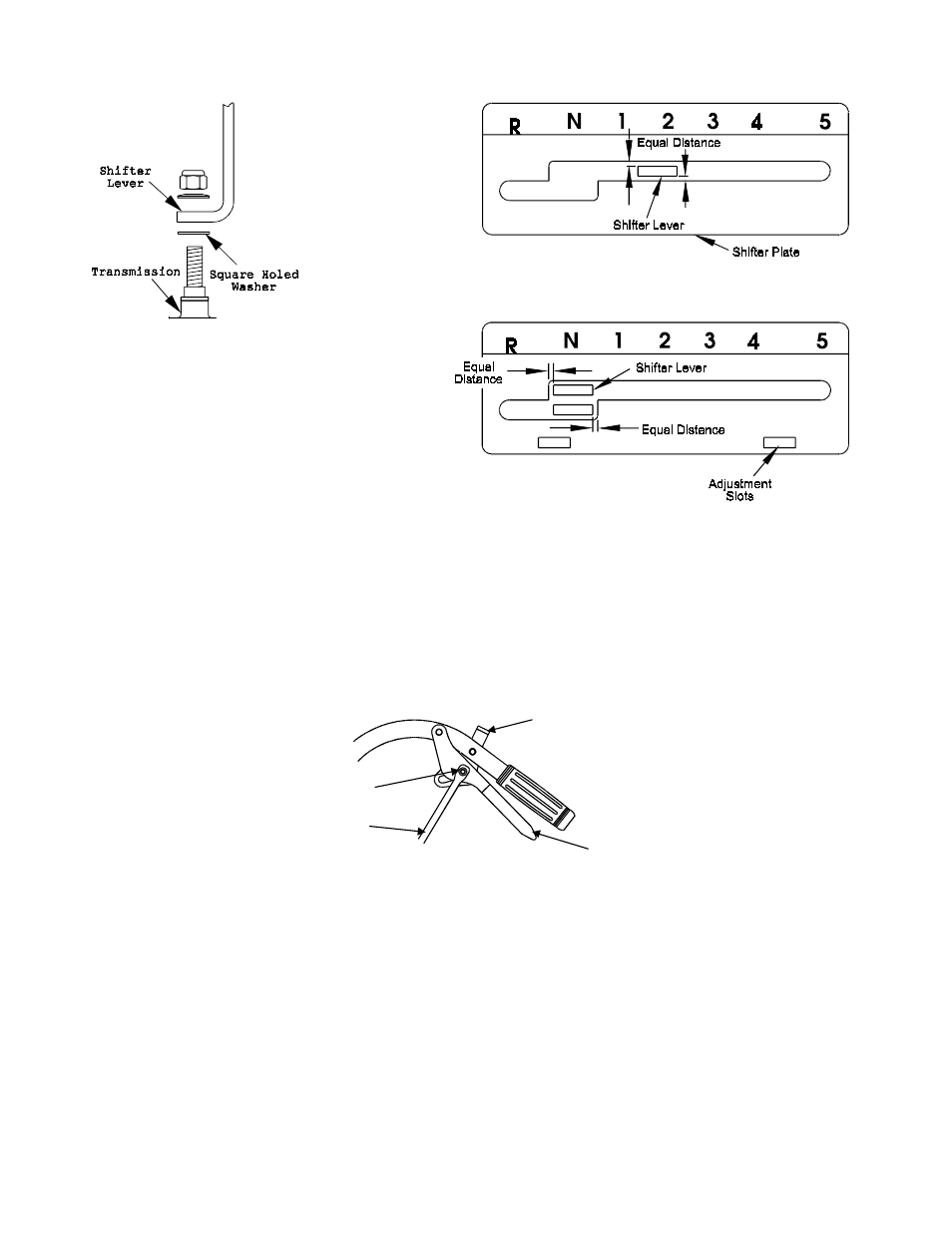

FIG. 8

THIS CLEARANCE SHOULD BE EQUAL

FIG. 7
 SHIFTER LEVER
TO TRANSMISSION

FIG. 9

THIS CLEARANCE SHOULD BE EQUAL

3.8.5 Install and adjust wheel drive linkages.

a) Screw threaded end of drive linkages into swivels in wheel drive idler arms.
b) Insert clevis pin from bolt bag through drive linkage, lever and slot in the

neutral lock/park brake latches (See Figure 10). Make proper adjustments
before adding hairpins.

FIG. 10

LEVER AND ROD

ADJUSTMENT

c) Adjust drive linkage length by threading into or out of the swivel until there is a

3/16" to 1/4" clearance between the linkage assembly and the bottom of the slot
in the neutral lock/park brake latch (See Figure 11).

Drive Lever

Neutral Lock/Park Brake

Drive Linkage

Clevis Pin
