IMPORTANT: If the mower has been completely assembled and the handle
position is changed, it will be necessary to readjust the drive and brake
linkage.

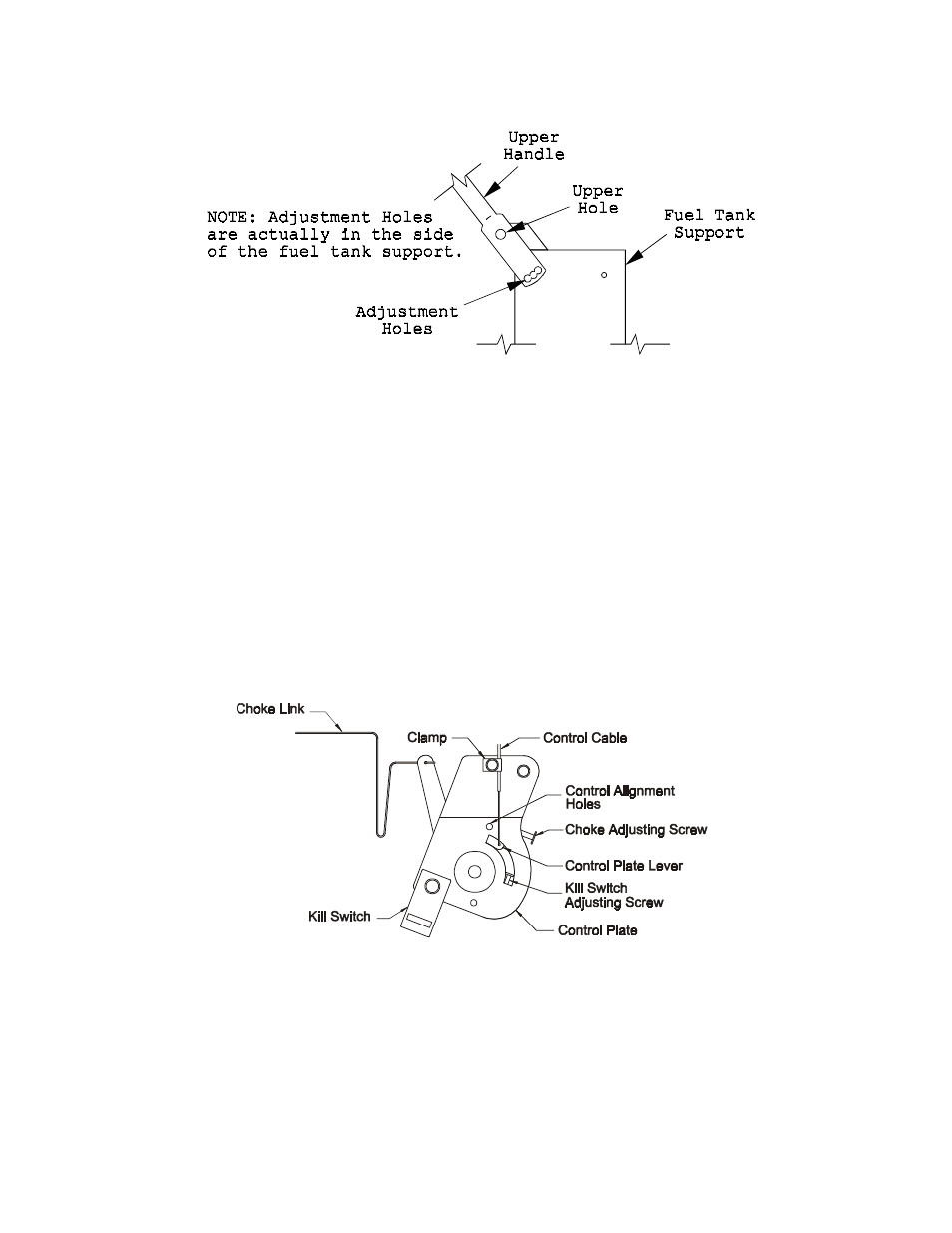

FIG. 2

UPPER HANDLE

HEIGHT ADJUSTMENT

3.8.1 Attach throttle cable to engine.

For Kohler, Kawasaki, and B&S 10.5 hp Engines with "positive" detents in
throttle cable for both idle and full throttle positions.
a) Position the throttle control lever (on console) in the full throttle (but not choke)

position. You will feel a detent when the throttle control lever is approximately
3/4" from the upper end of the slot -- this is the full throttle position.

b) Route the throttle cable along the right side of the upper handle, under the fuel

tank support and to the left side of the engine.

c) Loosen clamp on engine control plate. (See Figures 3, 4, 5, & 6). Attach inner

wire of the throttle cable to the control plate lever and position cable under
clamp, do not tighten clamp.

FIG 3

KOHLER SPEED CONTROL

(THROTTLE CABLE HOOK-UP)
