- 11 -

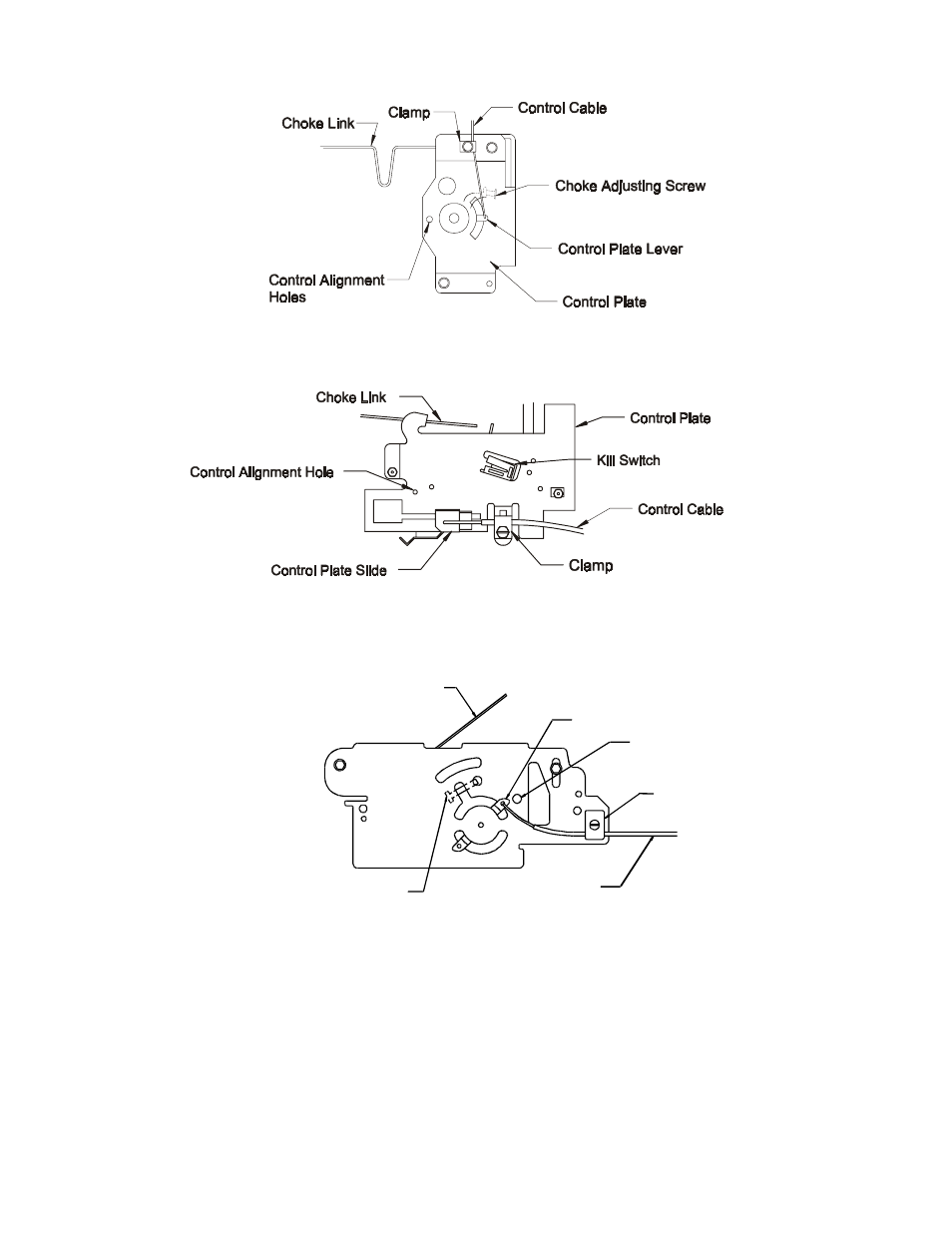

FIG 4
12.5 HP KAWASAKI SPEED CONTROL
(THROTTLE CABLE HOOK-UP)
FIG 5
B&S 10.5 HP SPEED CONTROL
(THROTTLE CABLE HOOK-UP)
FIG 6
15 & 17 HP KAWASAKI SPEED CONTROL
(THROTTLE CABLE HOOK-UP)
d) Pull cable upward for 12.5 HP Kawasaki and Kohler units (rearward for B&S or
to the right when facing the control plate on the 15 & 17 HP Kawasaki units)
until alignment holes in control plate lever and control plate line up. For
Kawasaki a 15/64 drill bit can be inserted through these two holes to align them.
For Kohler use a 19/64 drill bit. For B&S 10.5 hp use a 1/8” drill bit. Once holes
are aligned, tighten clamp onto throttle cable.
Control Alignment Holes
Control Plate Lever
Choke Link
Clamp
Control Cable
Choke Adjusting
