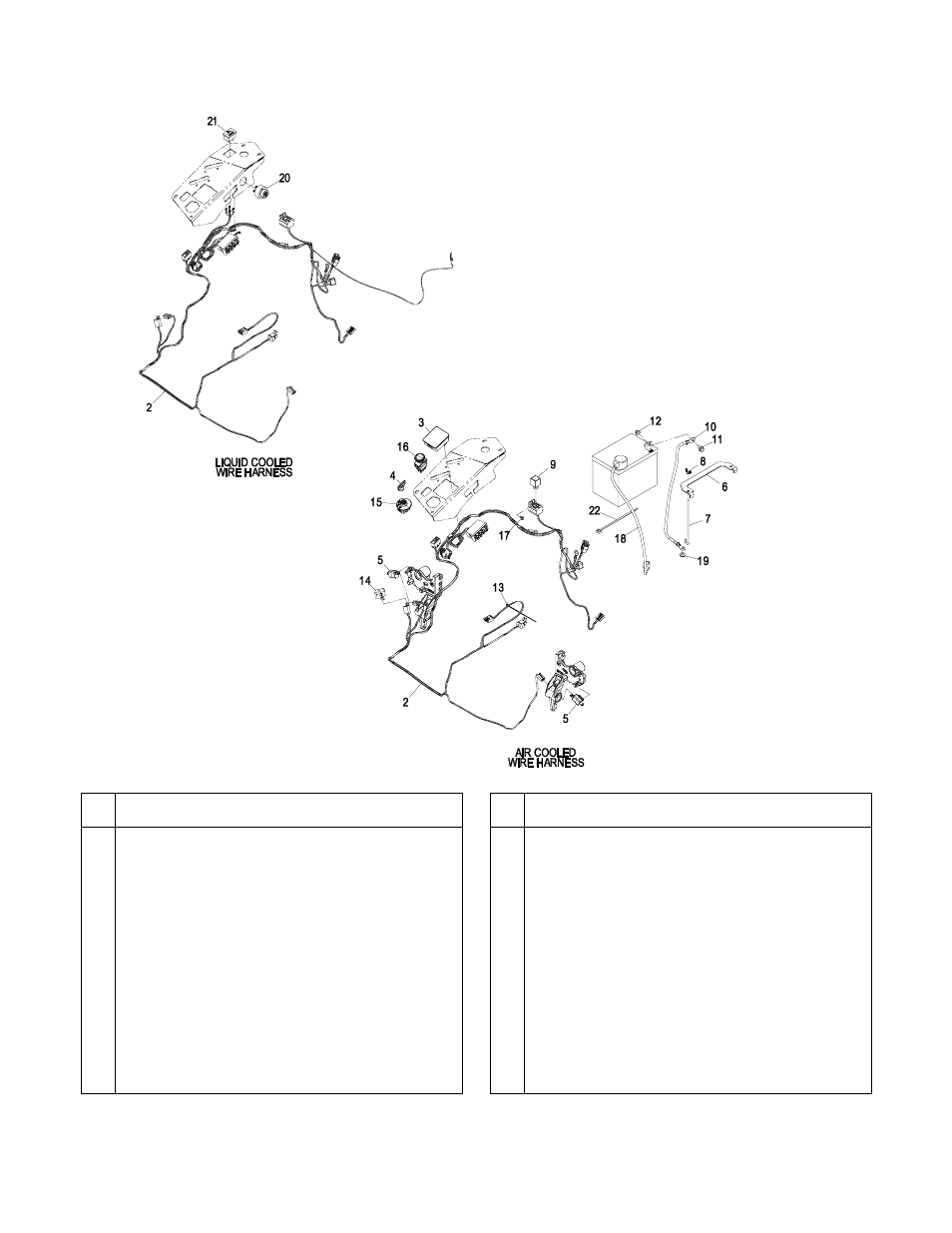

ELECTRICAL GROUP
-36-
Item Part No. Description Qty.
2V 115-3869 Harness-Wire, Main (Liquid-Cooled) ...... 1
115-2796 Harness-Wire, Main (Air-Cooled) ........... 1
2:1 103-3895 Diode-TVS ............................................. 1
2:2 218-578 Fuse-10 Amp ......................................... 1
2:3 109355 Fuse-15 Amp ......................................... 1
2:4 109102 Fuse-25 Amp ......................................... 2
2:5 116-0053 Cap-Plug ................................................ 1
3 116-0916 Fuel/Hour Meter Asm ............................. 1
4 1-603511 Key, Ignition ........................................... 1
103-2106 Key, Exmark Logo.................................. 1
5 110-6765 Switch-Single Pole N.O. ......................... 2
6 116-0042-03 Strap-Tie Down, Battery ......................... 1
7 1-633651 Bolt-Holddown........................................ 2
8 1-543792 Wingnut, Nyloc 1/4-20............................ 2
Item Part No. Description Qty.
9 1-643275 Relay, 12VDC 40 Amp ........................... 1
10 114-1218 Cable-Battery, Negative ......................... 1
11
3234-5 Screw, HH FLG 5/16-18 x 3/4 ................ 2
12 104-8300 Nut, Nyloc 5/16-18 Flg ........................... 2
13 1-303287 Tie, Cable 5 1/2 (Small) ......................... 3
14 82-2190 Switch .................................................... 1
15 116-0229 Switch, Ignition ...................................... 1
16 116-0124 Switch, PTO 10A ................................... 1
17 104-2065 Screw, HWH #10-24 x 3/8 ..................... 1
18 115-3864 Cable-Battery, Positive .......................... 1
19
3256-24 Washer, 3/8 SAE ................................... 1
20 103-0205 Alarm, Dual Tone 12VDC ...................... 1
21 110-0941 Gauge-Temperature .............................. 1
22 1-303335 Tie, Cable 7 15/16 (Large) ..................... 1
Exmark black touch up spray paint - gloss black.
V
Use dielectric grease on all wiring harness connectors.
