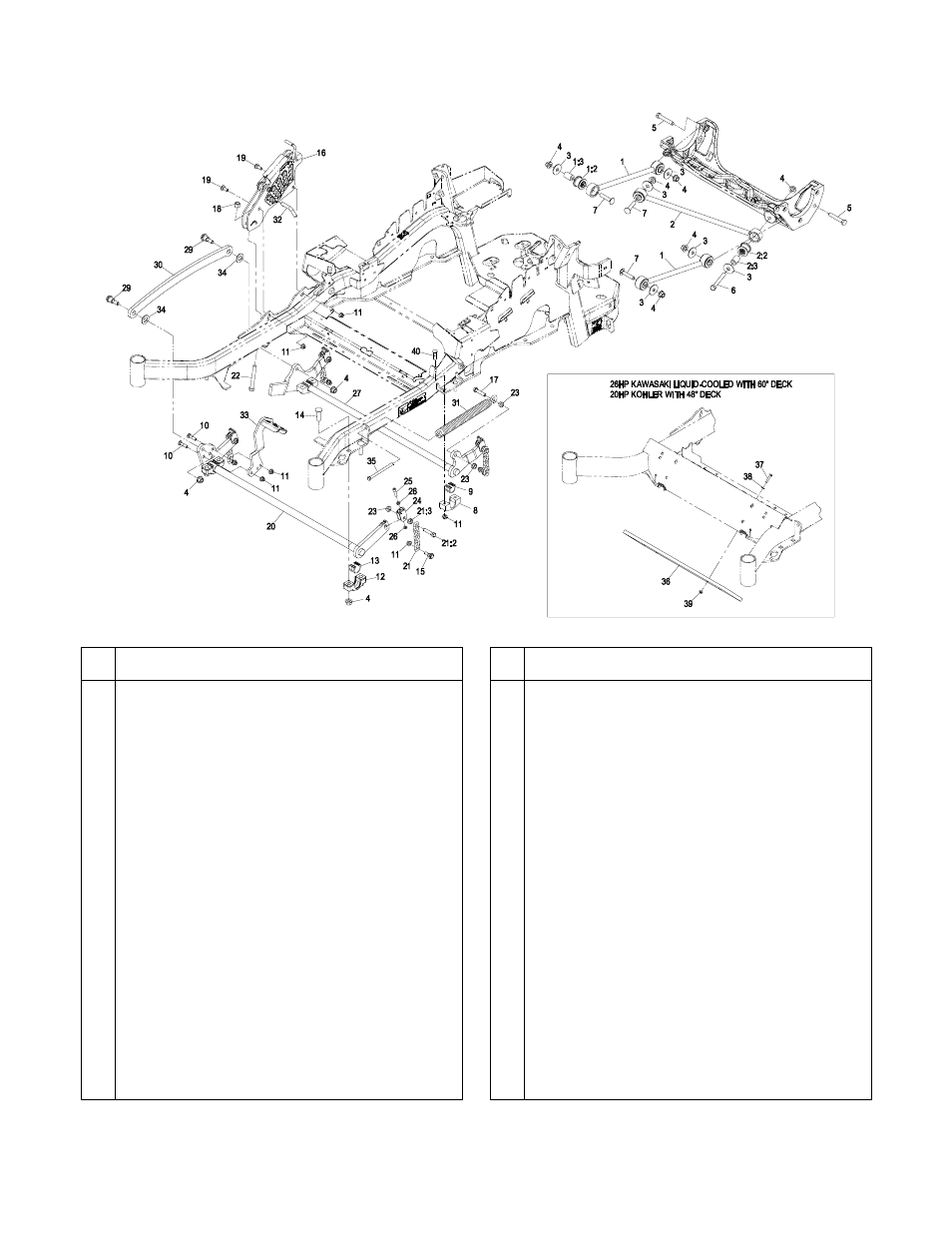

DECK SUPPORT GROUP
-20-
Item Part No. Description Qty.
1 109-7952 Asm, Deck Strut .....................................2
1:2 109-5009 Bushing-Suspension, Rubber................. 2
1:3 109-5010 Spacer ................................................... 2
2 109-5013 Asm, Panhard Rod ................................1
2:2 109-5009 Bushing-Suspension, Rubber................. 2
2:3 109-5010 Spacer ................................................... 2
3 86-1990 Washer ..................................................6
4 99-5107 Nut, Lock 1/2-13 ....................................12
5 325-12 Screw, HH 1/2-13 x 3 .............................2
6 325-17 Screw, HH 1/2-13 x 4 .............................1
7 3233-34 Bolt, Carriage 1/2-13 x 2 1/2 ..................3
8 116-0818-03 Housing, Bearing ...................................2
9 109-7173 Liner, Bearing ........................................2
10 3231-4 Bolt, Carriage 3/8-16 x 1 1/2 ..................2
11 104-8301 Nut, Nyloc 3/8-16 Flg .............................12
12 109-9409 Support, Bearing Cross Shaft Front .......2
13 109-9410 Liner, Bearing ........................................2
14 9002719 Screw, Carriage 1/2-13 x 2 .....................4
15 109-9840 Screw, Hex Flange 3/8-16 x .80 .............4
16 109-7438 Asm, Height Of Cut ................................1
17 109-9065 Screw, HH 7/16-14 X 2 ..........................1
18 3296-23 Nut, Nyloc 1/2-13 ...................................1
Item Part No. Description Qty.
19 3231-2 Bolt, Carriage 3/8-16 x 1 ........................ 2
20 116-0465-03 Wld, Deck Lift Front ............................... 1
21 116-0756 Asm, Deck Lift Chain ............................. 4
22 116-0559 Bolt, 1/2-13 x 4 ...................................... 1
23 32128-37 Nut, Whizlock 7/16-14 ........................... 6
24 109-9066 Yoke, Deck Adjust ................................. 4
25 3274-18 Screw, SH 5/16-18 x 1 1/4 ..................... 4
26 3218-2 Nut, Jam 5/16-18 ................................... 8
27 116-0459-03 Wld, Deck Lift Rear ............................... 1
29 116-0780 Screw, Shoulder HHF 1/2-13 x 1.12 ....... 2
30 116-0797-03 Link, Deck Lift As ................................... 1
31 116-0000 Asm, Extension Spring (60” & 72”)......... 1
116-0886 Asm, Extension Spring (48” & 52”)......... 1
32 109-8757 Pin, Hoc ................................................. 1
33 109-9071-01 Wld, Foot Lever ..................................... 1
34 3256-28 Washer, 3/4 SAE ................................... 2
35 323-58 Bolt, HH 3/8-16 x 6 Tap ......................... 1
36 116-0827-01 Weight, Toe Board................................. 1
37
321-8 Screw, HH 1/4-20 x 1 1/4 ....................... 4
38 3256-22 Washer, 1/4 SAE ................................... 4
39 104-7201 Nut, Nyloc 1/4-20 Flg ............................. 4
40 3231-5 Bolt, Carriage 3/8-16 x 1 3/4 .................. 4
Exmark red touch up paint (spray paint – P/N 1-850337 - .6 oz liquid bottle – P/N 103-9140)
