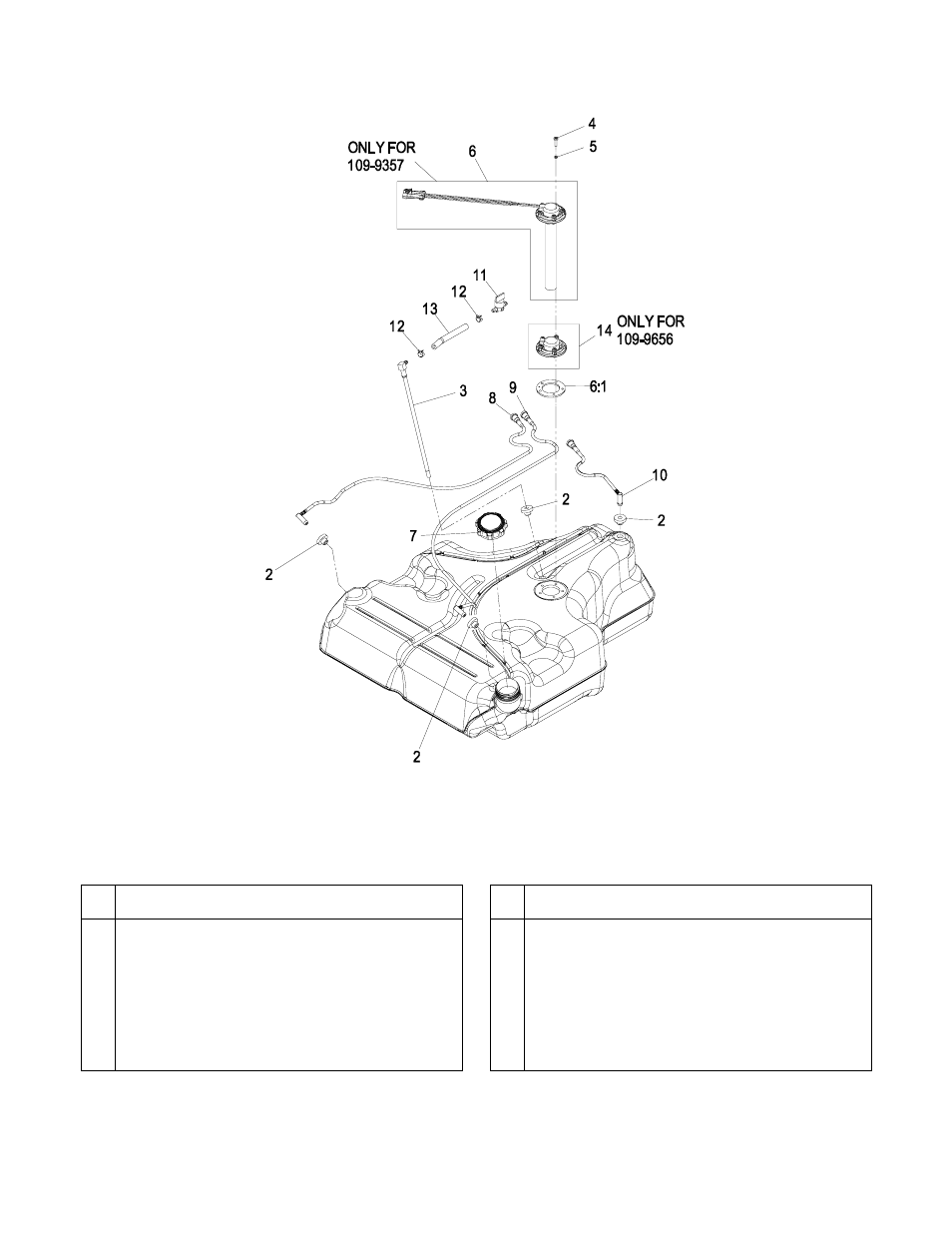

FUEL TANK ASSEMBLY – 109-9357 & 109-9656
-29-
Item Part No. Description Qty.
2 46-6560 Bushing ..................................................4
3 109-9364 Fitting, Fuel W/Line And Screen ............1
4 9107944 Screw-Pan .............................................5
5 3253-17 Washer, Lock 3/16 .................................5
6 116-0003 Sender, Fuel Level
W/Gasket & Tube (109-9357 only) .........1
6:1 109-9620 Gasket ...................................................1
7 109-9619 Cap, Fuel ...............................................1
Item Part No. Description Qty.
8 109-9447 Tube, RH Vent ....................................... 1
9 109-9448 Tube, LH Vent ....................................... 1
10 109-9449 Tube, Rear Vent .................................... 1
11 1-603770 Valve, Fuel ............................................ 1
12 2412-98 Clamp, Hose .......................................... 2
13 109-0650 Hose-Fuel .............................................. 1
14 109-9678 Cover,
Plastic
Fuel Tank (109-9656 only) ..................... 1
