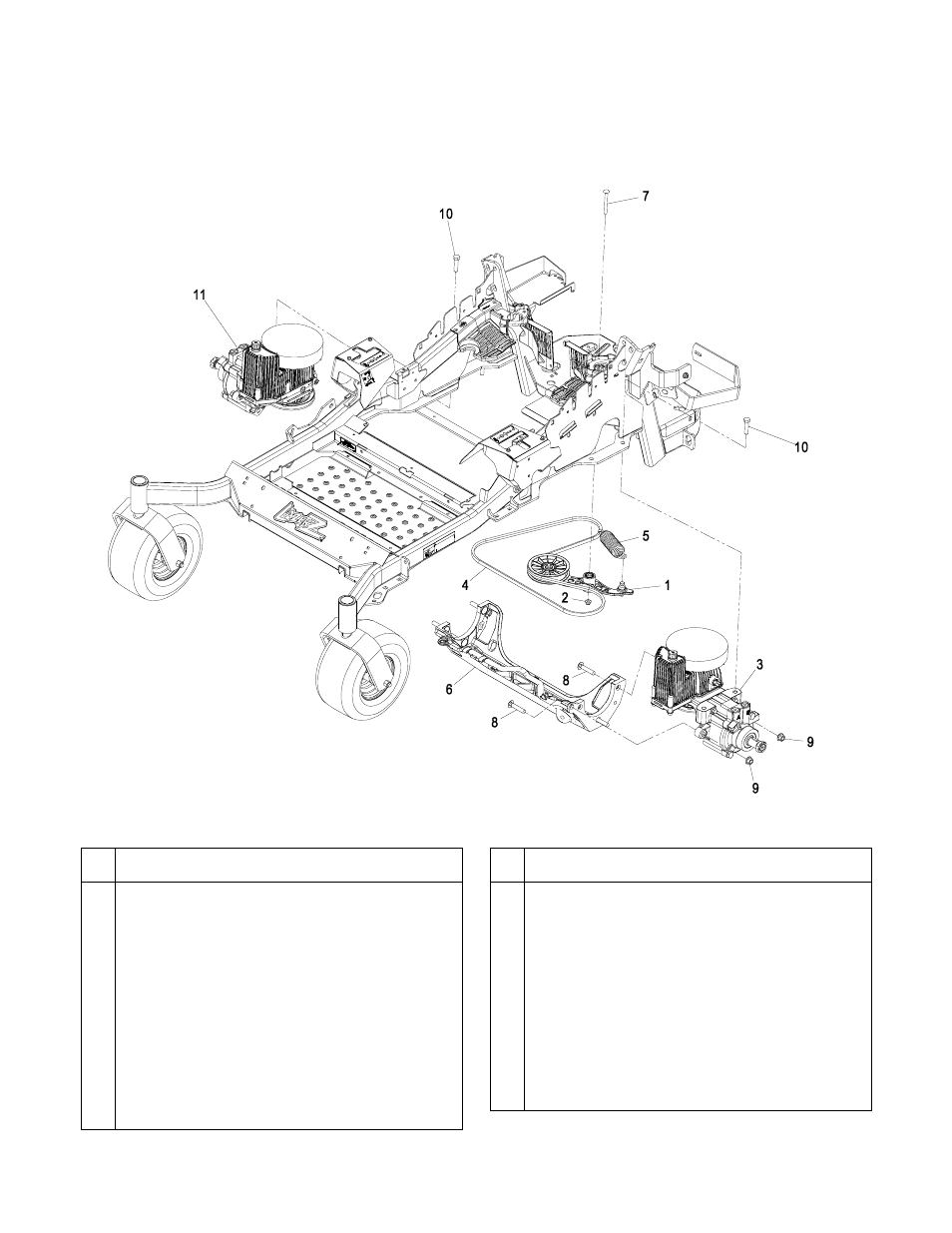

HYDRAULIC GROUP
-34-
Item Part No. Description Qty.
1 109-2182 Asm, Pump Idler ....................................1
2 109-6658 Nut, Nyloc 3/8-16 Flg .............................1
3 116-1322 Asm, Hydro LH 12CC
W/Check (48” & 52”) ..............................1
116-1324 Asm, Hydro LH 12CC
W/Shock (60” & 72”) ..............................1
4 109-3388 Belt, V ....................................................1
5 116-0133 Spring, Extension ...................................1
6 109-9375 Cradle, Machined Hydro ........................1
7 3231-41 Bolt-Carriage ..........................................1
8 3233-34 Bolt, Carriage 1/2-13 x 2 1/2 ..................6
9 99-5107 Nut, Lock 1/2-13 ....................................6
10 325-8 Screw, HH 1/2-13 x 1 1/4 .......................4
Item Part No. Description Qty.
11 116-1323 Asm, Hydro RH 12CC
W/Check (48” & 52”) .............................. 1
116-1325 Asm Hydro, RH 12CC
W/Shock (60” & 72”) .............................. 1
12 117-0377 Bracket, Anchor Cable ........................... 2
13 116-0164 Filter, Hydro ........................................... 2
14 116-0233 Fan, Hydro ............................................. 2
15 116-0234 Pulley, Hydro ......................................... 2
16 116-0235 Handle, Hydro Bypass Valve ................. 2
17 116-0236 Dipstick, Hydro ...................................... 2
18 116-0237 Gasket, Hydro Dipstick .......................... 2
19 109-9828 Oil, Exmark Premium Hydro .................. 4
Not shown
