SYSTEM CONNECTION

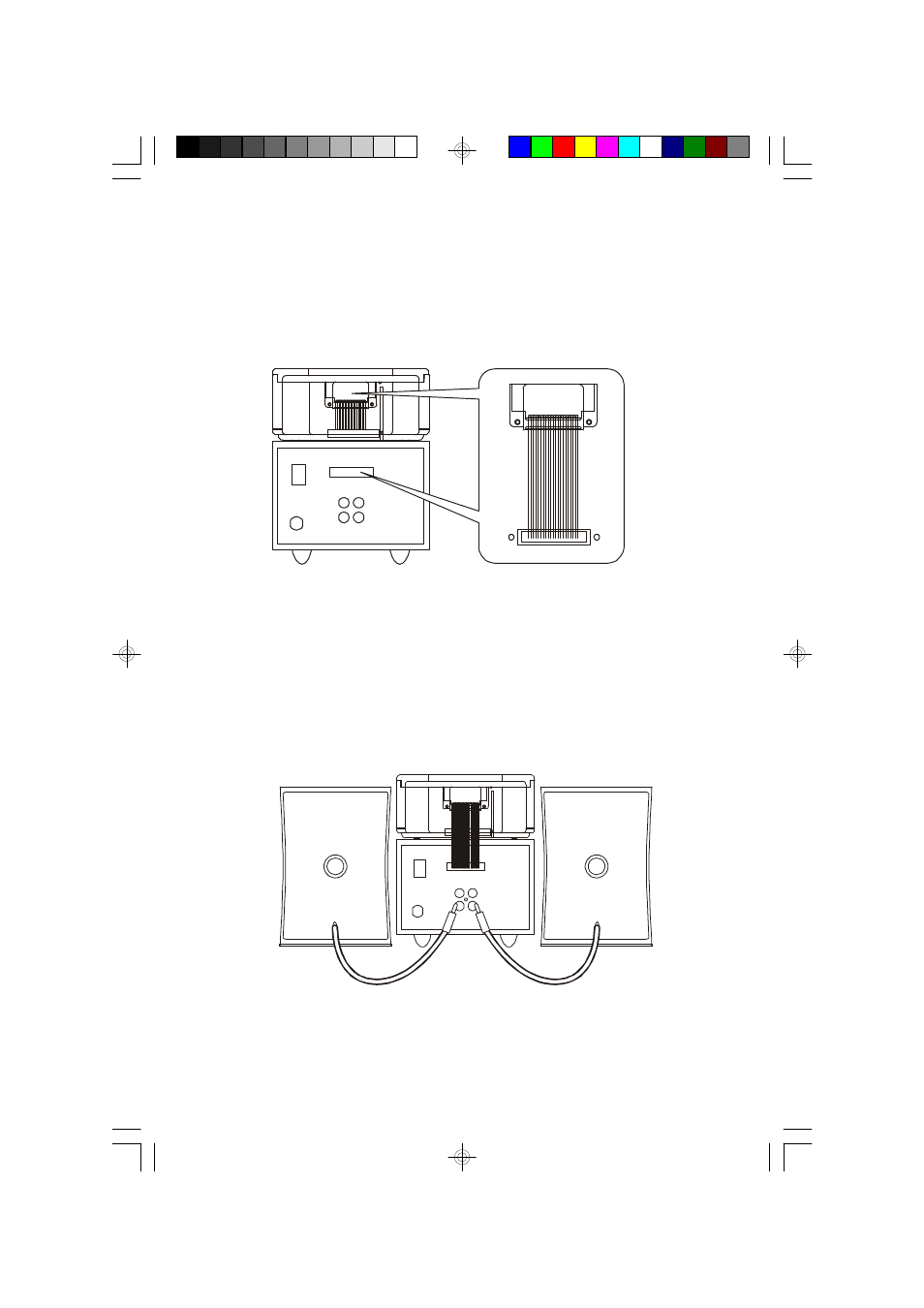

Place the Tuner/CD Player unit on top of the Amplifier/Subwoofer unit. Note that
there is a multi-pin ribbon cable permanently attached to the back of the Tuner/CD
Player unit. The multi-pin plug at the end of this ribbon cable must be connected to
the multi-pin socket on the back of the Amplifier/Subwoofer unit.
SPEAKER CONNECTIONS
Connect the two “Thinovation ™ ” Flat Panel speakers to the color-coded “L” and
“R” speaker jacks on the back of the Amplifier/Subwoofer unit. Make sure that the
speaker plugs are fully inserted into the speaker jacks. If the plugs are loose the
connection may be intermittent.
R L
