SpeedStream Router User Guide
45

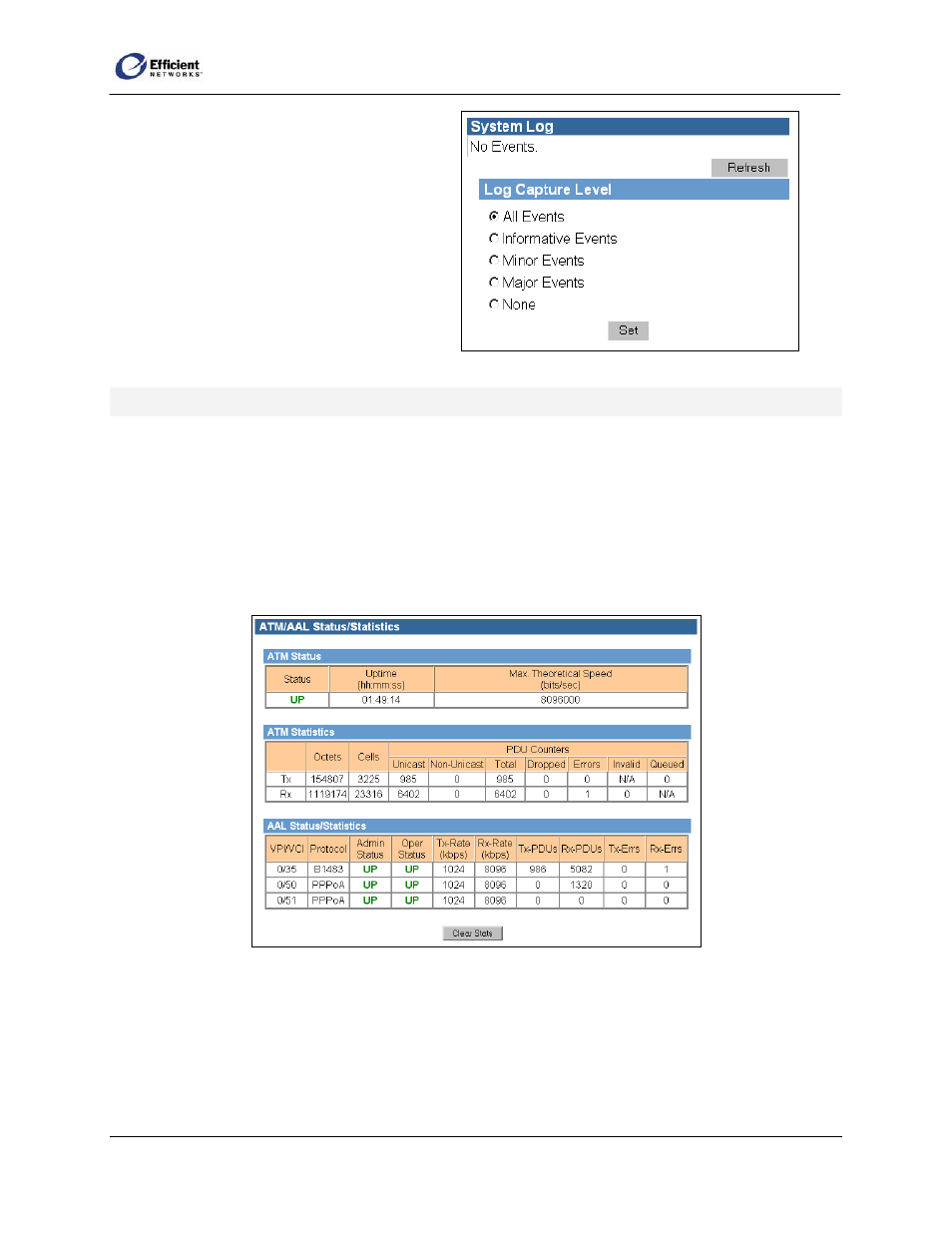

To display the System Log screen:
•
From the main menu, click Status and
Statistics, and then click System Log.
The System Log screen displays.
To update the display :
•
Click Refresh.
Status and Statistics Screens
These screens display data pertaining to ATM/AAL, DSL, Ethernet and USB traffic, including whether
the connection is Up (green) or Down (red).
ATM/AAL Status/Statistics
•
From the main menu, click Status and Statistics, and then click ATM/AAL.
The ATM/AAL Status/Statistics screen displays.
