Door removal and reversal
instructions:
1. Remove toe grille.
2. Remove top hinge cover. Trace around the
hinge with a soft lead pencil. This makes
reinstallation easier. Remove top hinge
and lift door off center hinge pin. Set door
aside.
3. Unscrew center hinge pin using adjustable
wrench and save for reassembly. Ensure
plastic washer stays on hinge pin.
4. Lift refrigerator door off of bottom hinge
and set aside.
5. Remove center hinge and shim by
removing inside screw and loosening two
outside screws enough to allow hinge and
shim to slide out. Tighten screws.
6. Loosen two outside screws on opposite
side of refrigerator, remove inside screw
and install center hinge.
7. Remove two screws on bottom hinge with
3/8” socket wrench.
8. Install bottom hinge on opposite side with
the two screws removed from step 7.
9. Unscrew bottom hinge pin using
adjustable wrench. Move hinge pin to
other hole in hinge and tighten with
adjustable wrench.
10. Reverse door handles (see instruction on
next page).
11. Move freezer and refrigerator door stops
to opposite side. Before starting screws,
use an awl to puncture the foam.
12. Position refrigerator door onto bottom
hinge pin and screw center hinge pin
through center hinge into top of door. Close
refrigerator door to help align hinge hole.
13. Tighten center hinge pin with adjustable
wrench.
14. Remove cabinet and hinge hole plugs and
move to opposite side.
15. Lower freezer door onto center hinge pin.
16. Close freezer door. Have an assistant
lift up on opposite side of door while
tightening screws to install top hinge.
17. Flip toe grille and reinstall.
18. Plug in electrical power cord and turn
refrigerator temperature control to center
position. Adjust setting as necessary.

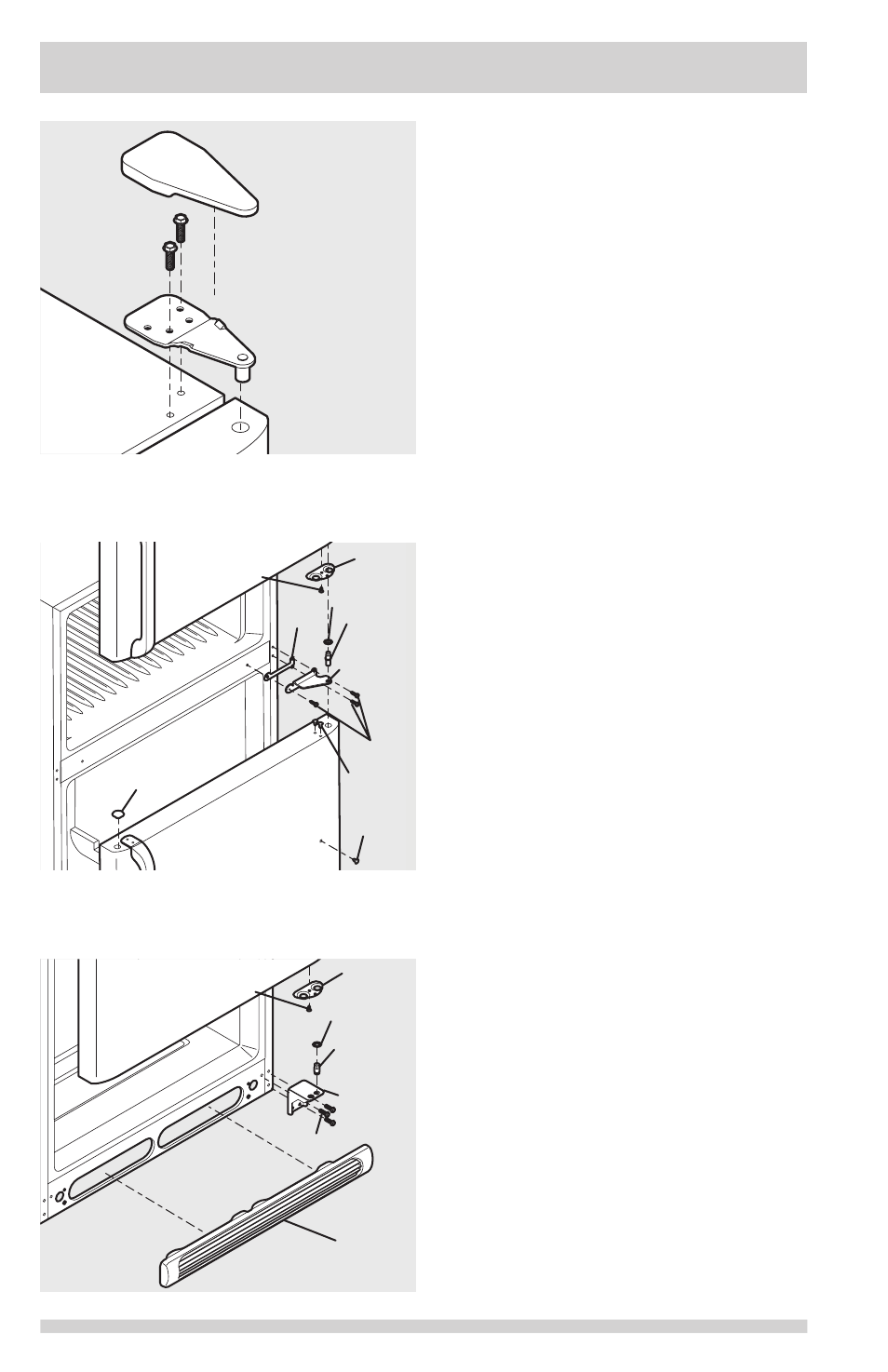

Door Stop
Screw
Door
Stop
Washer
Hinge
Pin
Center
Hinge
Handle
Hole
Plugs
Shim
Screws
Hinge Hole
Plug
Washer
Hinge
Pin
Bottom
Hinge
Screws
Toe
Grille
Door Stop
Screw
Door
Stop
Top Hinge
Cover
Top Hinge
DOOR REMOVAL / REVERSAL INSTRUCTIONS
