16
DOCUMENT LED (Green)
• Lights when the scanner is ready to process documents in the ASF/SF or while the scanner is
processing documents.
• Flashes when the scanner is waiting for document insertion.
• Out except for the cases above.

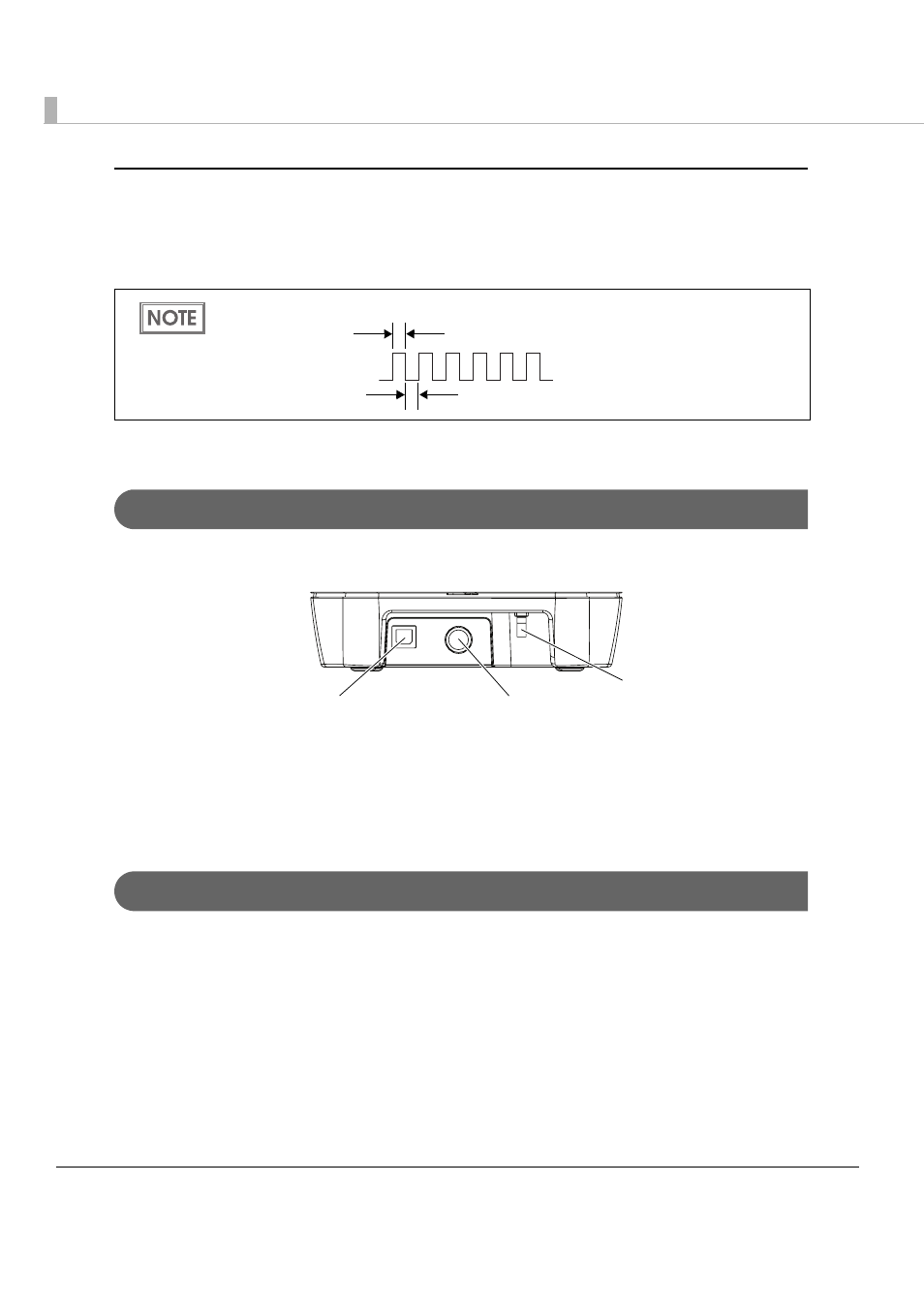

Connectors
All cables are connected to the connector panel on the lower rear of the scanner.
• Power supply connector: Connects the power supply unit
• USB connector: Connects the scanner with the host computer interface.
• USB cable securing hook: Hooking the USB cable on the USB cable securing hook prevents
the cable from falling off.
Offline
The scanner automatically goes offline under the following conditions:
• During power on (including resetting with the interface) until the scanner is ready
• When the scanner cover is opened.
• When the franker cover is opened.
• When an error has occurred.
When waiting for document removal, the ERROR LED flashes as shown below.
Approx.160 ms
Approx.160 ms
USB connector
USB cable securing hook
Power supply connector
