3.2 INSTALLING OCD01 TO THE MOWER DECK

3.2.1 Remove discharge chute from deck.

For UltraCut Decks: Remove and discard discharge chute and hardware. Decks with
serial numbers 669,999 and lower require a flexible discharge chute, kit # 109-3860.
The kit is not supplied with the OCD01 accessory and needs to be purchased
separately.

For Triton Decks: Remove and retain the discharge chute and hardware.

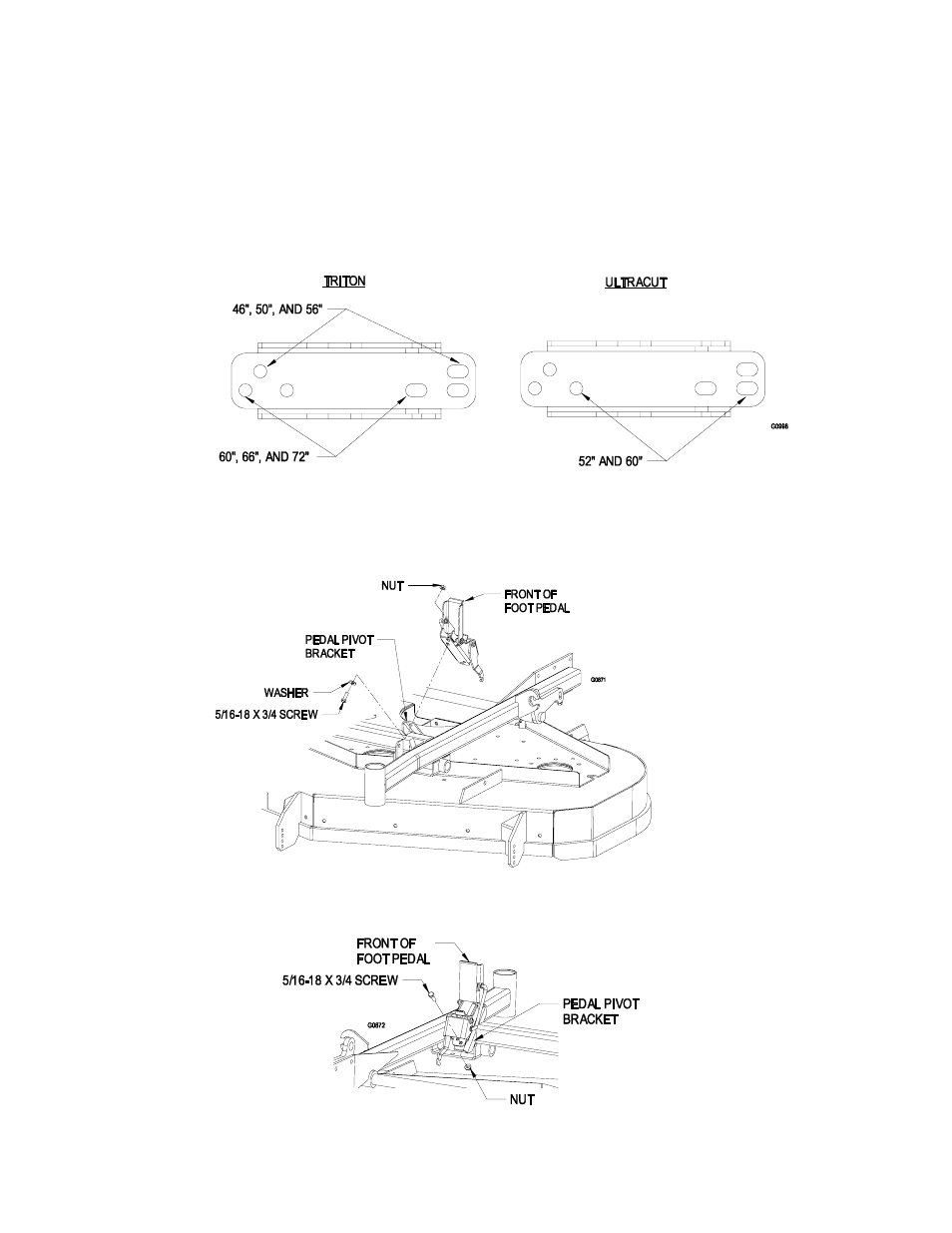

3.2.2 Use Figure 2 to locate the correct mounting holes on the pedal pivot bracket.









FIGURE

2

3.2.3 Install the foot pedal on the pedal pivot bracket. The upper screw, 5/16-18 x 3/4 (item 4)

installs from the bottom of the pedal pivot bracket as shown in Figure 3. Fasten with
whizlock nut (item 7).











FIGURE

3

3.2.4 The lower screw installs from the top down as shown in Figure 4. Fasten with whizlock

nut (item 7).





FIGURE 4
