17
7. PARTS LIST

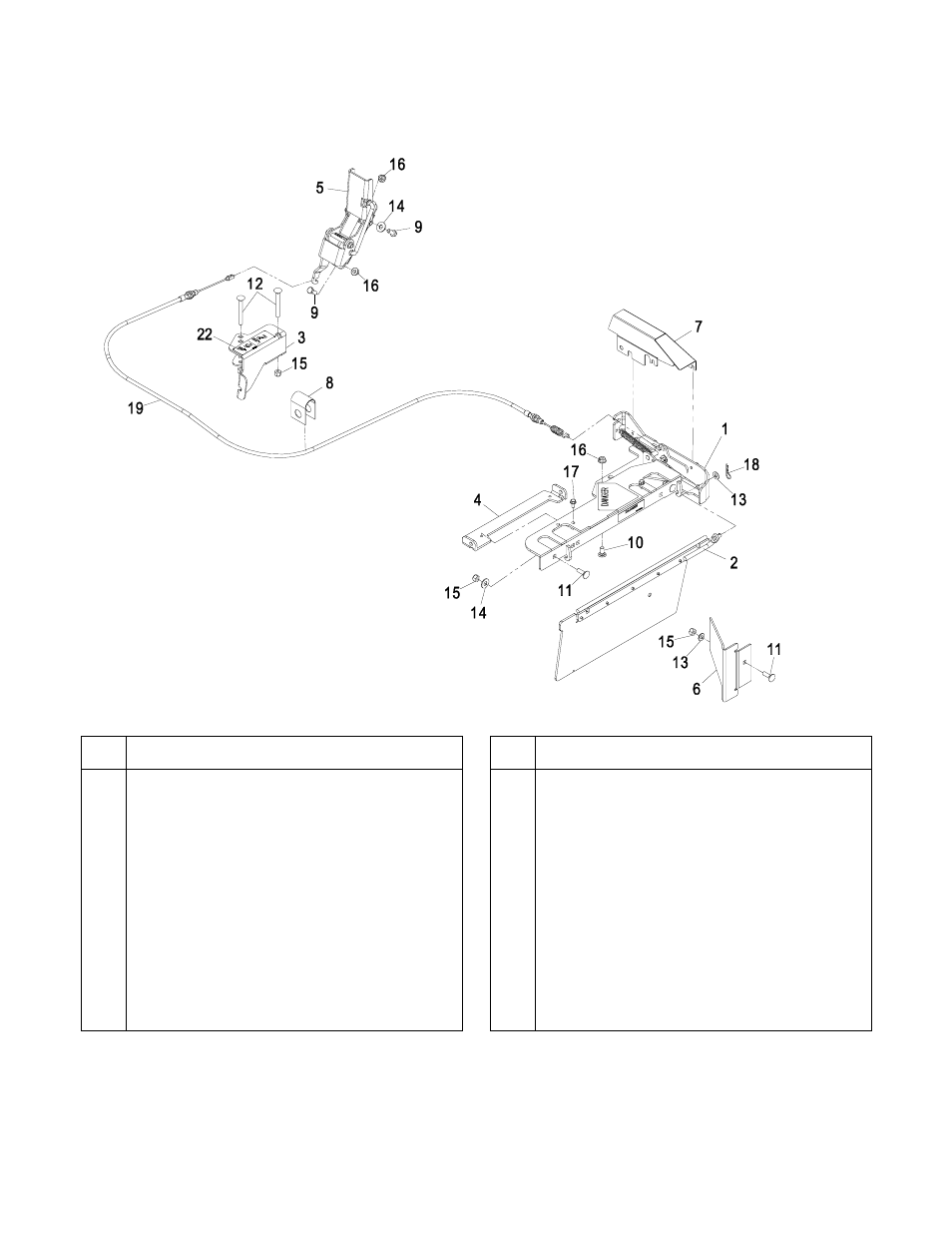

7.1 OCD01 ASSEMBLY
Item
Part No.
Description
Qty.
1 109-3603 Asm, Gate Linkage W/Decals............... 1
2 109-3605 Asm, Gate ............................................ 1
3 109-3880 Asm, Cable Bracket W/Decal ............... 1
4 109-3881-01 Bracket, Chute Pivot (Ultra Cut) ........... 1
5 109-3884 Pedal, Foot ........................................... 1
6 109-4089-01 Plate, Blocker (Triton)........................... 1
7 109-4097-01 Cover, Linkage ..................................... 1
8 109-4101 Strap, Cable Hanger............................. 1
9 322-3 Screw, HH 5/16-18 x 3/4....................... 2
10 3230-1 Bolt, Carriage 5/16-18 x 3/4 .................. 1
11 3230-2 Bolt, Carriage 5/16-18 x 1 (Ultra Cut).... 2
3230-2 Bolt, Carriage 5/16-18 x 1 (Triton)......... 3
12 3230-9 Bolt, Carriage 5/16-18 x 2 3/4 (Ultra Cut) . 2
3230-9 Bolt, Carriage 5/16-18 x 2 3/4 (Triton)... 1
Item
Part No.
Description
Qty.
13 3256-23 Washer, 5/16 SAE (Ultra Cut) .............. 1
3256-23 Washer, 5/16 SAE (Triton) ................... 2
14 3256-3 Washer, 5/16 Std (UltraCut) ................. 7
3256-3 Washer, 5/16 Std (Triton) ..................... 3
15 3296-29 Nut, Nyloc 5/16-18 (Triton) ................... 4
16 32128-20 Nut, Whizlock 5/16-18 .......................... 3
17 9266714 Screw, HWH 1/4-20 x .50 (Ultra Cut).... 6
18 1-806003 Pin, Hair ............................................... 1
19 109-3606 Asm, Cable 60” –72” ............................ 1
V 109-3882 Asm, Cable 46”–56” ............................. 1
20 „ 109-4091 Template, Small Chute Cut Pattern...... 1
109-3592 Template, Large Chute Cut Pattern...... 1
21 „ 322-6 Screw, HH 5/16-18 x 1 1/4 (UltraCut) ... 1
22 109-3595 Decal, OCD01 Operation...................... 1
Used for Triton (series 5) decks 60”, 66”, & 72” (long cable)
V Used for Triton (series 5) decks 46”, 50”, & 56” and Ultra Cut (series 4) decks 52” & 60” (short cable)
Q Not shown.
