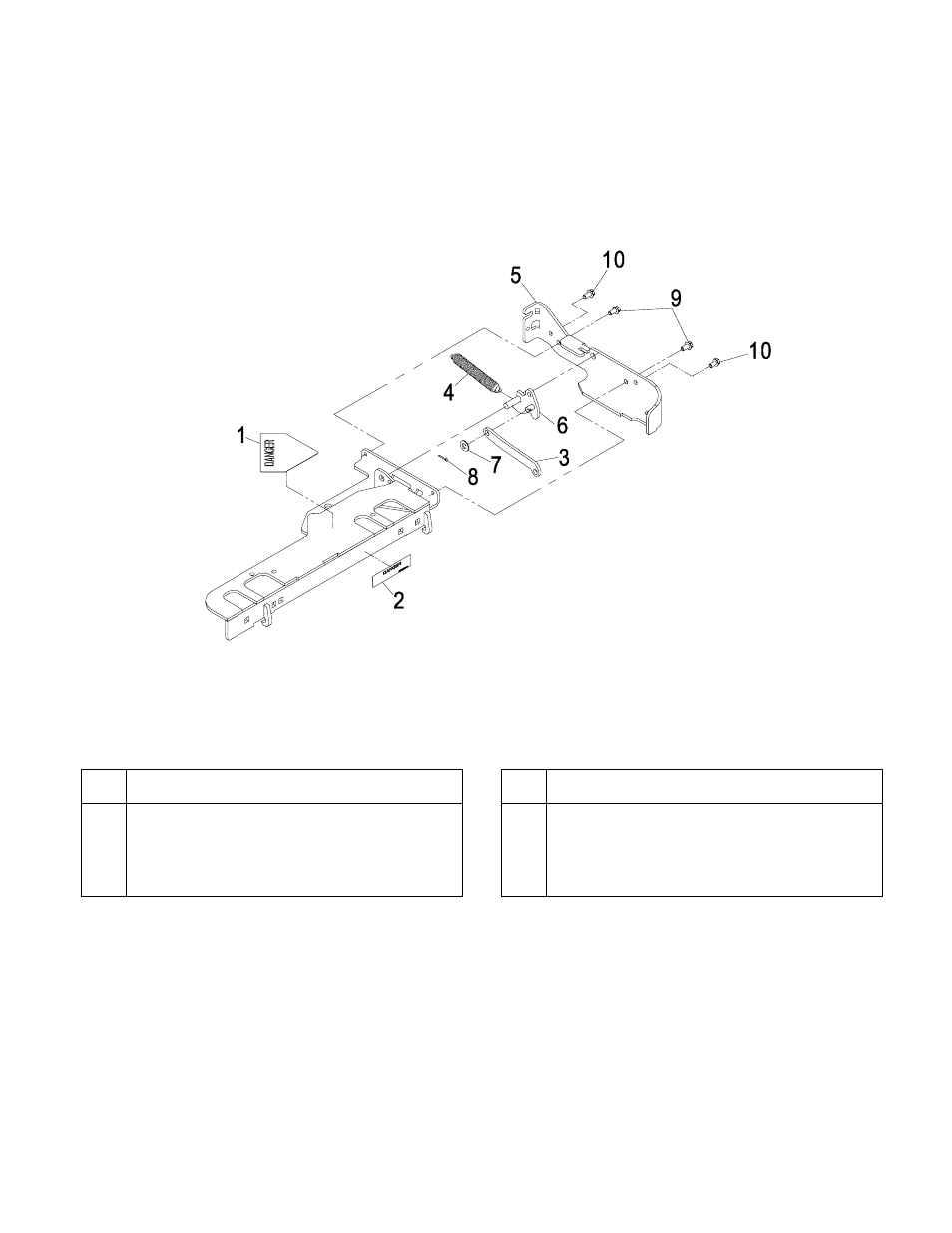

7.2 COMPONENTS FOR 109-3603 ASSEMBLY
Item
Part No.
Description
Qty.
1 1-403005 Decal, Danger ...................................... 1
2 98-5954 Decal, Danger ...................................... 1
3 109-3600 Link, Gate ............................................ 1
4 109-3604 Spring, Extension ................................. 1
5 109-4093-01 Bracket, Link Pivot................................ 1
Item
Part No.
Description
Qty.
6 109-4096 Wld, Gate Crank .................................. 1
7 3256-23 Washer, 5/16 SAE ............................... 1
8 3272-5 Pin, Cotter 3/32 x 1/2 ........................... 1
9 9266714 Screw, HWH 1/4-20 x .50..................... 2
10 9266934 Screw, HWH 5/16 x 1/2 TF .................. 2
