Exmark OCD01 User Manual
Page 13
9

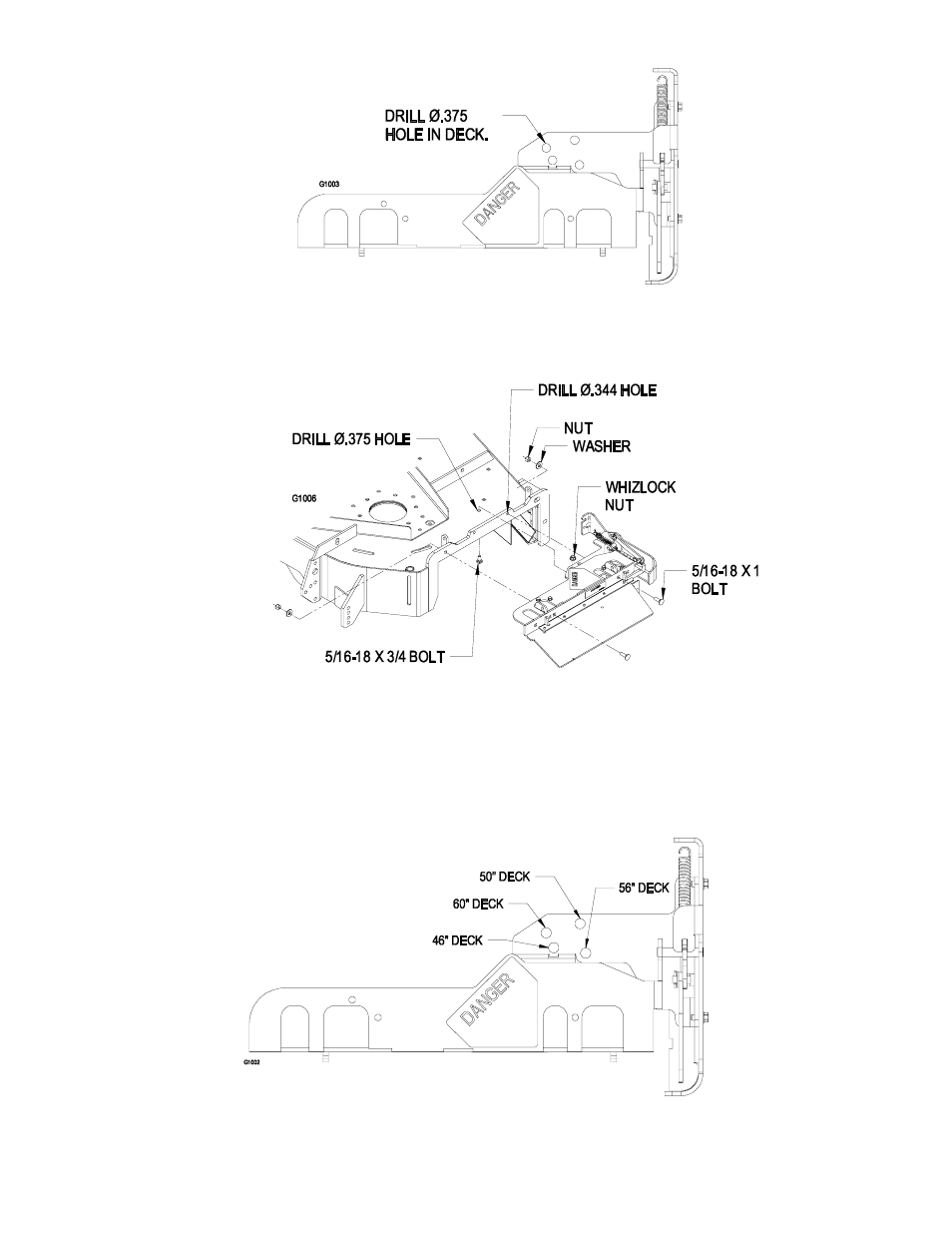

FIGURE 11B
FIGURE 11C
For 46”-60” Triton decks:
a) Locate the correct mounting hole as shown in Figure 11D. Install two 5/16-18 x
1 bolts (item 13) and fasten to the deck with washer (item 6) and nyloc nut
(item 2). Install 5/16-18 x 3/4 bolt (item 18) from the bottom of the deck, and
draw up into hole using the whizlock nut (item 7), see Figure 11E for correct
mounting hole location.
FIGURE 11D
