7

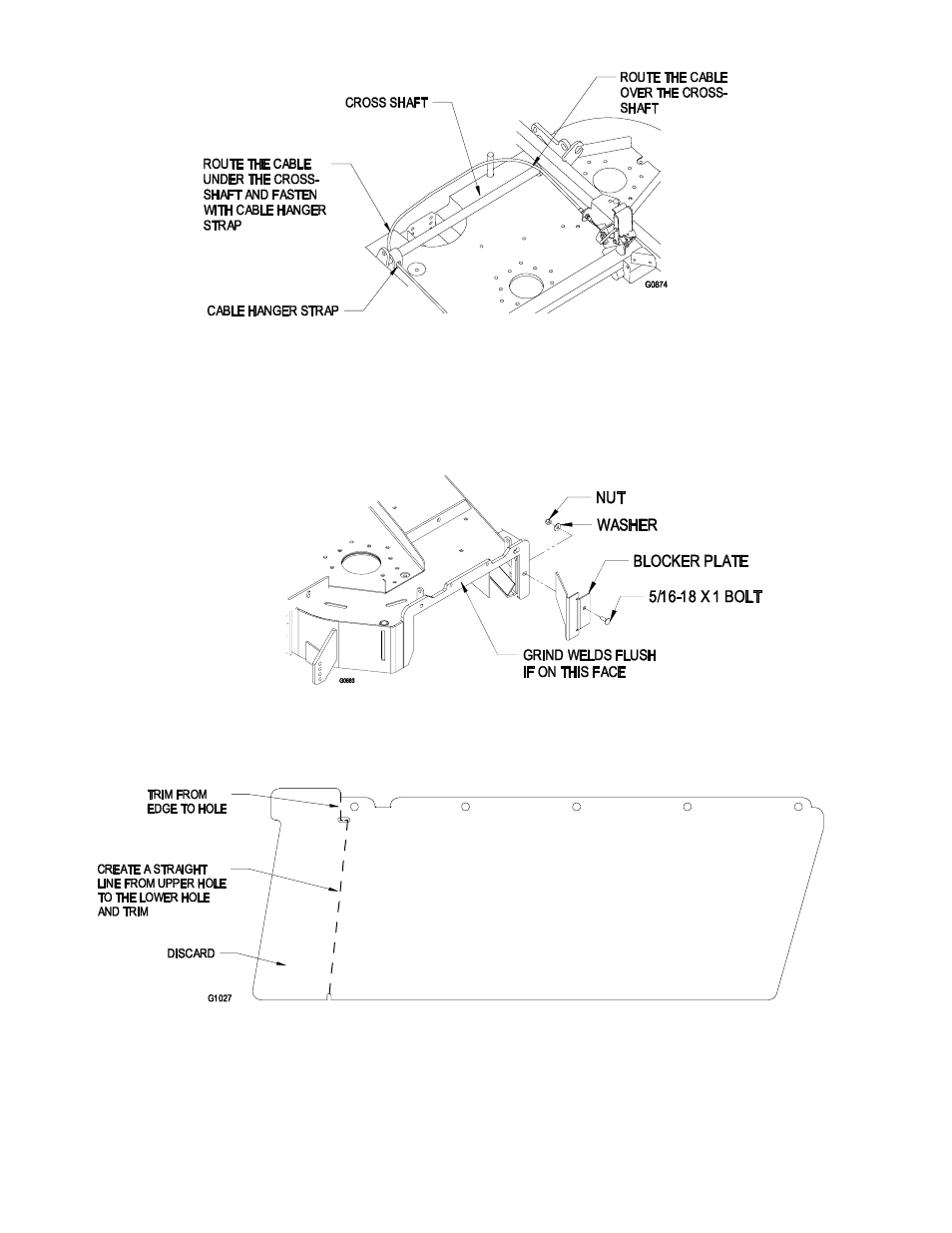

FIGURE 7
3.2.9 If there are protruding welds on the discharge opening, grind them flush.
NOTE: Any welds left protruding from the face of the discharge opening could
interfere with free operation of the discharge gate.
For Triton decks only: Install the blocker plate (item 17) as shown in Figure 8.
FIGURE 8
3.2.10 For Triton (series 5) decks 46”, 50”, & 56” and UltraCut (series 4) decks
52” & 60”, cut the discharge gate as shown in Figure 9.
FIGURE 9
