M2_1~2 : slots m.2 (touche m) – MSI MPG B760I EDGE WIFI LGA 1700 Mini-ITX Motherboard User Manual
Page 128
28

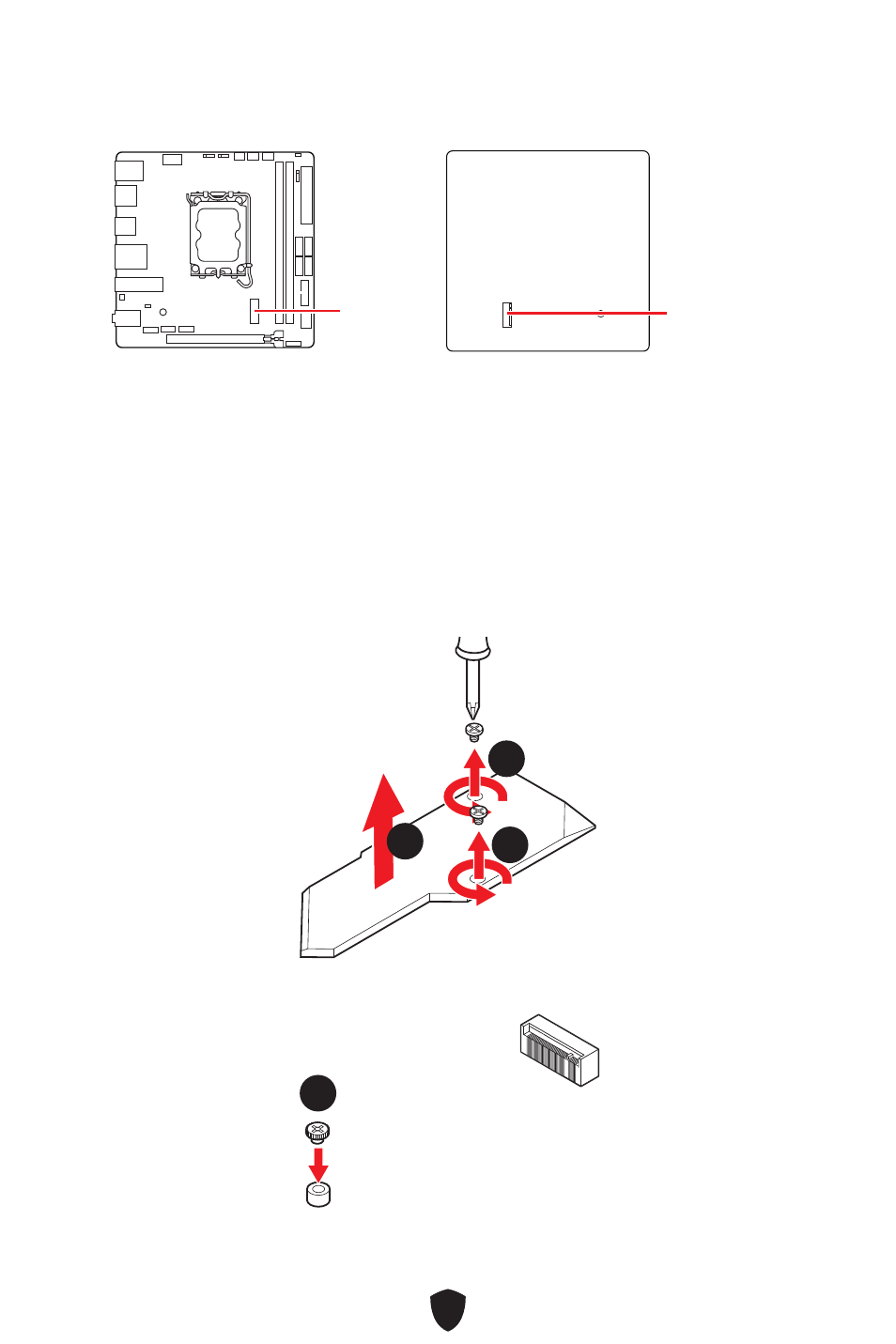

M2_1~2 : Slots M.2 (Touche M)
M2_1
⚠
Important
La technologie Intel® RST supporte uniquement un SSD M.2 PCIe avec une mémoire
ROM UEFI.
M2_2
Installation du module M.2 dans le slot M2_1
1.
Desserrez les vis de la plaque M.2 Shield Frozr.
2.
Soulevez la plaque M.2 Shield Frozr et retirez-la.
1
1
1
1
2
2
3.
Fixez l’entretoise M.2 fournie.
3
3
