2-19
2. Thread the cable through the hole in the wall mount bracket, and screw in 4 M8
nuts for mounting the bracket.

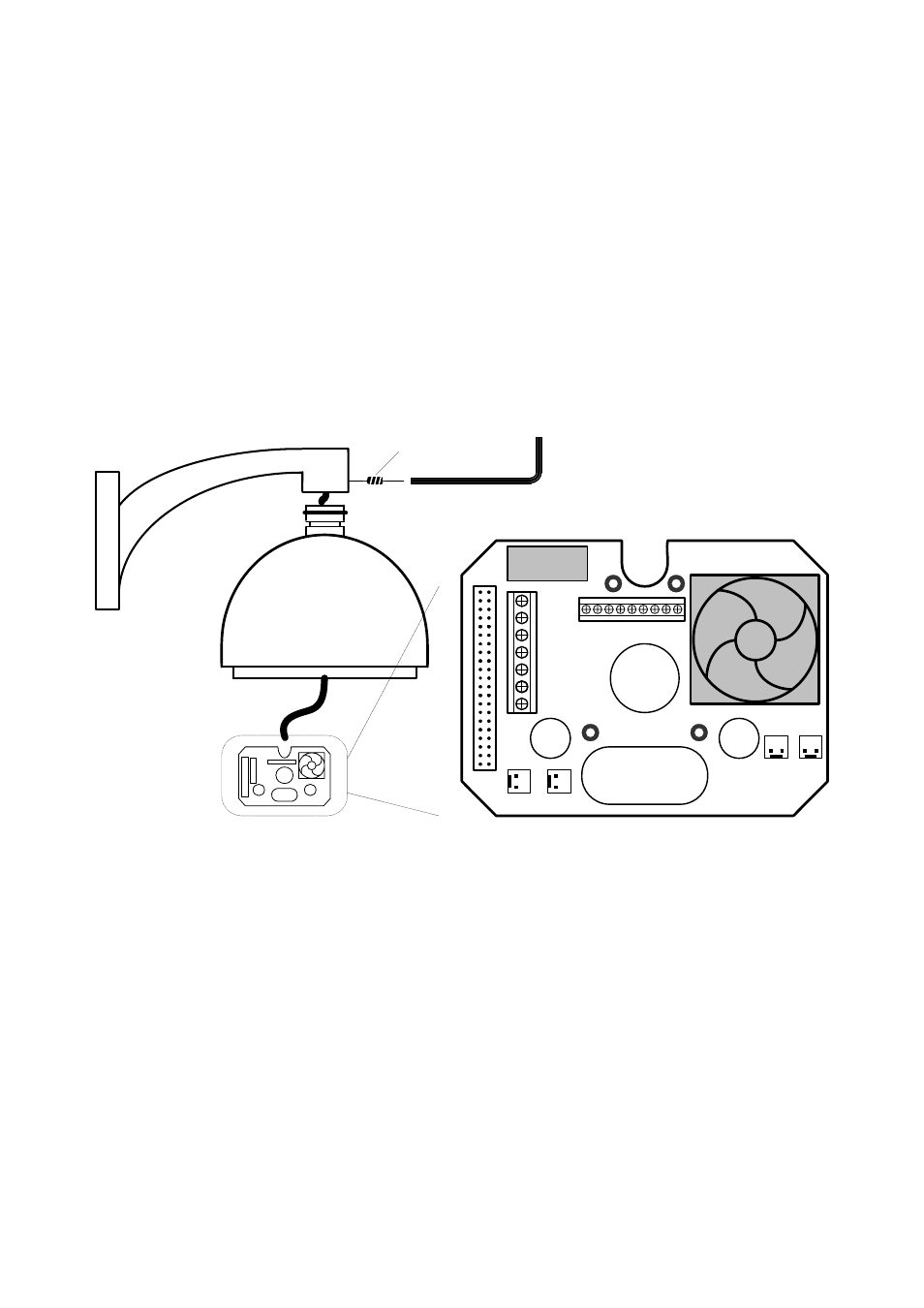

3. Take off the housing from the packing, and take off the baseboard (4 bolts on it.)
inside the housing. Thread the cable through the top of the housing. Fix the
housing on the wall mount bracket, and screw in 3 M5 bolts (Hex) on the top of the
bracket with the attached Hex Allen wrench to fix the housing.
RELAY
JP6 JP4
JP3 JP1
JP5
Video +
Video -
RS485 +
RS485 -
AC24
AC24
M5 Bolt
Hex Allen wrench
4. Connect the cable connectors to the nodes on the baseboard, and then fix the
baseboard in the housing by screwing 4 bolts on it.
Notice: Please notice the polarity of control line. The EPTZ1000 will not work if the
polarity of control line is mis-connected.
