Data transfer is carried out by observing the ACKNLG

or BUSY signals. Data

transfer to the printer occurs only after receipt of the ACKNLG signal or when the

BUSY signal is LOW.

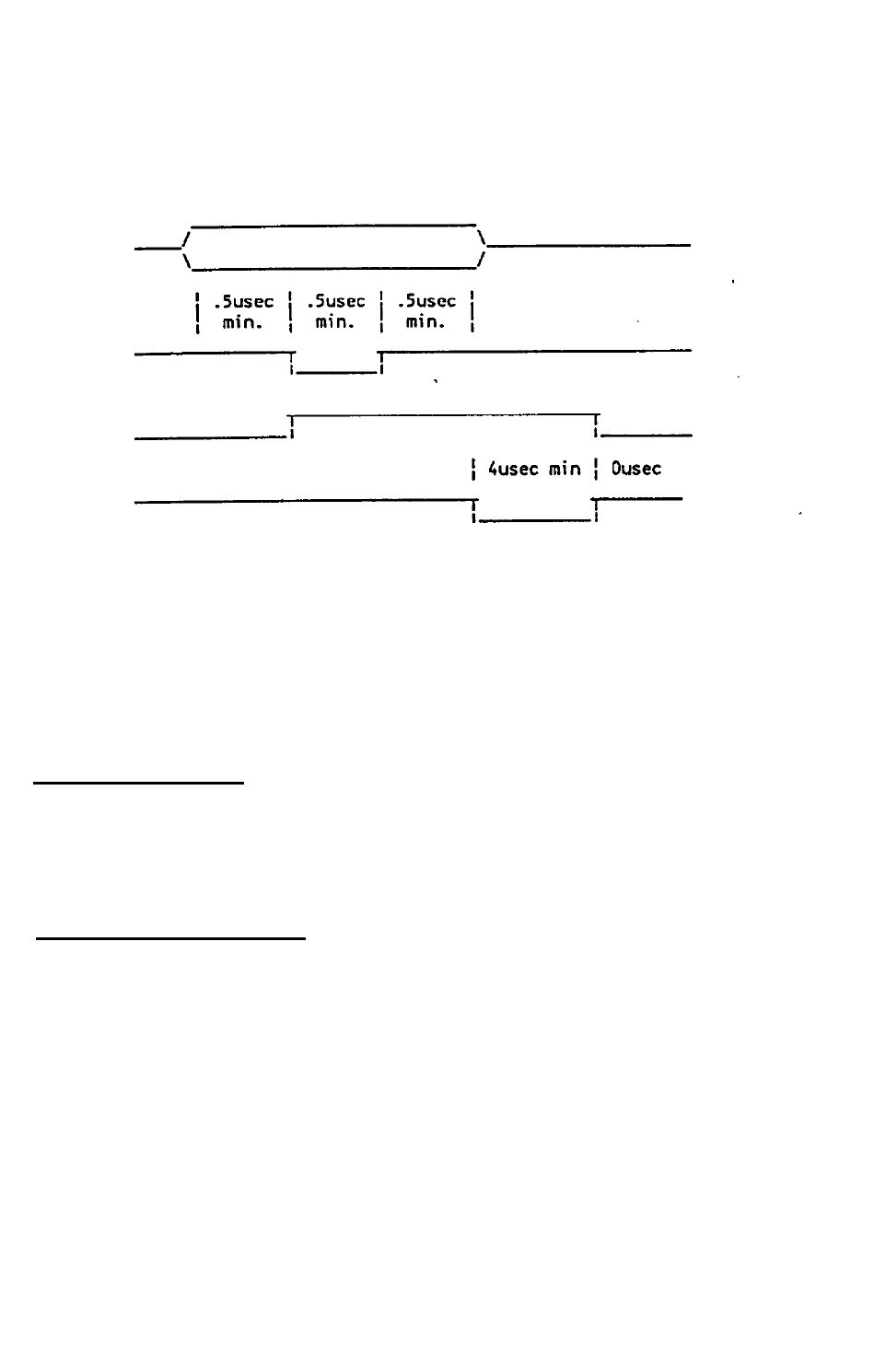

TIMING

DATA IIN

STROBE-

BUSY

ACKNLG

I-

Data must be present a minimum of 0.5 u sec before and after a minimun 0.5

µ sec STROBE Pulse. BUSY goes high before the end of the STROBE signal and

remains high until the end of an

ACKNLG

pulse of’ minimun 4 µ sec.

EBCDIC CHARACTER TABLES

PC850 character table

See Appendix A-S for an example of the PC850 character table.

Note: PC850 is the recommended

character table for matrix emulations.

HP Roman 8 character table

See Appendix A-6 for an example of the HP Roman 8 character table.

Note:

This character table is available only when HP emulation is selected

(3812 emulation).
