80
Basic operations
Video memories
This unit can be used to store still image memories (Still) and moving image memories (Clip), each in two channels.
1 channel at a time is saved in 4K mode.
p p Images with key signals can be stored in the video memories (still images and moving images).
p p The number of seconds that can be saved in the moving image memory depends on the system format.
p p The size of the images (number of seconds) which can be stored depends on the system format (frame rate).
p p The video memory data can be stored onto, and read out from, memory cards.

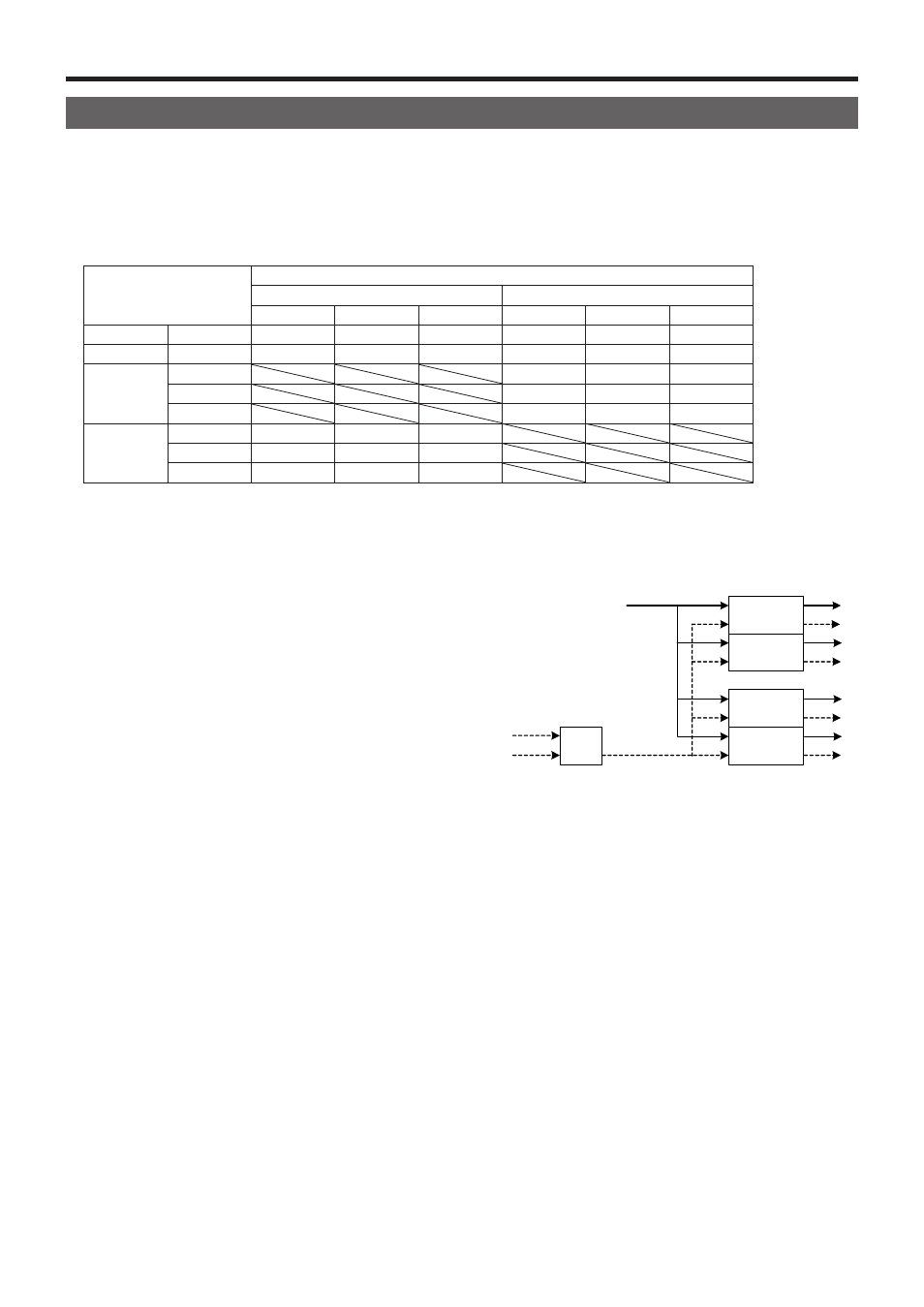

Video memory operation
Current status
Clip1 Clip2
Recording Playback Stop Recording Playback Stop
Still1 Recording —   —  
Still2 Recording —   —  
Clip1
Recording —  
Playback   
Stop   
Clip2
Recording —  
Playback   
Stop   
 : Valid
—: Invalid
w Video memory input/output
The image input materials can be selected from the output
signals of the AUX buses (AUX1 to AUX4).
Still2
Still1
Clip2
Clip1
KEYER KeyOut
Fill
Source
Key
Video
Key
Video
Input materials
AUX1 to AUX4:
Selected using the menu
