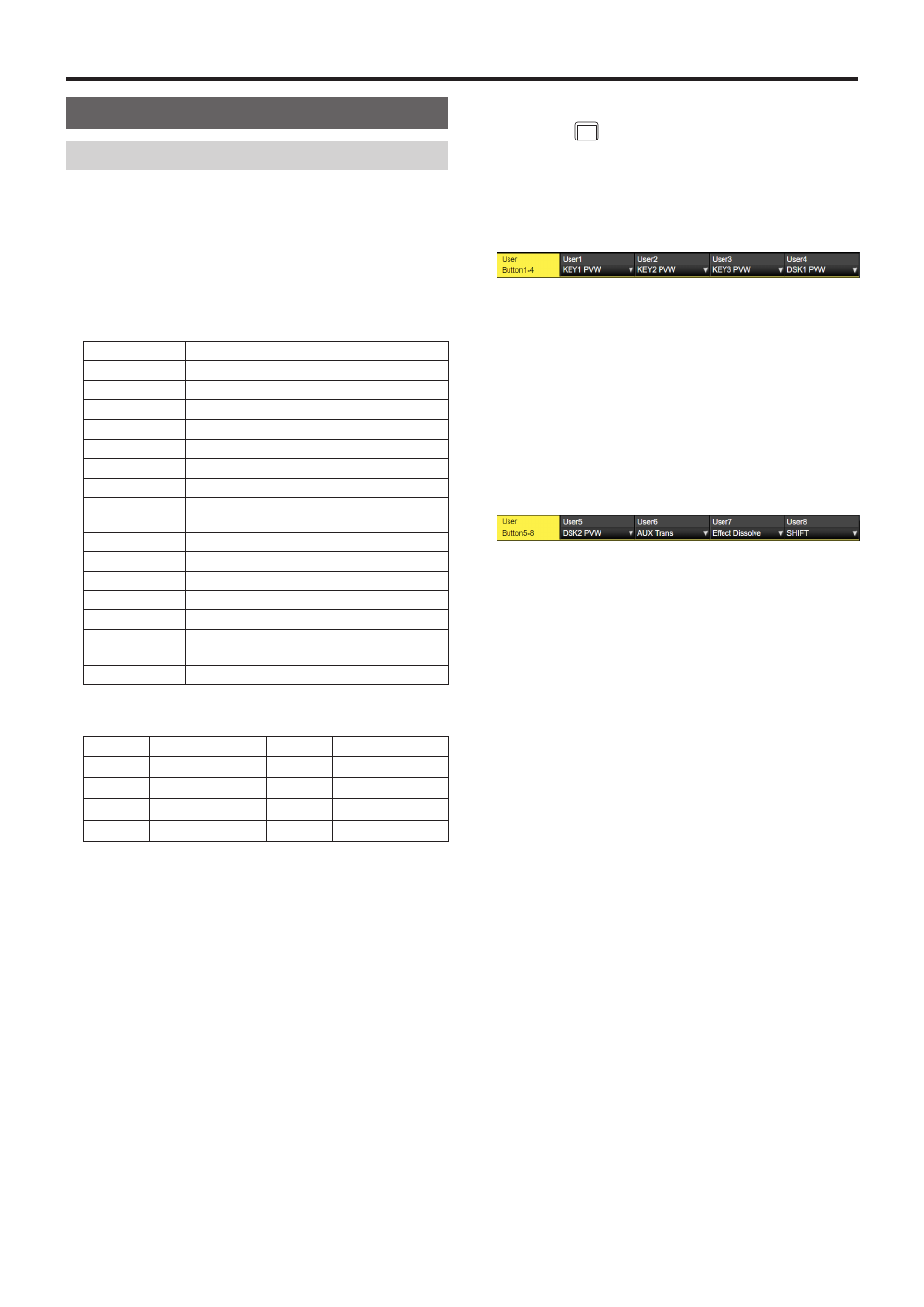

121
System settings
Button assignments
Setting the user buttons
The user can assign several functions which can be set using
the menu items into eight user buttons (U1 to U8).
The user buttons light in amber when the assigned function is
ON and are off when the assigned function is OFF.
Each time the user button is pressed, the function setting
alternates between ON and OFF.
The table below lists the functions which can be assigned to
the user buttons (U1 to U8).
Function name Description of function
KEY1 PVW Output the KEY1 image to the preview output.
KEY2 PVW Output the KEY2 image to the preview output.
KEY3 PVW Output the KEY3 image to the preview output.
DSK1 PVW Output the DSK1 image to the preview output.
DSK2 PVW Output the DSK2 image to the preview output.
GPII-EN Enables or disables GPI-In.
GPIO-EN Enables or disables GPI-Out.
SHIFT Switches all the A/B bus and AUX bus
crosspoints between front and rear.
AUX TRANS Enables or disables the AUX bus transitions.
AUX1 TRANS Enables or disables the AUX1 bus transitions.
AUX2 TRANS Enables or disables the AUX2 bus transitions.
DSK1 on AUX1 Adds DSK to the AUX1 output.
DSK2 on AUX2 Adds DSK to the AUX2 output.
Effect Dissolve Switches effect dissolve between ON and
OFF.
Dissolve Nothing is assigned.
w Default settings
Button Function name Button Function name
U1 KEY1 PVW U5 DSK2 PVW
U2 KEY2 PVW U6 AUX Trans
U3 KEY3 PVW U7 Effect Dissolve
U4 DSK1 PVW U8 SHIFT
1 Press the CONF
SYS
button to light its indicator, and display
the Config menu.
2 Use [F1] to display the User Button1 sub menu and
User Button2 sub menu.
p User Button1 to 4 sub menu
3 Use [F2] to select the function to be assigned to the
[U1] button using the User1 item.
4 Use [F3] to select the function to be assigned to the
[U2] button using the User2 item.
5 Use [F4] to select the function to be assigned to the
[U3] button using the User3 item.
6 Use [F5] to select the function to be assigned to the
[U4] button using the User4 item.
p User Button5 to 8 sub menu
7 Use [F2] to select the function to be assigned to the
[U5] button using the User5 item.
8 Use [F3] to select the function to be assigned to the
[U6] button using the User6 item.
9 Use [F4] to select the function to be assigned to the
[U7] button using the User7 item.
 Use [F5] to select the function to be assigned to the
[U8] button using the User8 item.
