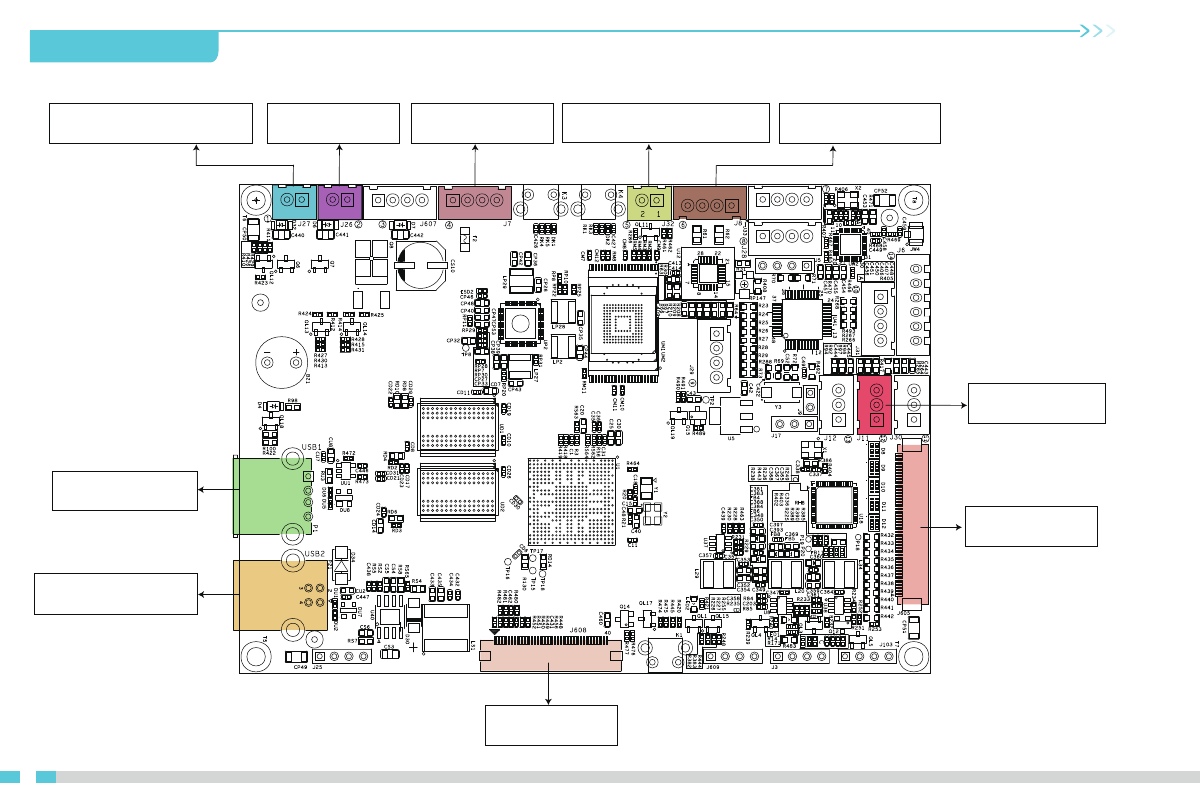

15. Circuit Wiring

13

Z-Axis Motor Drive Port

Light Board Power Supply Port

DC Power Input Port

Exhaust Fan Port

Light Board Cooling Fan Port

USB Drive Print Port

Spare Firmware Update

Port

RGB Screen Port

Z-Axis Limit Switch

Print Screen Port

Note: Do not use this port. This

port is used for debugging by the

manufacturer.
