76

5.

Select

On

and press

Enter

.

6.

Select the

Select Color

setting and choose one of the following:

•

R

to adjust the red color convergence.

•

B

to adjust the blue color convergence.

7.

Select the

Pattern Color

setting and press

Enter

.

8.

Select

Start Adjustments

and press

Enter

.

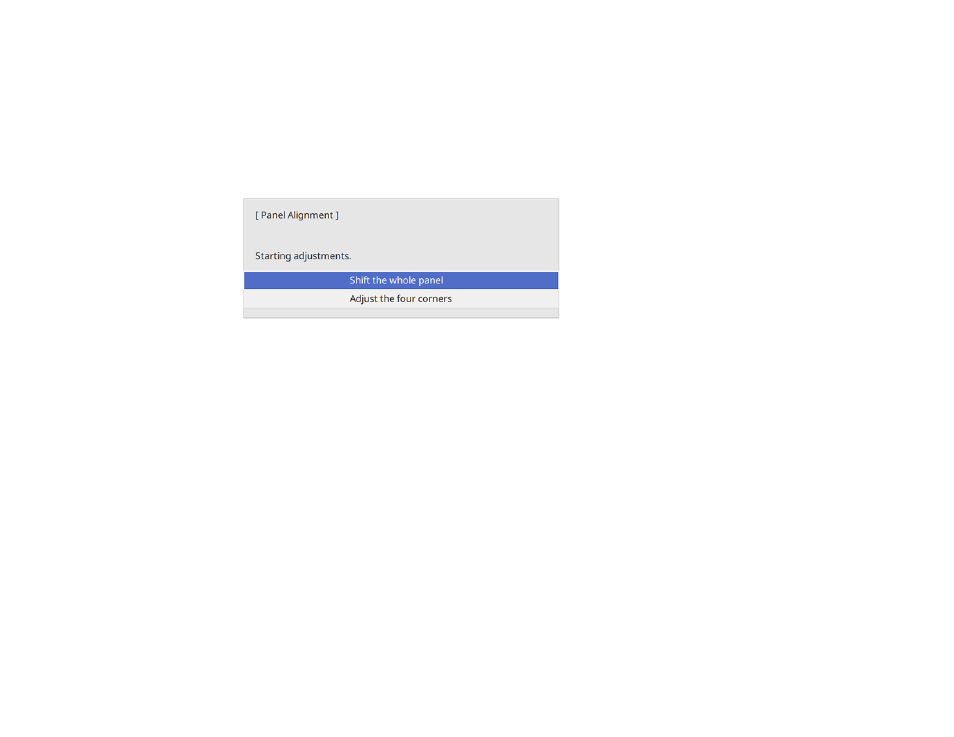

9.

Select one of the following:

• Select

Shift the whole panel

to adjust the whole panel at the same time. (This is not

recommended, as usually only certain areas of the panel need to be adjusted.) Go to the next
step.

• Select

Adjust the four corners

to adjust the corners of the panel one at a time. (This is

recommended in most cases.) Skip to step 14.

10. Press

Enter

.
