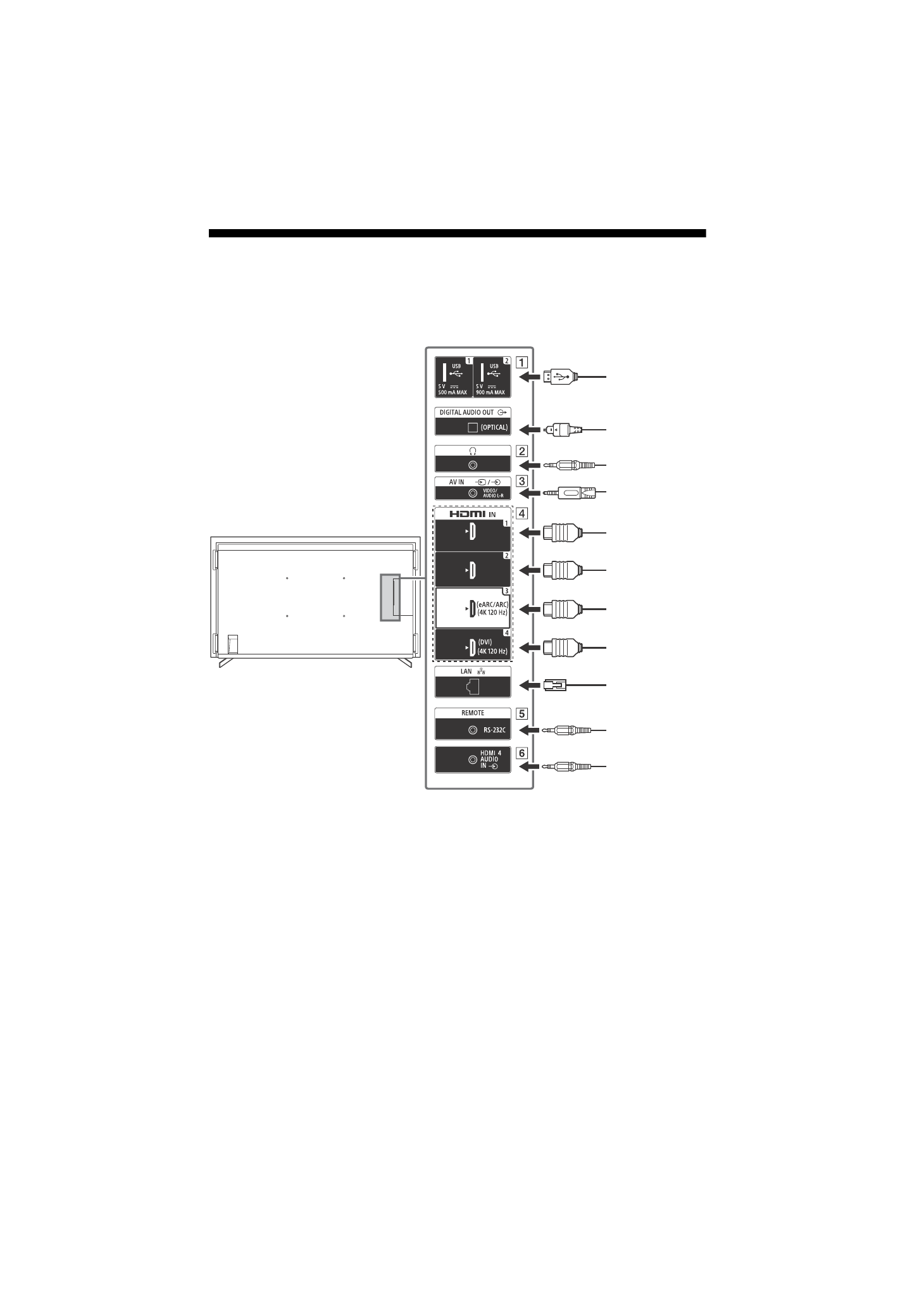

Connection Diagram
Note
• Terminals and labels may vary depending on region/country/LCD Display model.
FW-100BZ40J / 50BZ35J / 43BZ35J
USB storage
media/Keyboard/
Mouse etc.
VCR/Video game
equipment/DVD
player/Camcorder
Headphone
HDMI Device/PC
Audio System
with eARC/ARC/
HDMI Device
DVI-HDMI
Adapter/HDMI
Device/PC
Router
Home Controller
DVI-Audio Out
HDMI Device/PC
Audio System
with Optical
Audio Input
