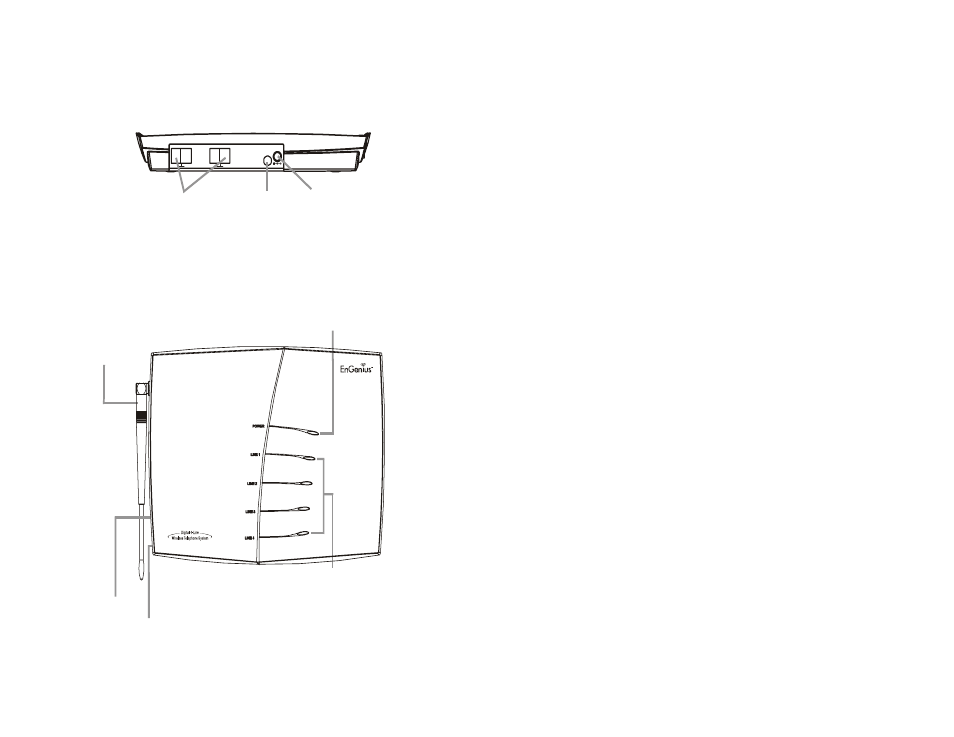

Base Illustration

Base Features

1. Antenna

3. Line Status LED's

4. Power LED

AUDIO

DC IN

5. Line in

2. Audio in 6. DC in

7. REG Button

8. Reset Button

Basic Base Station Features

1. Antenna

a. The antenna port has a reverse thread connector; to

remove antenna or cable, turn clockwise; to install, turn
counterclockwise. Improper installation may damage the
connector

b. When using an outdoor antenna, locate the antenna (not

the base station itself) as high as possible for a clear
transmission path.

2. LED

a. Power: it indicates base station has power.

b. In-Use: it indicates an active telephone line.

3. Reset Button

a. Restores base station to factory settings

b. Reset button is indented to prevent accidental system

reset.

c. All handsets (including administrator) and additional

base(s) need to be re-registered after a base station reset.

4. Registration Key (REG)

Enters registration mode along with handset, assigns handset
ID (10-99).

5. L1 – L4

Standard RJ-11C/CA-11A connector to plug in the telephone
line

6. Audio-in Jack (3.5mm)

7. DC In: to plug in the power adaptor
