- 9 -
LSICVM02 Kit Quick Installation Guide
May 2014 Installing the LSICVM02 Kit
Connecting the CVFM04 Module to the Remote CVPM02 Module
Connecting the CVFM04 Module to the Remote CVPM02 Module
Follow these steps to connect the CVFM04 module on your MegaRAID SAS 9361 RAID controller by cable to the
remote CVPM02 module.
1. Place the controller on a flat, clean, static-free surface.
2. Ground yourself, and make sure that the system is grounded.
3. Remove the cable that is included in the LSICVM02 kit box.
The cable has a 9-pin connector on one end and a 6-pin connector on the other.
4. Insert the 9-pin connector on the cable into the 9-pin J1 connector on the CVFM04 module, as shown in the
following figure.
5. Insert the 6-pin connector into the 6-pin connector on the cable from the remote CVPM02 module.
Align the cable connectors to make sure that they are connected correctly.

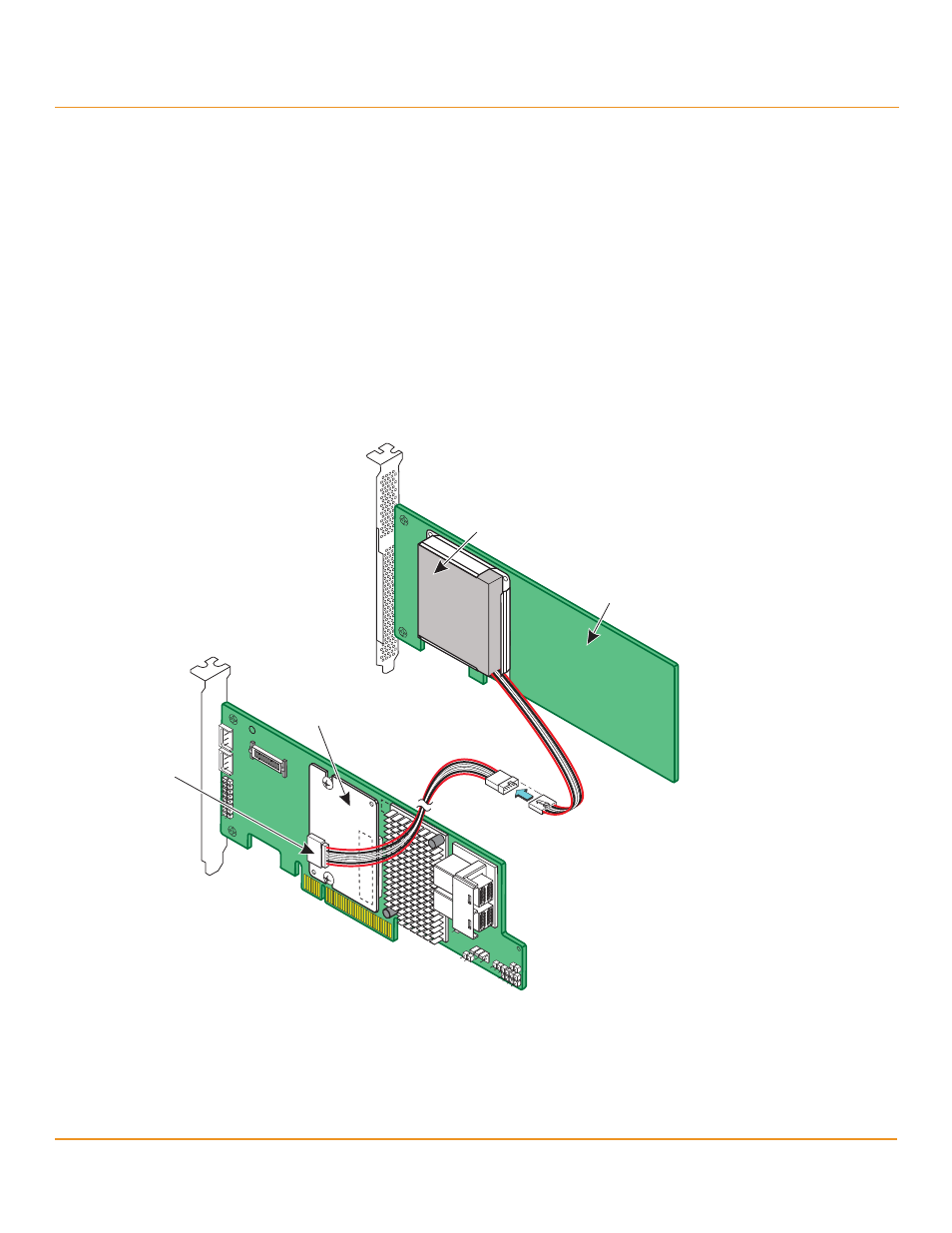

Figure 6 Connecting the CVFM04 Module by Cable to the Remote CVPM02 Module
3_01657-04
J1
CacheVault
Flash Module 04
(CVFM04)
CacheVault
Power Module 02
(CVPM02)
Remote Mount
Board
