C2RPS-POE Redundant Power Supply Output Connector
A-2 Specifications
C2RPS-POE Redundant Power Supply Output Connector
For pin location and function, refer to
and
, respectively.

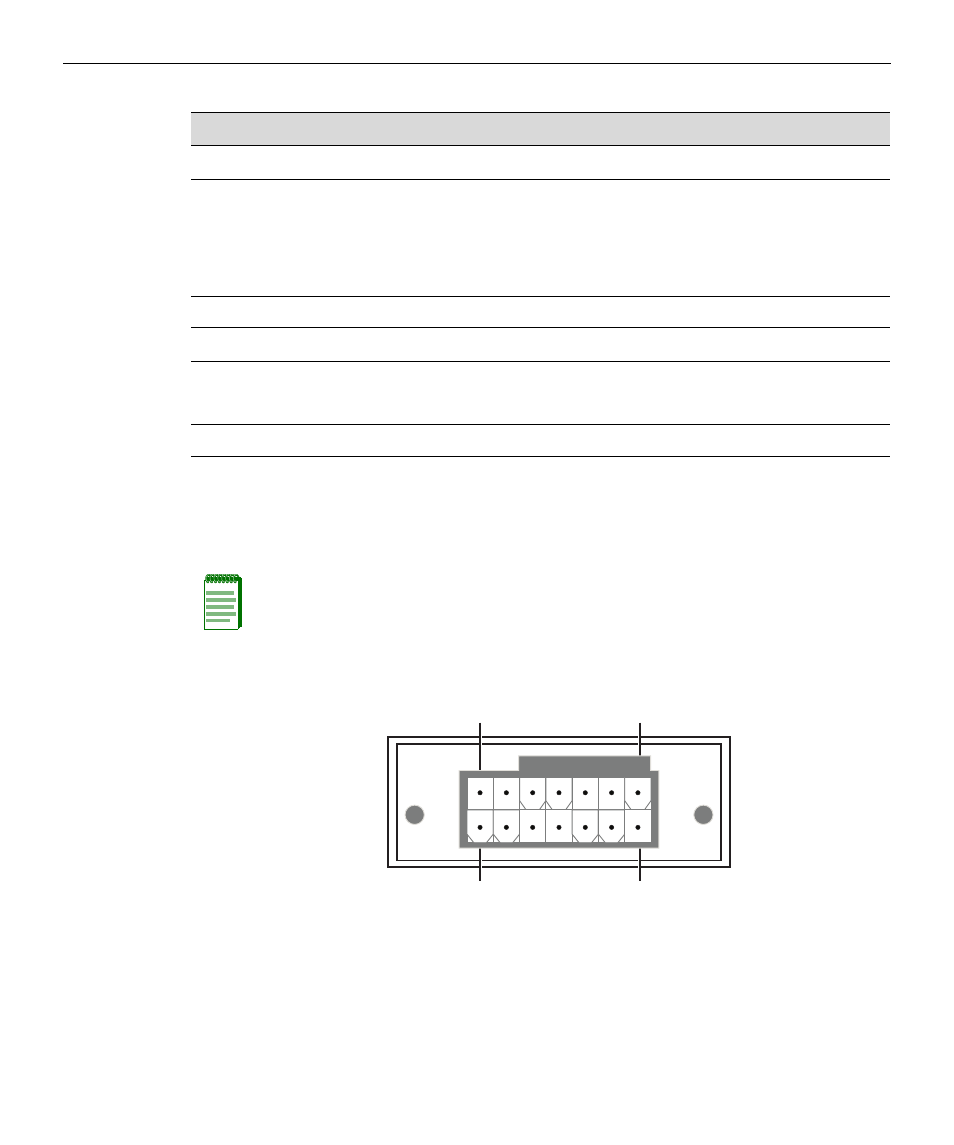

Figure A-1 C2RPS-POE Redundant Power Supply Connector Pin Locations
Physical
Dimensions
4.45 H x 44.5 W x 16.5 D (cm)
1.75 H x 17.5 W x 6.5 D (in.)
Net Weight (unit only)
Gross Weight (1 unit and packaging)
3.47 kg (7.63 lb)
4.95 kg (10.89 lb)
MTBF
589,644 Hours at 25°C (77°F)
Environmental
Operating Temperature
5°C to 40°C (41°F to 104°F)
Storage Temperature
-30°C to 73°C (-22°F to 164°F)
Operating Relative Humidity
10% to 90%
Table A-1 C2RPS-POE
Specifications (continued)
Item
Specification
Note: The following information is for troubleshooting purposes only. For proper operation,
do not use any other cable except the C2RPS-POE Cable. This cable is specially
designed for this application and meets all necessary Regulatory and Safety standards.
The use of non-approved cables will void your warranty.
1
7
8
14
